AddSecure IRIS-4 Technical Reference Manual page 20

Power up
4.2.5.1 Using the terminal touchscreen
If you are going to use the touchscreen on the terminal, power up the terminal.

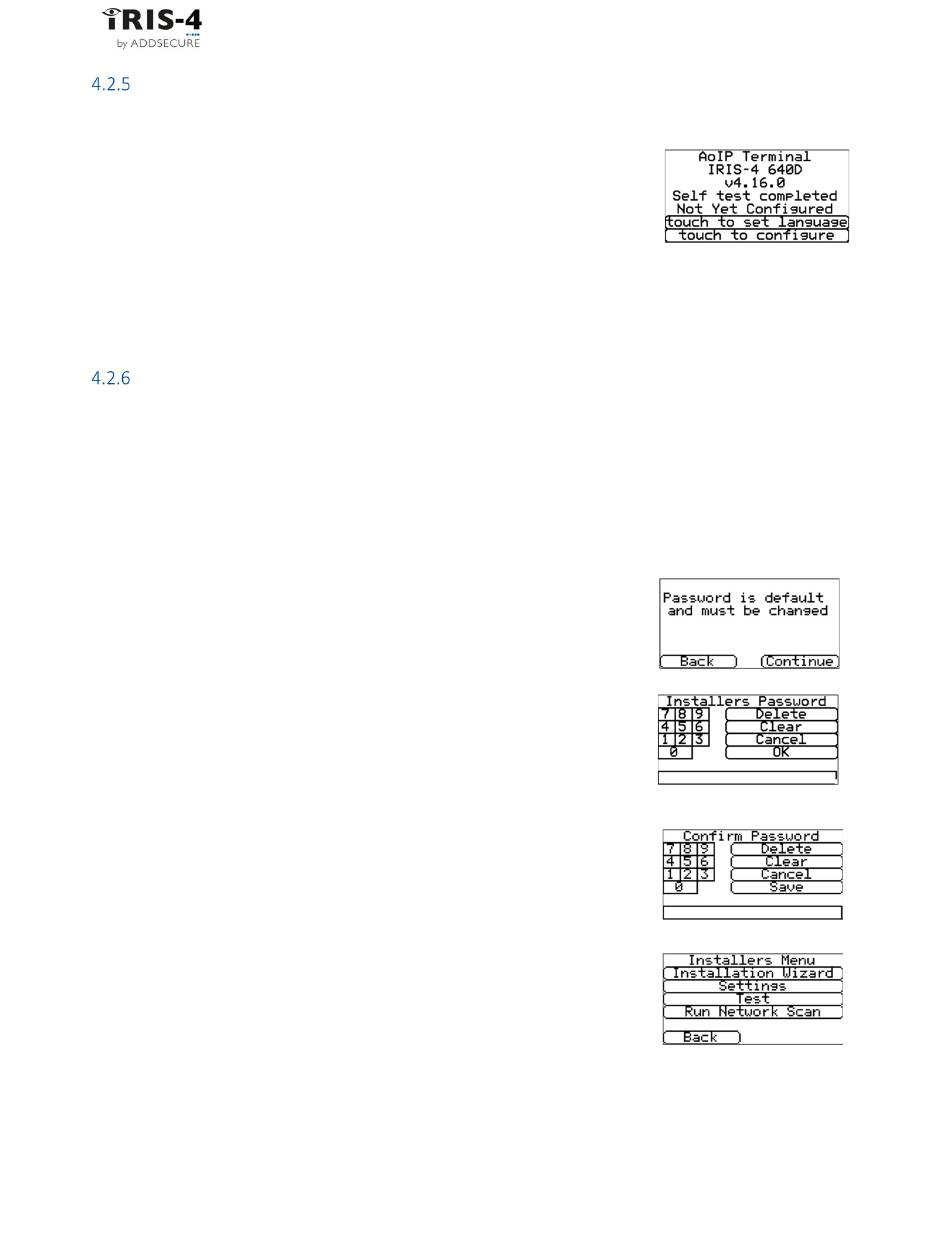

This screen will be displayed.
If the terminal has a physical touchscreen, it is supplied with a stylus intended
to be used with the screen.
4.2.5.2 Using the virtual touchscreen
Alternatively, and for terminals without a physical touchscreen, once the terminal is powered up, you can
access the terminal's 'virtual' touchscreen on a PC using the IRIS Toolbox software. For details on how to set
up the toolbox, see "Appendix 1: Setting up the IRIS Toolbox".
Welcome menus
4.2.6.1 Language selection
English is the default language.
To change the touchscreen language, click <<touch to set language>, and select your desired language.
4.2.6.2 Installer's password
Click <<touch to configure>> and then you will need to set your own password to comply with EN50136-2.
Follow the procedure below:
1 Enter the default password, "111111", and click «OK».
2 Click «Continue» to enter your own password.
3 Now enter your own password, 6 to 12 digits, then click «OK».
4 Re-enter the new password to confirm it, then
recomended that you store this password separately in a safe
place.
5 The Installers Menu will then be displayed.
For the next and any following times you select "Installers Menu" from the Welcome screen, simply enter
your password and click «OK».
page 20
click «Save».
IRIS-4 Technical Reference Manual 20/03/2025
It is
