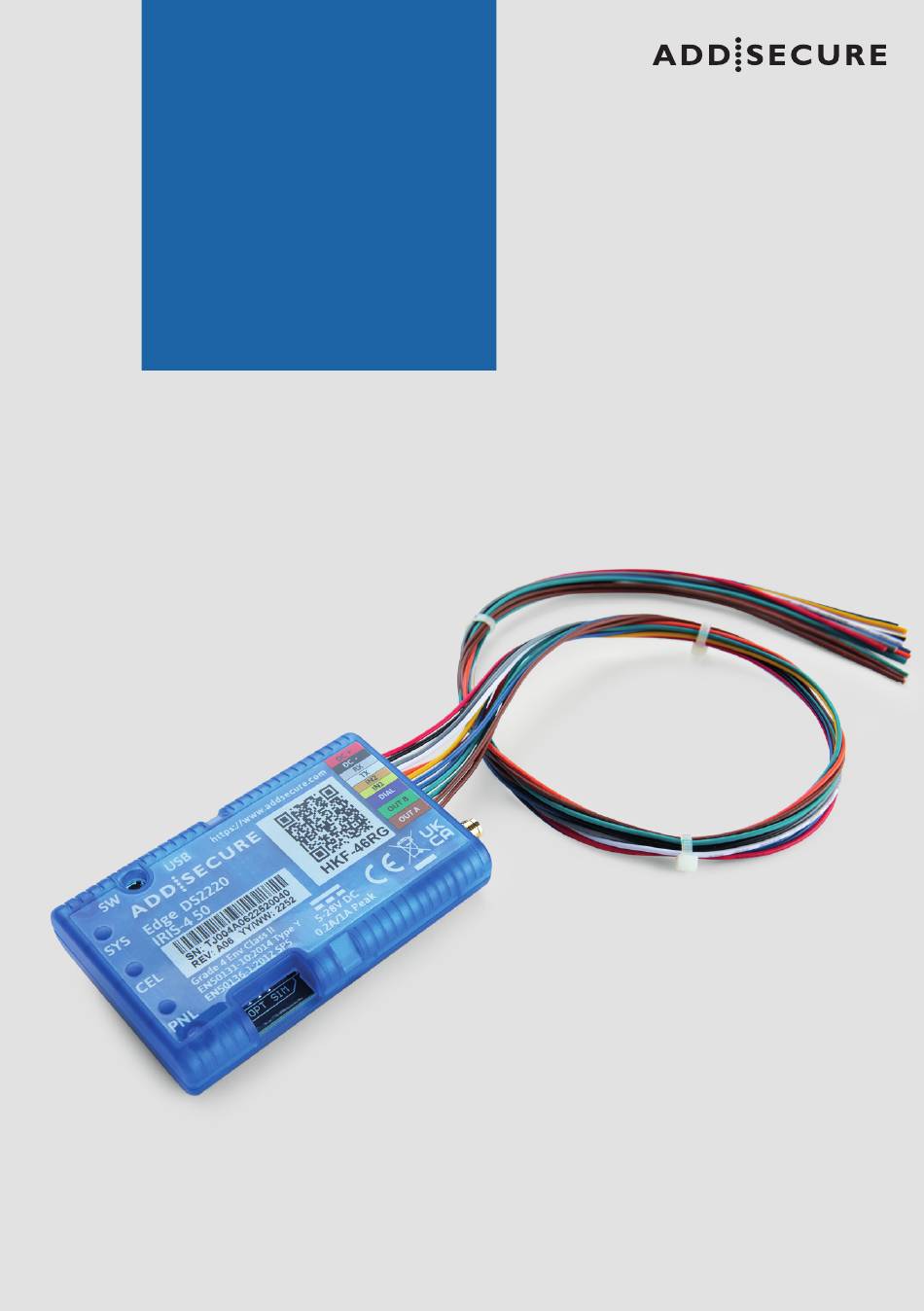

- Page 1 AIRBORNE IRIS-4 50 DC MEDIUM Quick Installation and Hurtigmanual/ Maintenance Guide Snabbguide...
-
Page 2: Package Contents
IRIS-4 50 Quick Installation and Maintenance Guide 1. PACKAGE CONTENTS 2. TERMINAL LAYOUT • Terminal ① = Signal strength/default button • Cable harness loom ② = USB micro connector • Cellular T-bar antenna (2.5m long) ③ = Cable harness loom, •... -
Page 3: Product Features
4. BEFORE YOU START The terminal must have its cellular subscription activated, prior to installation, by going to www.addsecure.com/activate, and using the Terminal Activation Code (TAC), which is found on the terminal and the packaging. Make sure that the monitoring centre (ARC) to which the terminal will send alarm signals is equipped with the appropriate IRIS Secure Apps receiving system. -
Page 4: Installation
IRIS-4 50 Quick Installation and Maintenance Guide 6. INSTALLATION 6.4 Connecting to the alarm panel Dial capture If the dial capture interface (PSTN emulation) is to 6.1 Cable harness attachment be used, connect this to the existing PSTN dialer in- Connect the cable harness to the terminal, by lining terface of the alarm panel. -
Page 5: Maintenance
6.5 Configuring the terminal Connecting power The power provided to the terminal via the cable The terminal can be configured using the IRIS connection should be DC (see specification section) Toolbox software application on a PC connected to and battery backed from the alarm panel. Once the terminal with a USB cable. -
Page 6: Specifications
IRIS-4 50 Quick Installation and Maintenance Guide 7. SPECIFICATIONS Transmission paths Edge DS2220 / IRIS-4 50 Cellular LTE (4G) Cat1 B28A(700MHz), B20(800MHz), B8(900MHz) B3(1800 MHz), B1(2100MHz), B7(2600MHz) UMTS (3G) B8(900MHz), B3(1800MHz), B1(2100 MHz) GPRS (2G) B8(900MHz), B3(1800MHz) Connection SMA socket for antenna... - Page 7 (Alarm transmission) Alarm protocols SIA (level 1 to 3) reference SIA DC-03-1990.01(R2003.10) Contact ID reference SIA DC-05-1999.09 FF (Scancom) Robofon (dial capture only) Telim (dial capture only) CESA (dial capture only) Tamper detection Dial capture interface (when external to alarm panel Serial Interface enclosure and configured accordingly)
- Page 8 The information contained is supplied without liability for any errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and foregoing restriction on reproduction and use extend to all media in which the information may be embedded. © 2023 AddSecure EN50131, EN50136 The terminal is compliant with the requirements of European Standards: EN 50131-1: 2006+A2:2017 &...
