6.
Configure the interaction between the handheld and printer. Do the following:
a.
In the Devices tab, click the printer name and then in the context menu, click Edit.
b.
In the Partnership Settings form, select Serial Port as shown on Figure 22 and then click Save.
c.
Go to the COM Ports tab and click New Outgoing Port as shown on Figure 23.
© Petrosoft LLC. All rights reserved. Confidentiality level – Internal use

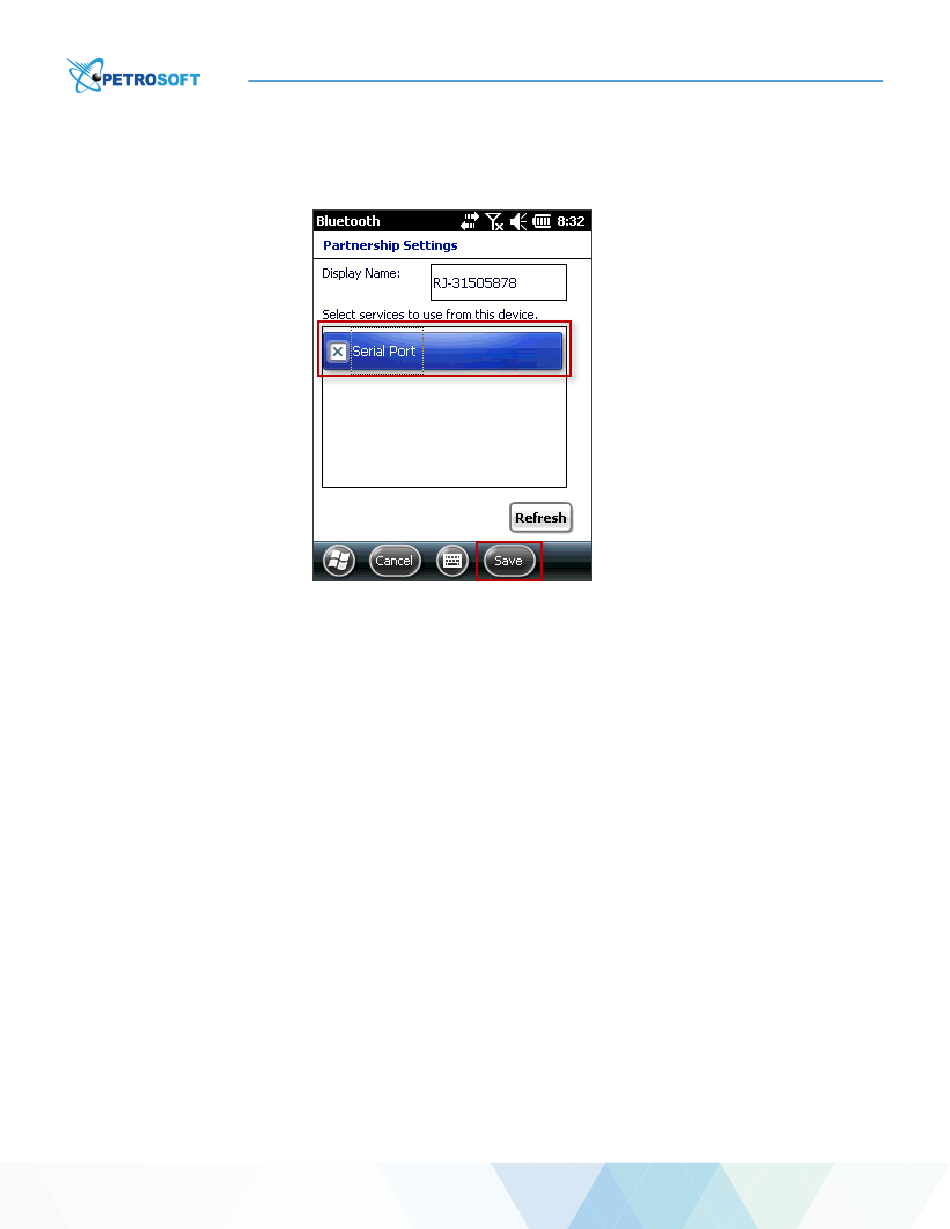

FIGURE 22 Selecting serial port
CIPHERLAB 9700 WITH MOBILE ASSISTANT APPLICATION
/ Version 1.1
22
