e. In the list of available Bluetooth Devices, click the printer name.
f. In the Passcode field, enter the printer's PIN code and then click Next.
In our example (see Figure 20) the printer's PIN code equals to 5878.
g. Make sure the pairing succeeds. Check the following data as shown on Figure 21:
The corresponding message is displayed on the handheld's screen after entering the PIN code
•
and clicking Next.
The printer is displayed in the list of connected devices.
•
© Petrosoft LLC. All rights reserved. Confidentiality level – Internal use

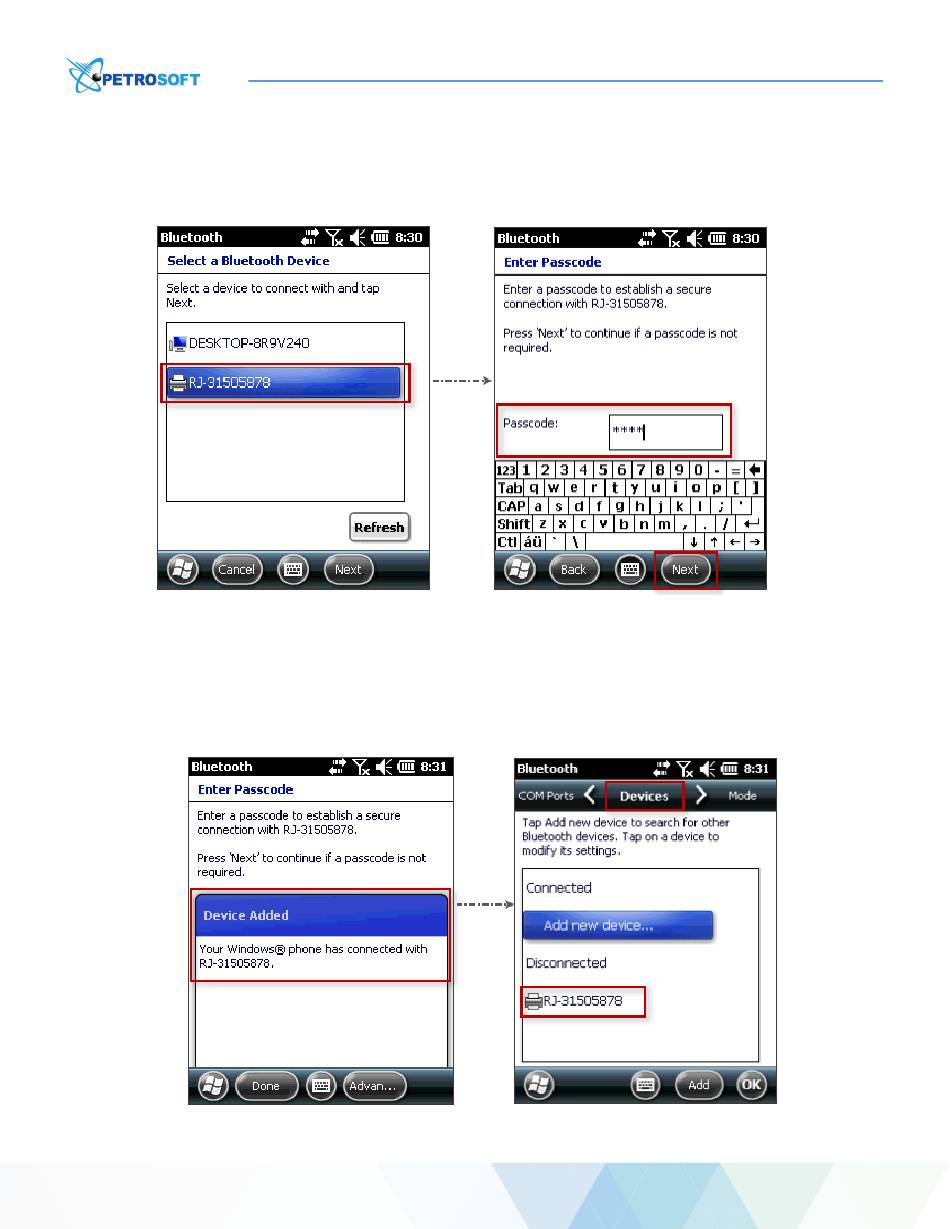

FIGURE 20 Entering passcode
FIGURE 21 Successful pairing
