CipherLab 9700 User Manual page 12

3. Select the name of your network and then click Configure.
4. On the SCU dialog window, click Yes to create a new profile.
5. Enter the profile name and then click OK.
6. Find the string with the Passphrase value in the Property column, specify the password for your Wi-Fi
network in the Value column, and then click Commit.
7. Click OK at the right bottom corner.
8. In the Active Profile list, select the name of newly created profile.
© Petrosoft LLC. All rights reserved. Confidentiality level – Internal use

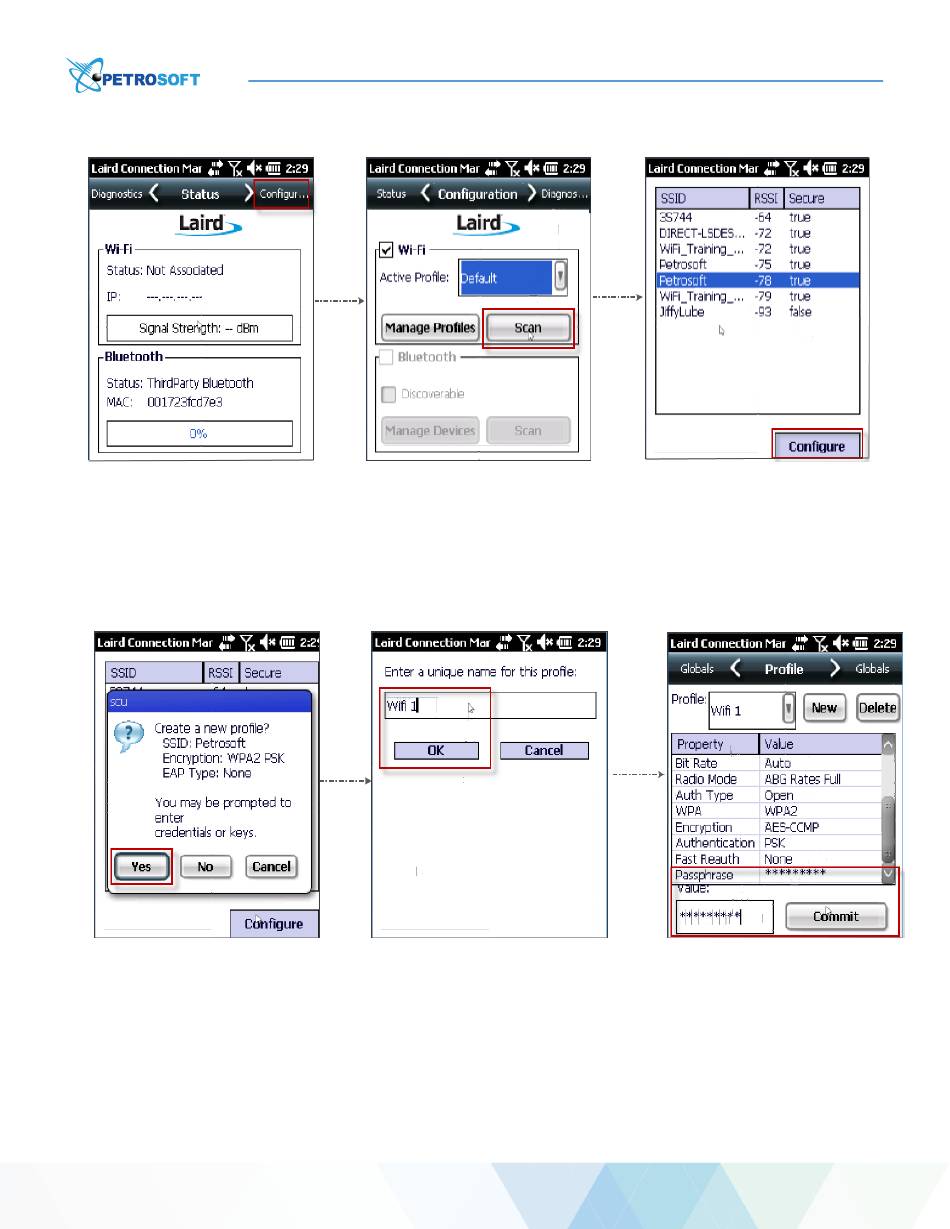

FIGURE 5 Selecting the network for configuring
FIGURE 6 Configuring the network
CIPHERLAB 9700 WITH MOBILE ASSISTANT APPLICATION
/ Version 1.1
12
