Commend WS 311V CM DA Manual page 2

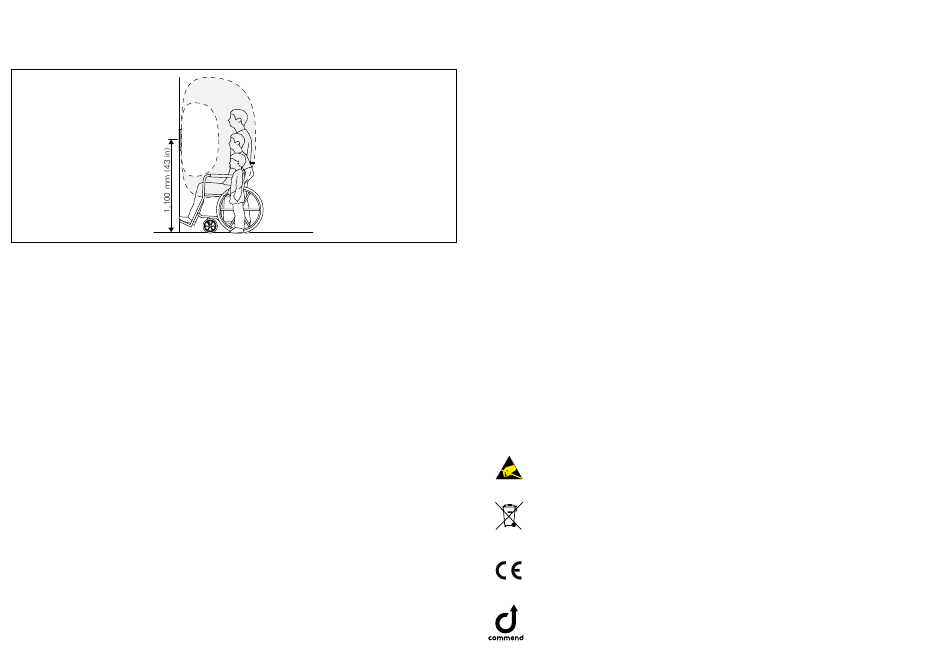

Recommended mounting height of the induction loop
With a mounting height of approx. 1,100 mm (43 in), AFIL signals are ideally transmitted for children,
wheelchair users and standing adults. A distance of approx. 500 mm (20 in; arm's length) is recom-
mended between the Intercom station and the inductive hearing aid. If required, adjust the mounting
height to the respective requirements and local regulations.
signal strength
Recommended mounting height of operating elements
For barrier-free operation, operating elements should be mounted with enough space to walls and
corners. Operating elements such as call buttons should be installed between 800 mm and 1,000 mm
above­the­finished­floor.­For­ideal­use­by­children,­wheelchair­users­and­standing­adults,­it­may­be­nec-
essary to install two Intercom stations above each other or to use additional remote button modules
or­induction­loop­amplifier­modules.­If­required,­adjust­the­mounting­height­to­the­respective­require-
ments and local regulations.
Optimum
Mounting instructions
• Do not expose the Intercom station to extreme temperatures (see "Technical data" on TE | 1).
• This­Intercom­station­shall­be­installed­or­replaced­by­trained­and­­ q ualified­personnel­only.
• Do not install the Intercom station on unstable walls or on surfaces, which cannot support the
device's weight.
• Observe­the­country-specific­standards­for­installation,­mounting­and­configuration.
• Observe the precautions for handling of electrostatic sensitive devices.
• Only use recommended tools when installing the Intercom station.
• Only­accessories­that­comply­with­the­Intercom­station's­technical­specifications­shall­be­used.
• Use shielded Ethernet cables only.
• All­connected­circuits­shall­fulfil­the­following­requirements:
• Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/EN 60950-1 or
• ES1, PS2 circuits and Annex Q (Limited Power Source) according to IEC/EN/UL 62368-1.
• Before using the Intercom station, ensure all cables are correctly connected and not damaged.
• Disconnect the Ethernet cable for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do­not­make­any­unauthorised­modifications­to­the­Intercom­station.­
• The­requirements­of­the­standard­IEC­60118-4­are­met­by­the­installation­at­the­specified­height­and­
at the correct distance from a single person when properly commissioned.
• Metal­structures­significantly­affect­the­performance­of­the­induction­loop­system.­ T he­magnetic­
field­generated­by­an­induction­loop­system­induces­a­current­in­surrounding­metal­structures,­
which­weakens­the­magnetic­field­and­may­cause­losses.­Examples­of­metal­structures:
• Reinforced concrete
• Beams, girders, constructions made of metal
• Metal facade cladding and walls
• Metal box constructions (escalator, lift)
• For­flush­mounting,­a­flush­mount­kit­WSFB­50V­is­required­(available­separately).
• For surface mounting, a surface mount kit WSSH 50V is required (available separately).
• Optionally, the rain protection roof WSRR 50V is available.
• If­the­Intercom­station­is­installed­in­a­third-party­column,­ensure­sufficient­air­circulation­to­prevent­
condensation and extreme heat generation (e.g. by means of ventilation slots at the top and bottom
of the column). It is recommended to use ventilation grilles with small animal protection.
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This­device­complies­with­the­European­directives­listed­below­by­fulfilling­­ c orresponding­
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For­technical­specifications,­see­the­respective­data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-WS311VCMD, Version: 1.4/0922 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
