Intercom station with induction loop WS 211V D DA

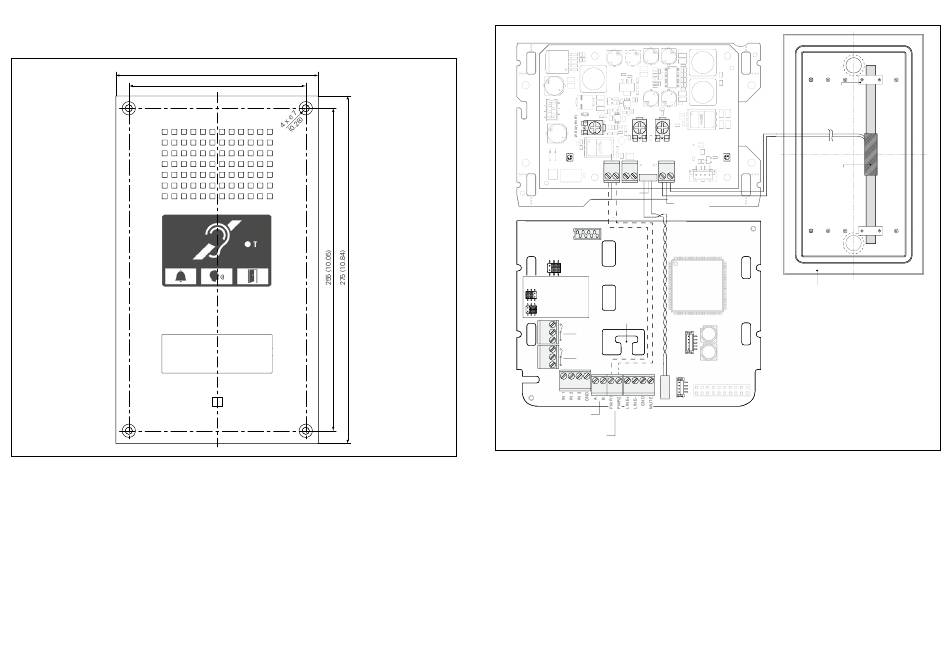

Dimensions
Front panel thickness: 3 mm (0.12 in)/Measuring units in mm (in), not to scale!
Note:
It is mandatory to install the induction loop on the right side of the housing, as shown in the connec-
tion diagram. Otherwise disturbing hum may occur. For the installation use the attached mounting
clips and screws (in extent of supply).
160 (6.3)
140 (5.5)
Connection diagram
BAD-
BAD-
MARK
MARK
BMK1
BMK1
Loop
MLC
Current
LED "Power"
+
- -
+
- -
1
1
BOC1
BOC1
1
1
C
C
O
O
B
B
External power supply
LINE IN
Output
15 VDC – 26 VDC
Induction loop
Expansion jack
for EB2E2AHE
Jumper
Power supply:
External
power supply
Power supply
from Intercom Server
for fixing
cable straps
OUT 1
OUT 1
OUT 2
OUT 2
Subscriber
Intercom Server (A,B)
External power supply
15 VDC – 26V DC
Installation:
• Carry out the connection of the induction loop, Intercom Server and power supply
• Connect the loop cable (polarity does not matter) via the screw terminal as shown in the follow-
ing picture.
• Connect power supply (15 VDC to 26 VDC) as shown in the following picture.
Note: If an external power supply is used for the station, it is possible to use this power supply
also for the induction loop amplifier module.
• Switch on the external power supply and check if the green "Power" LED illuminates!
• The potentiometers "Level-Input" , "MLC" and "Loop Current" are preset at factory delivery.
• Test the system performance with a loop receiver or a field strength meter. Adjust the power if nec-
essary. Consider the respective standards when doing so.
• Level-Input: Adjust the level of the input signal. The LED lights up green when the input level is
sufficient.
• Loop Current: Adjust the signal strength of the induction loop.
• MLC: Metallic surfaces may reduce the transmission of higher frequencies. Adjust a sound that is
too muffled by reducing low-frequency signal components.
• Mount the Intercom station - see short reference Surface / Flush Mount Kit.
2
2
C
C
O
O
B
B
BOC2
BOC2
Mounting clip
LED
"Adjust"
Induction loop
1
1
Surface or flush mount kit
