WS 300V CM / WS 311V CM
Vandal resistant wallmount station with built-in HD camera
Extent of supply
• SIP station
• Mounting screws (4 × Torx TR 25 security countersunk screws, M5x10)
• Tamper detection plate
• Device identification document
• Short reference

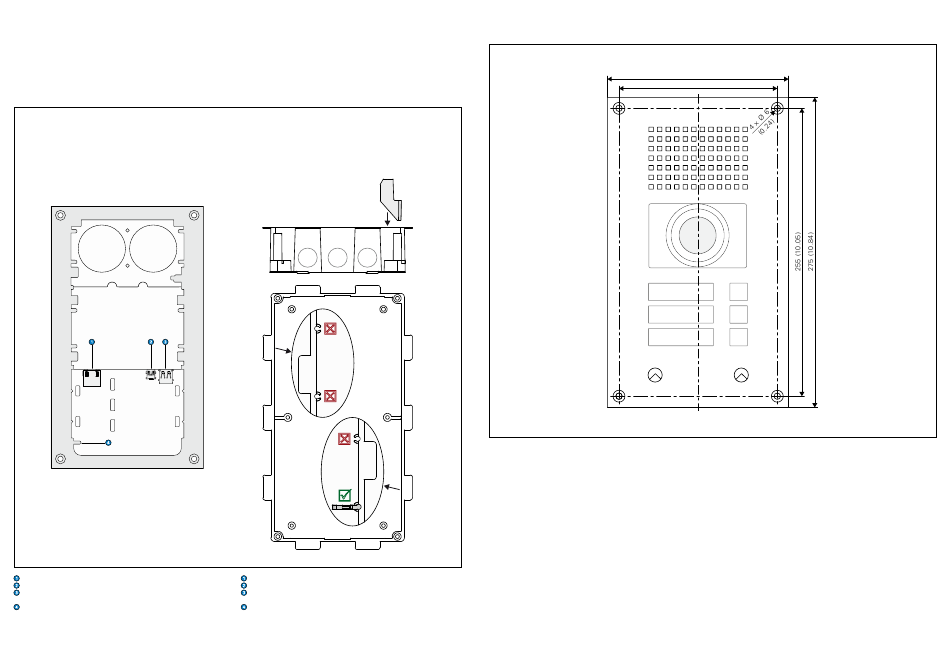

Connection diagram and tamper detection
 RJ45 jack (Ethernet/PoE)
 Mini USB jack (Type A)
 USB jack (Type A), e.g. for connection to an EB3E2A-AUD expansion
module
 Slot for tamper detection
Vandalismusgeschützte Wandsprechstelle mit integrierter HD-Kamera
Lieferumfang
• SIP-Sprechstelle
• Montageschrauben (4 × Torx-TR-25-Senkkopf-Sicherheitsschrauben,
M5x10)
• Sabotage-Einsteckteil
• Device Identification Document
• Beipackzettel
Anschlussdiagramm und Sabotage-Erkennung
Install the tamper detection
Installieren Sie das mit gelieferte
plate (for triggering the tamper
Sabotage-Einsteckteil (zum
detection alarm; in extent of
Auslösen des Sabotage-Alarms)
supply) into the flush or surface
wie in der folgenden Montage-
mount box as shown in the
zeichnung abgebildet innerhalb
following assembly drawing.
der Aufputz- oder Unterputzdose.
T
T
T
R
 RJ45-Buchse (Ethernet/PoE)
 Mini-USB-Buchse (Typ A)
 USB-Buchse (Typ A), z.B. für den Anschluss eines EB3E2A-AUD Erweit-
erungsmoduls
 Spalt für Sabotage-Erkennung
Dimensions
Measuring units in mm (in), not to scale!
Front panel thickness: 3 mm (0.12")
Access
The device can be accessed through IPv4 (DHCP), IPv6 (link-local) and ze-
roconf. For information on accessing the web interface, see the product
manual.
Abmessungen
Maße in mm, kein Maßstab!
Frontplattenstärke: 3 mm
160 (6.3)
140 (5.5)
Erreichbarkeit
Das Gerät kann über IPv4 (DHCP), IPv6 (link-local) und zeroconf erreicht
werden. Für Informationen über das Erreichen des Webinterfaces, siehe
Produktmanual.
