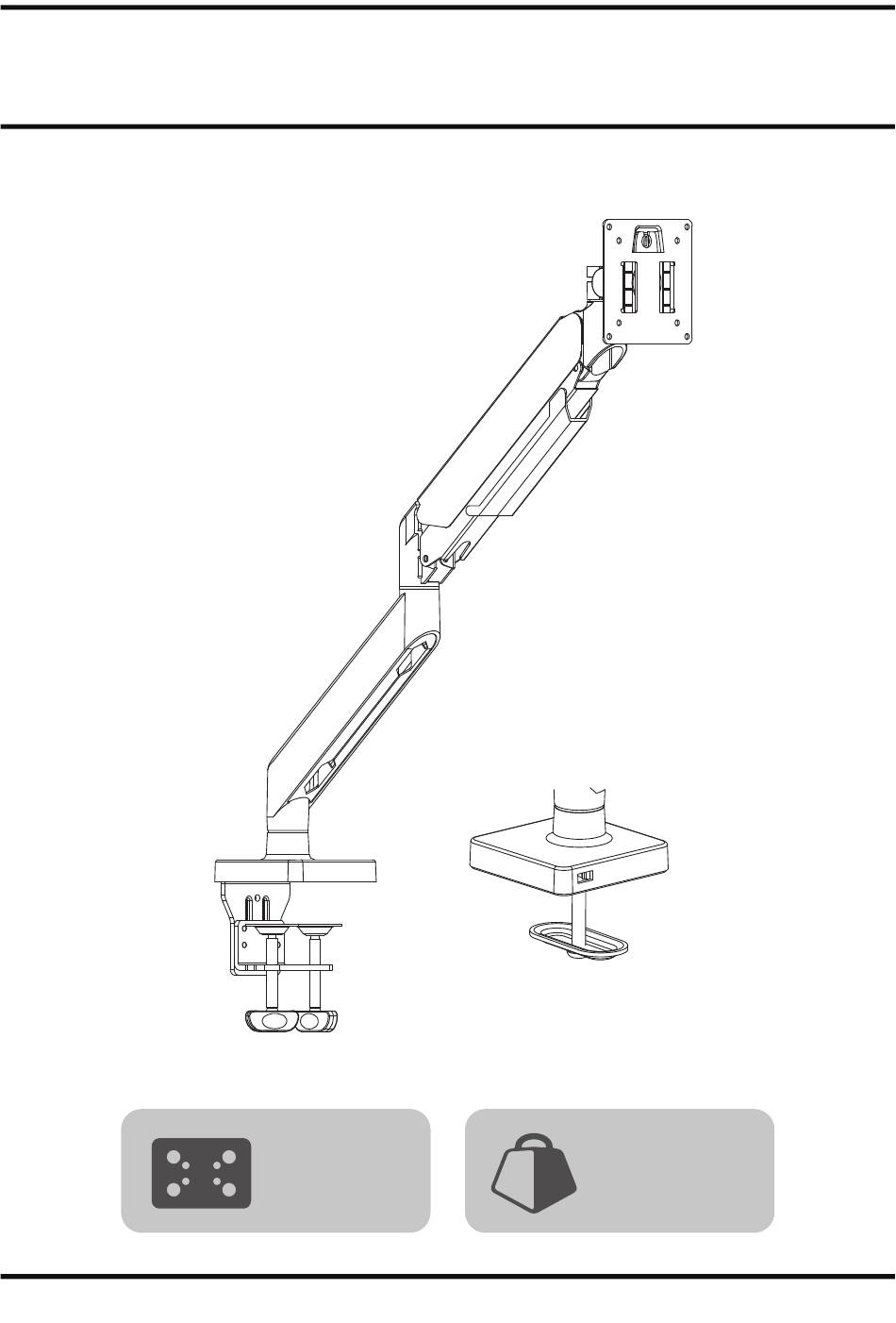

- Page 1 Premium Single Monitor Stand Instruction Manual 75 x 75 mm 4.4 lbs ~ 33 lbs 100 x 100 mm (2 kg ~ 15 kg) Y10U_US5.0 If you have any questions, please feel free to contact our customer support before returning.
-
Page 2: Safety Instructions
Safety Instructions BEFORE ASSEMBLY Layout all components and hardware. Check all parts are included and undamaged. Should anybody intends to install or use this monitor arm, please read and understand this manual carefully. WARNING This product contains small items that could be a choking hazard if swallowed. KEEP AWAY FROM CHILDREN UNDER 3 YEARS OLD. - Page 3 STEP 1: Clamp Installation or Grommet Base Installation OPTION A: Clamp Installation Place the USB extension cable in the notch. Mount bracket (8) to base (5) with bolts (C) and 4mm Allen key (E). Install the cushion (13) on the base (5) to avoid scratching the tabletop. There are two sets of key slot holes to choose from for different desktop thicknesses.
- Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation ø 0.4"~2.4" Ensure the desktop has a hole between 0.4'' ø 10~60mm and 2.4'' in diameter to use this option. Using a grommet hole that is already in your desktop is acceptable. DESK DESK Place the USB extension cable in the notch.
-
Page 5: Step 2: Arm Installation
STEP 2: Arm Installation STEP 2-1: Loosen and remove the pre-installed screw and rivet nut from the upper arm (7). STEP 2-2: Install the upper arm (7) and the lower arm (6) as shown as below. Insert the rivet nut into the hexagonal hole of the upper arm, then install the screw through the rivet nut, and tighten it with Allen key (E). - Page 6 STEP 3: Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (9) to the back of monitor Monitor Monitor Monitor and secure it by using a 5mm Allen key (F) to tighten screws (A or B) along with washers (3). Do not tighten the screws excessively or your monitor...
-
Page 7: Important Notice
STEP 4: Hang Monitor Slide the monitors onto the head of arm. Lock the security knob. Make sure the security knob is locked before you rotate the monitor. When the display is inserted into the quick release head, make sure the knob is vertical. After insertion, rotate the knob 90 degrees to the left. - Page 8 STEP 5: Adjust Monitor Tilting Angle +90° Turn clockwise to tighten Turn counterclockwise to loose 0° or -45° Limit screw can prevent the head from sinking. This screw can be removed when you need the display to be lowered (0°~-45°). Before removing the screw +90°~0°...
- Page 9 STEP 6: Adjust Gas Spring Tension For proper functioning of this mount, depending on different weight of monitor you might need to adjust tension in upper arm (7) using 6mm Allen key (G). The initial value of the scale is the middle value of the force range.
-
Page 10: Step 7: Cable Management
STEP 7: Cable Management Remove Cable Cover Remove the cable cover by grasping both sides of one end of the cover with the fingers of both hands, and then pulling it to the left and right respectively. Press Press Press Press Attach Cable Cover Run cables from monitor through bottom of arm. - Page 11 Adjust as Desired Adjust monitor position and rotation. ±90° +90° Tilt Swivel ±180° Rotation Height -45° ±180° 360° ±180° Note: To ensure stability, the tightness of the rotating axis has been preseted, so it would be kind of difficult to rotate the VESA plate.
-
Page 12: Product Dimensions
min240mm~ max305mm 55mm Product Dimensions + 90° 6.69" 9.44-12" 2.16" 180° 75mm 180° 100mm 360° 360° 360° 360° CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
