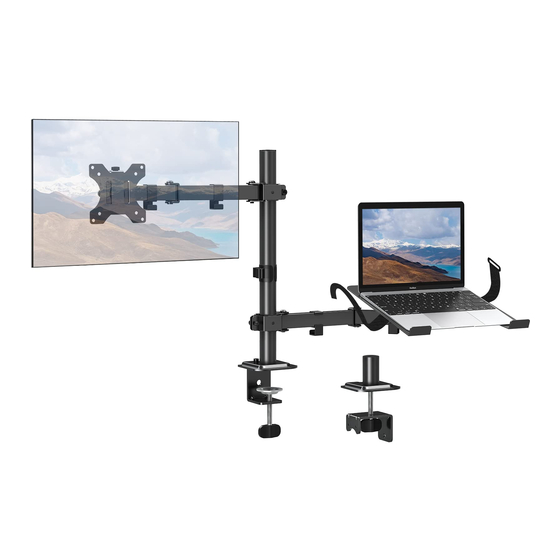

Single Monitor and Laptop Tray Desk Mount
Instruction Manual
MU4002
If you have any questions , please contact us.
75x75
27"
100x100
(8kg/17.6lbs)x2
V3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU4002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountup MU4002

Summary of Contents for Mountup MU4002

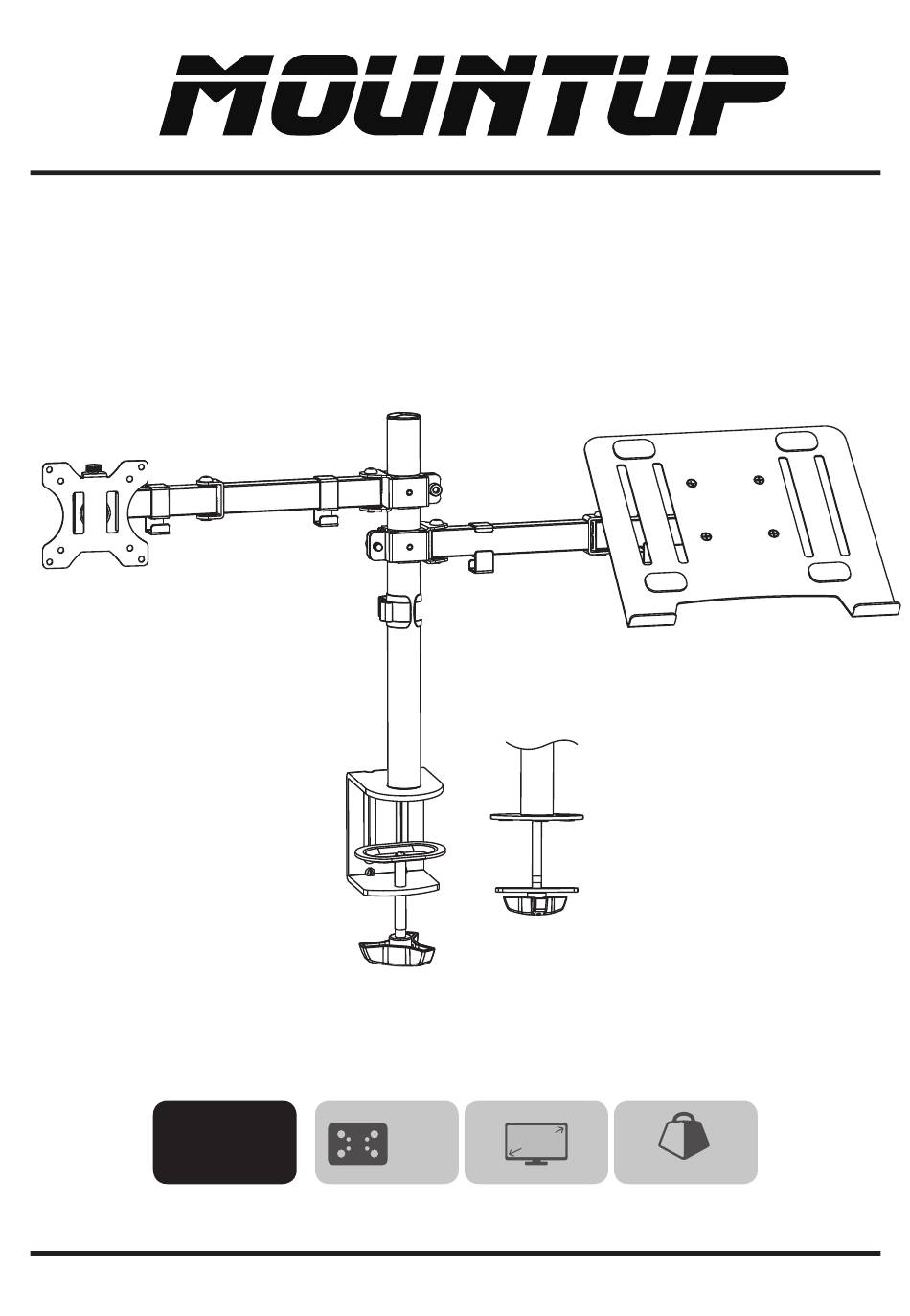

  • Page 1 Single Monitor and Laptop Tray Desk Mount Instruction Manual 75x75 MU4002 27" 100x100 (8kg/17.6lbs)x2 If you have any questions , please contact us. V3.0...

  • Page 2: Package Contents

    WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Install the Clamp (C) to the Pole (D) using 3pcs Bolt(G). Tighten using 4mm Allen key (K). Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (L). 10-80mm...
  • Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing the desk mount. Loosen the screw, separate the clamp (C) into two parts. DESK ø...

  • Page 5: Step 2 : Arm Installation

    STEP 2 : Arm Installation Install wire clip (E) and two swivel arms (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (L). Attached the wire clips (I) to the swivel arm (B).
  • Page 6 STEP 3 : Attach the VESA Plate to the Monitor or Laptop Tray 3-1: Attached Monitor OPTION A: Flat Back Monitor For flat back monitor, secure VESA plate (A) to monitor using screws (M-A or M-C) and washers (M-E). Tighten the screws using 6mm Allen key (L).
  • Page 7 3-2: Attach Laptop Tray Install the VESA plate (A) to the laptop tray (M) using 4pcs screws (O) and 4pcs nuts (P) , tighten by 6mm Allen key (L) . Apply pads (N) to the laptop tray to avoid laptop scratches. NOTE: Attach the pads on the tray based on the size of the laptop.
  • Page 8 STEP 5 : Secure the Laptop on the Laptop tray Blank side Loop&Hook side Untie the strap before you cover the laptop.

  • Page 9: Step 6: Tilt Adjustment

    STEP 6: Tilt Adjustment Tighten the bolt with the supplied 6mm Allen key (L) to x the tilt angle. Guideline to adjust monitor tilting angle. Tilts down Note: 1. Loosen the tilting bolt. 2. Adjust monitor to your desired tilting angle. 3.

  • Page 10: Step 7: Cable Management

    STEP 7: Cable Management Manage cables and store Allen keys (K,L) in wire clip (E) for future use.

  • Page 11: Product Dimensions

    Adjust as Desired Adjust monitor position and rotation. ±90° ±90° ±90° +90° -90° 360° DESK DESK Pay attention while clamp install ! Product Dimensions...
  • Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
