Mountup MU0026 Instruction Manual

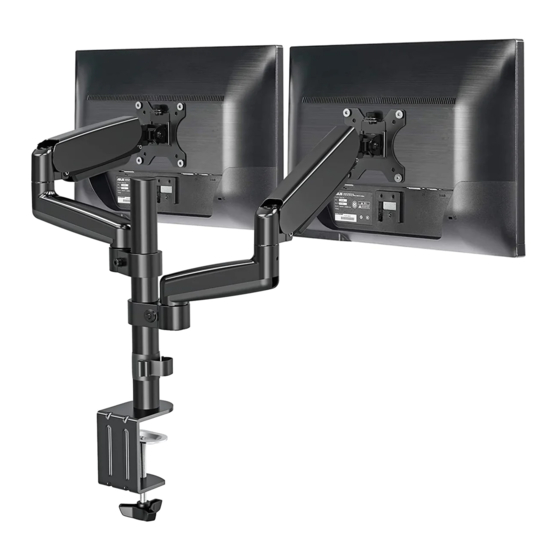

Dual monitor counterbalance desk mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dual Monitor Counterbalance Desk Mount
Instruction Manual
MU0026
If you have any questions , please contact us via: help@jollyholding.com
32"
75x75
100x100
(1~8kg)x2
(2.2~17.6lbs)x2
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU0026 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountup MU0026

Summary of Contents for Mountup MU0026

  • Page 1 Dual Monitor Counterbalance Desk Mount Instruction Manual MU0026 32" 75x75 100x100 (1~8kg)x2 (2.2~17.6lbs)x2 If you have any questions , please contact us via: help@jollyholding.com V2.0...

  • Page 2: Package Contents

    WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via help@jollyholding.com. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Loosen Bolts (B5) by using 6mm Allen Key (M), then lift clip plate (B2), bottom plate (B3), and bolt Y (B4) a little to release them from bracket (B1). Mount bracket (B1) to pole(E) using bolts (H).
  • Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation Use 6mm allen key(M) to detach the bolt(B5), clip plate(B2),bottom plate(B3) and bolt Y(B4) from clamp(B). Install the grommet base plate(J) to the pole (E) using bolt (H). Install pole(E) with bolt Y(B4) and support plate(I). Tighten bolt Y (B4) or by using 6mm allen key (M).

  • Page 5: Step 2 : Arm Installation

    STEP 2 : Arm Installation Install the wire clip(F) and swivel arm(A) to the pole(E). Fasten the bolt with supplied 6mm Allen key (M) Just tighten the bolt, do not over tighten it in case the cast aluminum part could be damaged.
  • Page 6 STEP 3 : Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (D) to back of monitor and secure with screws(M-A)or(M-C) with washers(M-E) using 6 mm Allen Key (M). Avoid excessive tightening screws damage the monitor. OPTION B: Curved Back Monitor Attach the VESA plate (D) to back of monitor and secure with screws (M-B) or (M-D) with washers (M-E)and spacers(M-F)using 6 mm Allen Key (M).
  • Page 7 STEP 4 : Hang Monitor Slide the monitors onto the head of swivel arm.Install the security bolt (G). Make sure the security bolt is installed before you rotate the monitor. Refer to below illustrations to adjust tilting angle of your monitor. Note: Fasten/loosen the tilting bolt as needed per arrow direction (+/-) shown in above diagram.

  • Page 8: Step 5 : Adjust Tension

    STEP 5 : Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in gas spring arm (A) using 6 mm Allen Key (M). After being attached to the arm, the monitor falls down and can not stay at the desired height by itself.

  • Page 9: Step 6 : Cable Management

    STEP 6 : Cable Management Remove bottom plastic covers from gas spring arm (A) .Run cables from monitor through bottom of gas spring arm (A). Reattach plastic covers as shown in diagram.
  • Page 10 Adjust as Desired +35° ±90° -35° ±180° ±180° ±135° DESK DESK Pay attention while clamp install !

  • Page 11: Product Dimensions

    Product Dimensions ±180° ±135° ±90° 2.67“ 1.73" 8.2"-10.3 6.3“ +35° -35° ±180°...
  • Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
