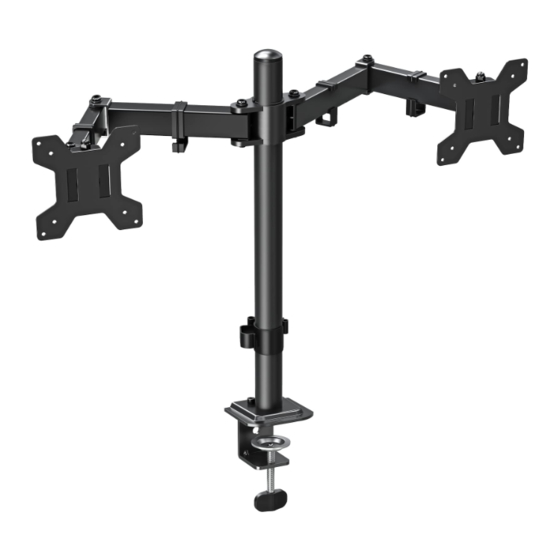

Dual Monitor Desk Mount
Instruction Manual
MU0002
If you have any questions , please contact us via: help@jollyholding.com
27"
75x75
100x100
(8kg/17.6lbs)x2
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU0002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountup MU0002

Summary of Contents for Mountup MU0002

  • Page 1 Dual Monitor Desk Mount Instruction Manual MU0002 27" 75x75 100x100 (8kg/17.6lbs)x2 If you have any questions , please contact us via: help@jollyholding.com V2.0...

  • Page 2: Package Contents

    WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via help@jollyholding.com. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Install the Clamp (C) to the Pole (D) using 3pcs Bolt(G). Tighten using 4mm Allen key (L). Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (M). 10-80mm...
  • Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing the desk mount. Loosen the screw, separate the C-clamp (C) into two parts. DESK ø...

  • Page 5: Step 2 : Arm Installation

    STEP 2 : Arm Installation Install wire clip (E) and swivel arm (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (M). Attached the wire clips (I) to the swivel arm (B).
  • Page 6 STEP 3 : Attached Monitor OPTION A: Flat Back Monitor For flat back monitor, secure VESA plate (A) to monitor using screws (M-A or M-C) and washers (M-E). Tighten the screws using 6mm Allen key (M). CAUTION:To select the correct screws (M-A or M-C) for your monitor, you can try to screw it on your monitor by hand.
  • Page 7 STEP 4 : Hang Monitor Slide the monitor onto the head of swivel arm (B). Install the plastic cover (J) and security bolt (K). Tighten the bolt with the supplied 4mm Allen key (L). Make sure the security bolt (K) is installed before you rotate the monitor.

  • Page 8: Step 5: Tilt Adjustment

    STEP 5: Tilt Adjustment Tighten the bolt with the supplied 6mm Allen key (M) to x the tilt angle. Refer to below illustrations to adjust tilting angle of your monitor. Note: Fasten/loosen the tilting bolt as needed per arrow direction (+/-) shown in above diagram.

  • Page 9: Step 6: Cable Management

    STEP 6: Cable Management Manage cables and store Allen keys (L,M) in wire clip (E) for future use.
  • Page 10 Adjust as Desired Adjust monitor position and rotation. For minor height adjustment, turn the plastic cover (J) with the supplied 6mm Allen Key (M) to raise or lower the monitor. Ignore this step if the two monitors are level. +90° 360°...

  • Page 11: Product Dimensions

    Product Dimensions ±90° ±90° ±90° ±90° 2.9” 3.9“ 4.48“ ±180°...
  • Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
