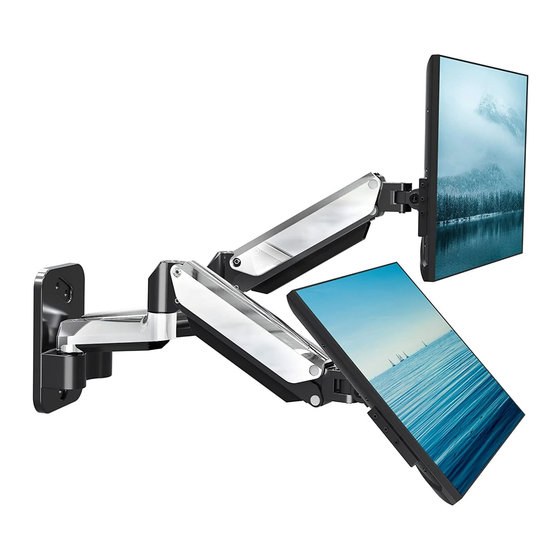

- Page 1 Polished Aluminium Dual Monitor Wall Mount Instruction Manual 75x75 MU2002 32" 100x100 (1.5~8kg)x2 (3.3~17.6lbs)x2 If you have any questions , please contact us. V2.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Attach Arm Assembly to Wall OPTION A: Wood Stud Installation Position the Arm Assembly (A) at your desired height and line up the holes with your stud center line. Level the Arm Assembly (A) and mark the pilot hole locations. - Page 4 STEP 1: (Continued) OPTION B: Solid Concrete Wall Installation Position the Arm Assembly (A) at your desired height , level the Arm Assembly (A) and mark the pilot hole locations. 60mm (2.4") ø10mm Drill pilot holes using a ø3/8 in. (ø...
- Page 5 STEP 2: Attach Decorative Cover Attach Decorative Covers (D) to Lag Bolts (W-A).
- Page 6 STEP 3 : Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (B) to back of monitor and secure with screws(M-A)or(M-C) with washers(M-E) using 6 mm Allen Key (E). Do not tighten the screws excessively or your monitor might be damaged. OPTION B: Curved Back Monitor Attach the VESA plate (B) to back of monitor and secure with screws (M-B) or (M-D) with washers (M-E)and...
- Page 7 STEP 4: Hang Monitor Slide the monitor onto the head of swivel arm, install the security bolt (C). Make sure the security bolt is installed before you rotate the monitor. Important Notice: The gas spring tension is pre-set to the weakest level by default, please hold your monitor by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.
-
Page 8: Step 5: Adjust Tension
STEP 5: Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in upper arm using 6 mm allen key (E). CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. After being attached to the arm, the monitor falls down and can not stay at the desired height by itself. -
Page 9: Step 6: Cable Management
STEP 5: (Continued) STEP 6: Cable Management For both bottom and upper portion of the spring arm, just slide the cable cover up and away from the spring arm, do not need to take much e ort to pull the ends of the cable cover away from the spring arm. On the bottom portion of the spring arm, insert the cable and slide the cable cover down;... - Page 10 Adjust as Desired Adjust monitor position and rotation. Note: When tilted, if the monitor sags or does not stay, please fasten the tilting bolt on the mount until the monitor can be held at any angle as needed. +90° 180° 360°...
-
Page 11: Product Dimensions
Product Dimensions 360° 360°... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
