Summary of Contents for Mountup MU0029

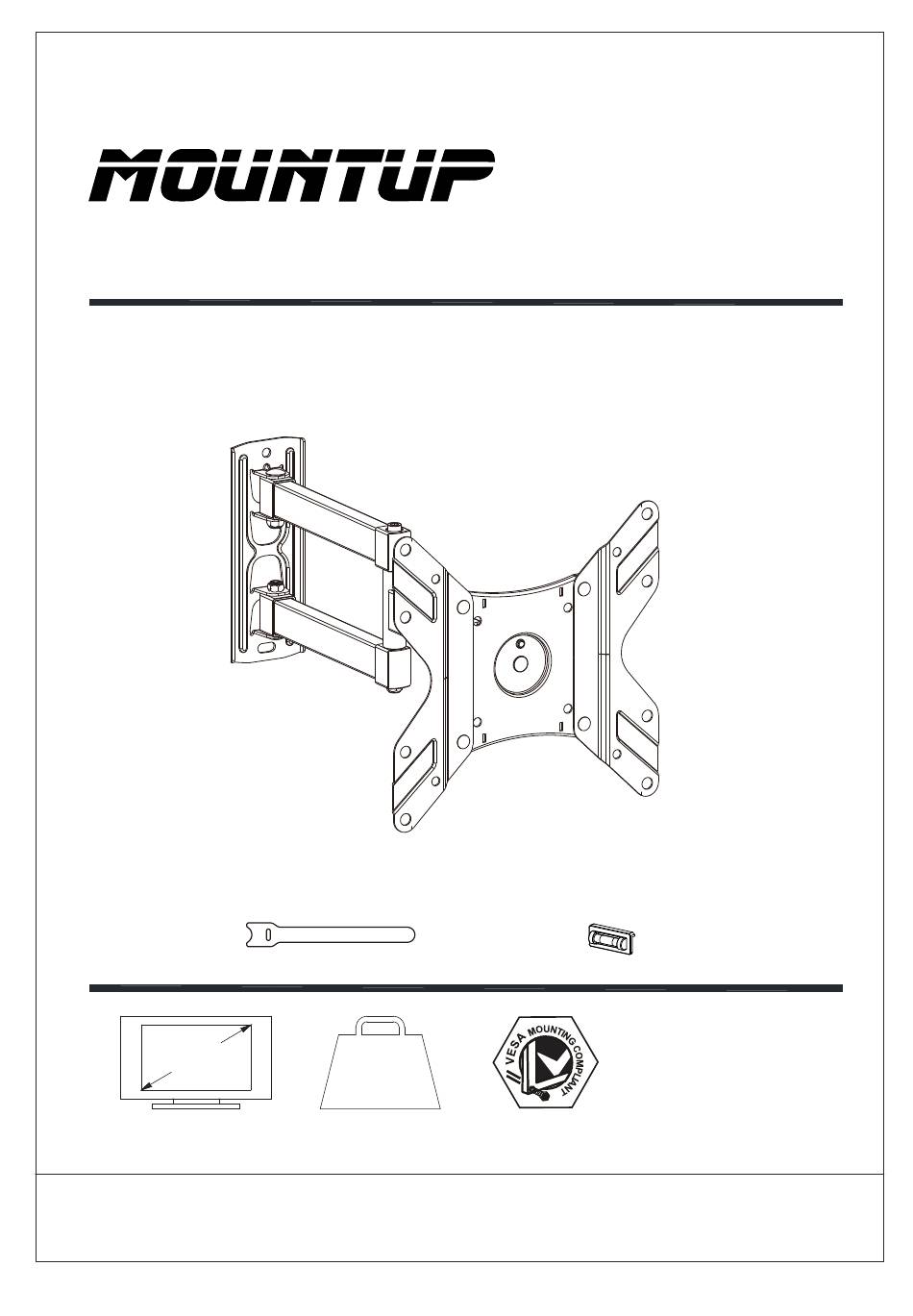

- Page 1 MU0029 INSTALLATION INSTRUCTION Velcro cable ties X3 Bubble level X1 Max:200x200mm/8x8" Max: 14"~40" 33LBS Min:75x75mm/3x3" 15KG (V1) If you have any questions, please contact us via help@jollyholding.com - 1 -...
-
Page 2: Installation Tools
Safety Caution combined. ● Do not apply this product to any purpose not indicated by MOUNTUP. ● Incorrect installation may result in product damage or body injury. MOUNTUP shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse. -
Page 3: Hardware Included
Hardware Included Arm and Wall Plate Monitor Plate Extenders Hardware WARNING: （Wall /Product) This product contains small items that could be a choking hazard if Nuts Bolts Open end wrench Lag Bolts swallowed. Before starting ST6.3 x 60mm assembly, verify all parts are included and undamaged. - Page 4 STEP 1 Select Proper TV Screw 1. Select TV screw diameter: Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV. 2. Select TV screw length: When attaching brackets to the TV, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes.
- Page 5 STEP 3-1 Select Monitor Plate Configuration Select the configuration A , B , C, or D to use based on the measurement from STEP 100mm 75mm VESA Patter VESA Pattern Configuration Configuration (WxH) (WxH) 150mm x 150mm 75mm x 75mm 200mm x 100mm 100mm x 100mm 100mm x 200mm...
-
Page 6: Step 3-3 Attach The Brackets
STEP 3-3 Attach the Brackets (a) for Flat Back Use the shorter screws Not for M8 screws (b) for Round Back / Extra space Use the longer screws Not for M8 screws STEP 4A Wall Plate Installation (Wood stud) 4A-1 Locate your studs. - Page 7 4A-2 Level Position the wall plate your desired height and line up the holes with your stud center line. Level the wall plate and mark the pilot hole locations x2. 4A-3 in. (70 mm) Drill pilot holes using a 5/32 in. (4 mm) diameter drill bit.
- Page 8 STEP 4B Wall Plate Installation (Concrete or Brick) Level Position the wall plate 4B-1 your desired height , level the wall plate and mark the pilot hole locations x2. 4B-2 Ø 10 mm Drill pilot holes 2.75in 70 mm 4B-3 Concrete wall anchor (NOT INCLUDED) Contact us by email help@jollyholding.com to have these additional pieces shipped directly to you.
- Page 9 STEP 5 Lift and Hang TV with Brackets onto Wall Bracket Lift and hang TV assembly onto arm and wall plate. Secure the monitor plate to the arm and wall plate with the removed screws and washers from the previous step. Remove 2 preassembled screws and washers before hang TV on to the...
-
Page 10: Product Dimensions
Switch Screen Horizontally and Vertically If needed, the TV can be rotated ±90 degrees for switching screen between horizontally and vertically. ±90° 0° up 90° up Use the open end wrench to loosen and tighten this screw if necessary. Screwdriver can be used for adjusting the screw to secure the TV direction if need.
