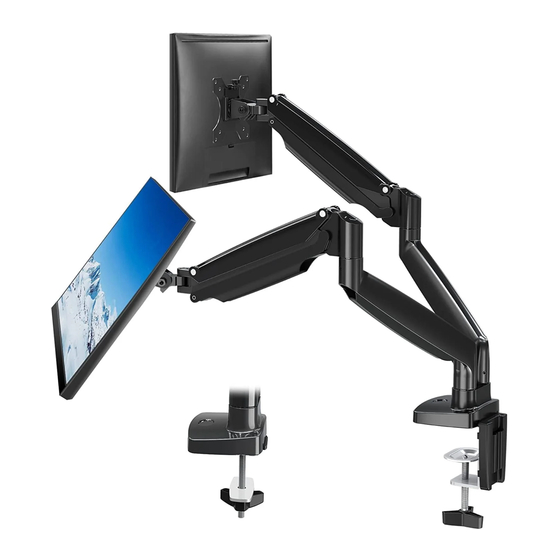

- Page 1 Premium Dual Monitor Stand Instruction Manual 75x75 MU0033 35" 100x100 (3~14kg)x2 (6.6~30.9lbs)x2 If you have any questions , please contact us. V2.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Mount Bracket (D) to Base (C) with Bolts (L). Bolts could be tightened by the 4mm Allen Key (P). Apply pads (M) to the Bolts (L) to avoid desk scratches. Similarly, attach Clamp (G) to Bracket (D) with Bolts (L) and 4mm Allen Key (P). - Page 5 STEP 1: (Continued) OPTION B: Grommet Base Installation Place Carriage Bolt (H) through the center of Grommet Base (I). Mount Grommet Base to Base (C) bottom with Bolts (L) and tighten by 4mm allen key (P). Apply pads (M) to the Bolts (L) to avoid desk scratches. Run Carriage Bolt (H) through Grommet Hole on desktop.
-
Page 6: Step 2: Arm Installation
STEP 2: Arm Installation Install the lower arm (B) and the upper arm (A) to the base (C). Secure the arm by tightening the inside screw using 3mm Allen key (O). DO NOT tighten the screw excessively or it might be stripped. DO NOT tighten the screw excessively or it might be stripped. - Page 7 STEP 3 : Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (F) to back of monitor and secure with screws(M-A)or(M-C) with washers(M-E) using 6 mm Allen Key (Q). Do not tighten the screws excessively or your monitor might be damaged. OPTION B: Curved Back Monitor Attach the VESA plate (F) to back of monitor and secure with screws (M-B) or (M-D) with washers (M-E)and...
- Page 8 STEP 4: Hang Monitor Slide the monitor onto the head of swivel arm, install the security bolt (N). Make sure the security bolt is installed before you rotate the monitor. Important Notice: The gas spring tension is pre-set to the weakest level by default, please hold your monitor by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.
-
Page 9: Step 5: Adjust Tension
STEP 5: Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in upper arm (A) using 6 mm allen key (Q). CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. After being attached to the arm, the monitor falls down and can not stay at the desired height by itself. -
Page 10: Step 6: Cable Management
STEP 6: Cable Management Remove bottom plastic covers from arm as shown in diagram. from the arm, do not need to take much e ort to pull the ends of the cable cover away from the arm. Run cables from monitor through bottom of arm. Reattach plastic covers as shown in diagram. - Page 11 Adjust as Desired Allen key(Q,O) can be stored in Base Support Cover(E) for next time using. Note: When tilted, if the monitor sags or does not stay, please fasten the tilting bolt on the mount until the monitor can be held at any angle as needed.
-
Page 12: Product Dimensions
Product Dimensions 10"-12.4" 180° 360° 360° 270°... - Page 13 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
