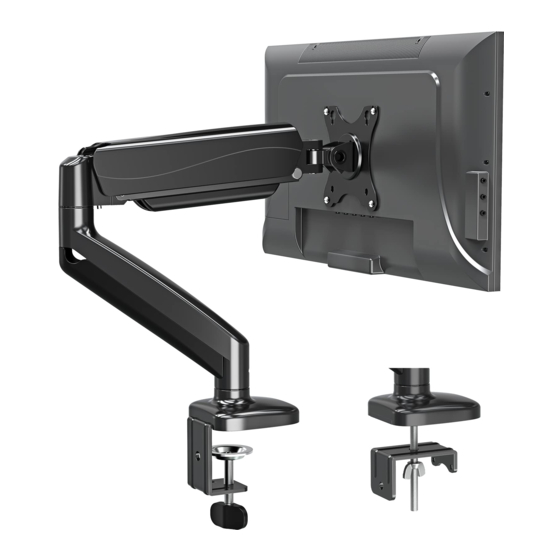

Single monitor counterbalance desk mount
Hide thumbs Also See for MU0004:
Table of Contents

Advertisement

Quick Links

Download this manual
Single Monitor Counterbalance Desk Mount
Instruction Manual
MU0004
If you have any questions , please contact us via: help@jollyholding.com
32"
75x75
100x100
2~8kg
4.4~17.6lbs
V6.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU0004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountup MU0004

Summary of Contents for Mountup MU0004

  • Page 1 Single Monitor Counterbalance Desk Mount Instruction Manual MU0004 32" 75x75 100x100 2~8kg 4.4~17.6lbs If you have any questions , please contact us via: help@jollyholding.com V6.0...

  • Page 2: Package Contents

    WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via help@jollyholding.com. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Mount bracket (C) to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (K). Attach clamp (D) to bracket (C) using bolts (E) and 4mm allen key (K). Mount according to thickness of desktop. Secure stand to desktop by tightening clamp (D) or by using 6mm allen key (M).
  • Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, place carriage bolt (H) through the center of grommet base (F). Mount grommet base to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (K). Run carriage bolt (H) through grommet hole in desktop.
  • Page 5 STEP 2: Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (B) to back of monitor and secure with screws(M-A)or(M-B) with washers(M-C) using 6 mm Allen Key (M). Avoid excessive tightening screws damage the monitor. CAUTION:To select the correct screws(M-A or M-B) for your monitor, you can try to screw it on your monitor by hand.
  • Page 6 STEP 3: Hang Monitor Slide the monitor onto the head of swivel arm, install the security bolt (I). Make sure the security bolt is installed before you rotate the monitor. Refer to below illustrations to adjust tilting angle of your monitor. Note: Fasten/loosen the tilting bolt as needed per arrow direction (+/-) shown in above diagram.

  • Page 7: Step 4: Adjust Tension

    STEP 4: Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in gas spring arm (A) using 5 mm allen key (L). After being attached to the arm, the monitor falls down and can not stay at the desired height by itself.

  • Page 8: Step 5: Cable Management

    STEP 5: Cable Management Remove bottom plastic covers from gas spring arm(A) as shown in diagram.
  • Page 9 STEP 5: (Continued) Run cables from monitor through bottom of gas spring arm (A). Reattach plastic covers as shown in diagram.
  • Page 10 Adjust as Desired Note: When tilted, if the monitor sags or does not stay, please fasten the tilting bolt on the mount until the monitor can be held at any angle as needed. 180° +90° 360° -45° 360° 360° DESK DESK Pay attention while clamp install !

  • Page 11: Product Dimensions

    Product Dimensions 6.3“ 7.2"-10.2" 1.96" 180° 2.9” 3.9“ 4.5“ STEP 6 360°...
  • Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
