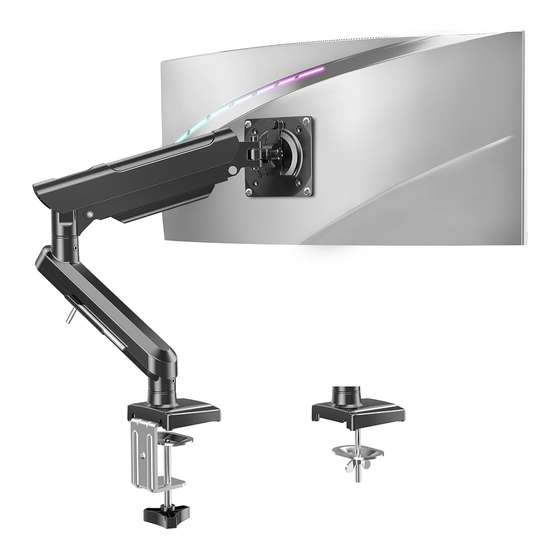

- Page 1 Gaming Counterbalance Desk Mount Instruction Manual MU0027 1.5~8kg (3.3~17.6lbs) RATED If you have any questions , please contact us via: help@jollyholding.com V1.0...
- Page 2 WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via help@jollyholding.com. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
PACKAGE CONTENTS Components A (x1) B (x1) C (x1) D (x1) E(x1) F (x1) G (x1) VESA Plate Bracket Clamp Bracket Cover Long Bolt Grommet Base H (x1) I (x1) J (x6) K(x1) L(x1) Support Plate Security Screw Screw Wingnut Base M(x1) N(x1) - Page 4 STEP 1 Mount the Base to Bottom of the Arm Mount the base(L) to the bottom of arm (A) using Washer(M), calathiform gasket(N) and Bolt(O). Tighten (do not over tighten) the Bolt (O) securely with supplied 5mm Allen key (Q). concave side of the washer needs to be faced to the Base (L)
- Page 5 Adjust the Mount to the Desktop Adjust the Mount to the Desktop Thickness 50-85mm Thickness 10-55mm Secure clamp (D) to lower two holes with Secure clamp (D) to upper two holes with bolts (J) using 4mm Allen Key (P) for desks bolts (J) using 4mm Allen Key (P) for desks with a thickness of 50-85mm.
- Page 6 STEP 2 (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, place long bolt(F) through the center of grommet base (G). Mount grommet base to the bottom of arm (A) using screws(J). Tighten the screws with supplied 4mm Allen key (P). Run long bolt(F) through grommet hole in desktop.
- Page 7 STEP 3 Attach the monitor to the arm OPTION A:Flat Back Monitor Attach the VESA plate (B) to back of monitor and secure with screws (M-A) or (M-C) with washers (M-E) using 6mm Allen Key(R). Avoid excessive tightening screws damage the monitor.
- Page 8 Slide the monitor onto the head of swivel arm(A), install the security screw (I). Make sure the security screw is installed before you rotate the monitor. Refer to below illustrations to adjust tilting angle of your monitor. If the monitor sags or does not stay, please fasten the tilting bolt on the mount until the monitor can be held at any angle as needed.
-
Page 9: Step 4 Adjust The Tension
STEP 4 Adjust the tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension spring in Arm (A) by using 6 mm Allen key (R). After being attached to the arm, the monitor falls down and can not stay at the desired height by itself. -
Page 10: Step 5 Cable Management
STEP 5 Cable Management Remove the bottom plastic covers from spring arm(A) as shown in diagram. Run cables from monitor through the bottom of spring arm (A). Reattach plastic covers as shown in diagram. - Page 11 Adjust as Desired Allen Key(P,Q) can be stored in Base Support Cover(E) for next time using. ±90° +90° -45° ±180° ±180° ±180° DESK DESK Pay attention while clamp install !
- Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
