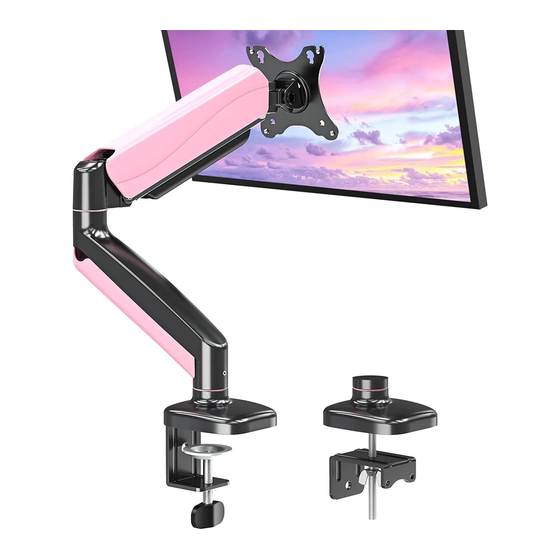

- Page 1 Single Monitor Desk Mount Instruction Manual 75x75 MU6001 32" 100x100 2~8kg 4.4~17.6lbs If you have any questions , please contact us. V2.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Apply Pads to the Base Bottom Apply pads (H) to the base bottom to avoid desk scratches. STEP 2: Clamp Installation or Grommet Base Installation OPTION A: Clamp Installation Mount Bracket (E) to Base Bottom (C) with Bolts (G). Bolts could be tightened by the 4mm Allen Key (O). Similarly, attach Clamp (F) to Bracket (E) with Bolts (G) and 4mm Allen Key (O). - Page 4 STEP 2: (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, place Carriage Bolt (K) through the center of Grommet Base (I). Mount Grommet Base to Base Bottom (C) with Bolts (G) and tighten by 4mm allen key (O). Run Carriage Bolt (K) through Grommet Hole on desktop.
-
Page 5: Step 3: Arm Installation
STEP 3: Arm Installation Install the lower arm (B) and the upper arm (A) to the base (C). Secure the arm by tightening the inside screw using 3mm Allen key (N). DO NOT tighten the screw excessively or it might be stripped. DO NOT tighten the screw excessively or it might be stripped. - Page 6 STEP 4: Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (D) to back of monitor and secure with screws(M-A)or(M-B) with washers(M-C) using 6 mm Allen Key (P). Do not tighten the screws excessively or your monitor might be damaged. CAUTION:To select the correct screws(M-A or M-B) for your monitor, you can try to screw it on your monitor by hand.
- Page 7 STEP 5: Hang Monitor Slide the monitor onto the head of swivel arm, install the security bolt (L). Make sure the security bolt is installed before you rotate the monitor. Important Notice: The gas spring is pre-set to minimum tension. Once the monitor is hanged on, hold the monitor with both hands and DO NOT let go suddenly or immediately.
-
Page 8: Step 6: Adjust Tension
STEP 6: Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in (A) using 6 mm allen key (P). upper arm CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. If the monitor falls down and fails to stay at the desired height by itself: Turn counter-clockwise(“+”direction) to increase gas... -
Page 9: Step 7: Cable Management
STEP 7: Cable Management STEP 5: (Continued) Remove bottom plastic covers from gas spring arm as shown in diagram. Run cables from monitor through bottom of gas spring arm. Reattach plastic covers as shown in diagram. - Page 10 Adjust as Desired Adjust monitor position and rotation. 180° +90° 360° -45° 360° 360° DESK DESK Pay attention while clamp install !
-
Page 11: Product Dimensions
Product Dimensions 180° 360° 360° 200mm-280mm 63mm 160mm 7.87"-11" 6.3“ 2.5“ 2.95" 75mm 3.94" 100mm 360° 4.5" 114mm... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
