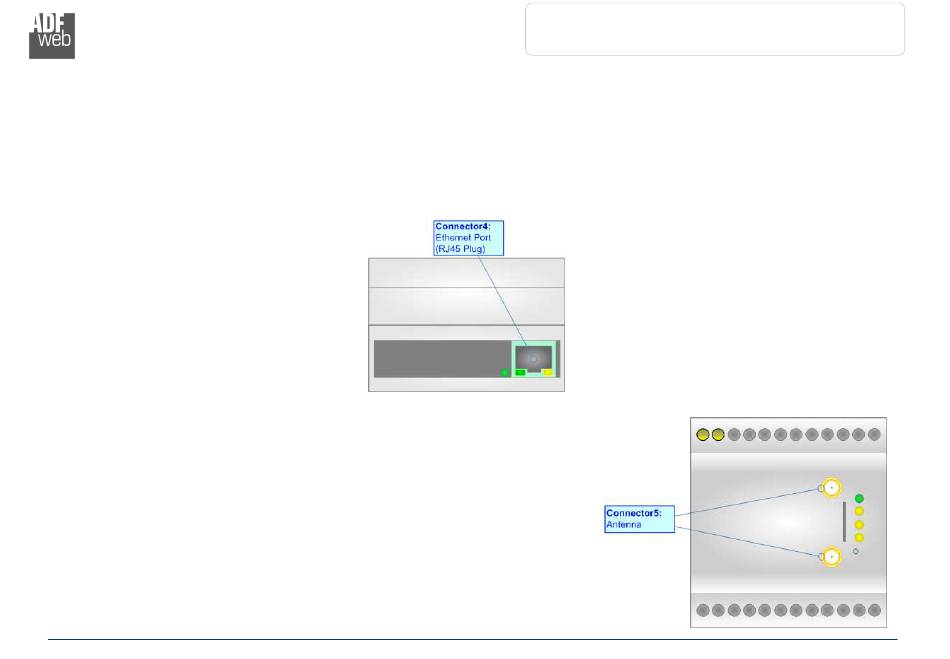

ETHERNET:
The Ethernet port is used for programming the device, for MQTT communication and for Modbus TCP communication.
The Ethernet connection must be made using Connector2 of HD67C07-xxx-x-xxx-B2 with at least a Category 5E cable. The maximum length
of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a
cross cable.
The interface has two different MAC Addresses, one for MQTT and one for Modbus TCP side.
MOBILE:
The HD67C07-G43-x-xxx-B2 uses LTE module. The Antenna connector is a SMA Female
('Female Outer Shell' and 'Female Receptacle') so the Antenna must have a SMA Male
connector. The physical SIM card type is Micro-Sim.
