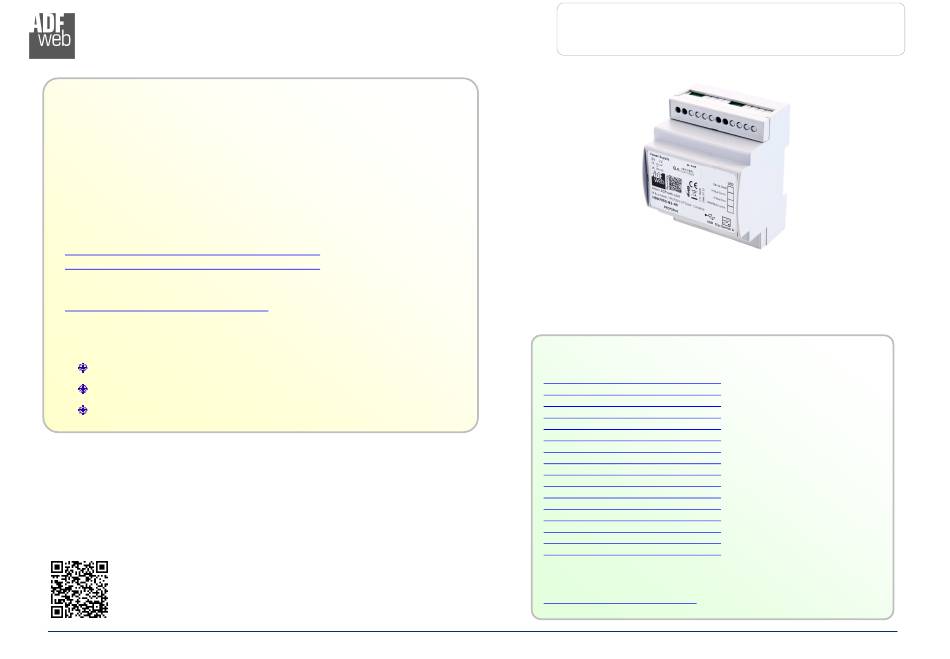

Industrial Electronic Devices
User Manual
Revision 1.000
English
EnOcean / Modbus Slave - Converter
(Order Code: HD67C52-2-B2, HD67C52-5-B2)
For Website information:
www.adfweb.com?Product=HD67C52-2-B2
www.adfweb.com?Product=HD67C52-5-B2
For Price information:
www.adfweb.com?Price=HD67C52-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EnOcean / Modbus Slave
Document code: MN67C52_ENG
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C50
www.adfweb.com?Product=HD67C54
www.adfweb.com?Product=HD67C56
www.adfweb.com?Product=HD67C57
www.adfweb.com?Product=HD67C58
www.adfweb.com?Product=HD67C61
www.adfweb.com?Product=HD67C63
www.adfweb.com?Product=HD67C65
www.adfweb.com?Product=HD67C66
www.adfweb.com?Product=HD67C67
www.adfweb.com?Product=HD67C70
www.adfweb.com?Product=HD67C72
www.adfweb.com?Product=HD67C73
www.adfweb.com?Product=HD67C75
www.adfweb.com?Product=HD67C77
www.adfweb.com?Product=HD67C79
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 30
(Serial)
(Modbus TCP Slave)
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(EtherNet/IP Slave)
(IEC61850 Server)
(J1939)
(KNX)
(MQTT)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Slave)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67C52-2-B2
Summary of Contents for ADF Web HD67C52-2-B2
- Page 1 Revision 1.000 Page 1 of 30 Industrial Electronic Devices User Manual Revision 1.000 English EnOcean / Modbus Slave - Converter (Order Code: HD67C52-2-B2, HD67C52-5-B2) For Website information: www.adfweb.com?Product=HD67C52-2-B2 www.adfweb.com?Product=HD67C52-5-B2 For Price information: www.adfweb.com?Price=HD67C52-B2 Benefits and Main Features: For others EnOcean products, see also the following links:...
-
Page 2: Table Of Contents
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67C52-2-B2 ADFweb.com S.r.l. - Page 6 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 6 of 30 Industrial Electronic Devices Figure 1b: Connection scheme for HD67C52-5-B2 ADFweb.com S.r.l.
-
Page 7: Characteristics
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 7 of 30 Industrial Electronic Devices CHARACTERISTICS: The HD67C52-B2 is a EnOcean / Modbus Slave Converter. It allows the following characteristics: Electrical isolation between Modbus and Power Supply; Mountable on 35mm Rail DIN;... -
Page 8: Power Supply
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 8 of 30 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax... -
Page 9: Function Modes
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 9 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 10: Leds
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 10 of 30 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Ethernet
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 11 of 30 Industrial Electronic Devices ETHERNET: The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67C52-x-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 12: Enocean
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 12 of 30 Industrial Electronic Devices ENOCEAN: EnOcean is a protocol designed for energy harvesting devices communication. The main fields of application are building automation and domotics, but it can also be potentially used in the industrial field. -
Page 13: Rs232
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 13 of 30 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed). -
Page 14: Rs485
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 14 of 30 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;... -
Page 15: Use Of Compositor Sw67C52
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 15 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67C52: To configure the Converter, use the available software that runs with Windows called SW67C52. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 16: New Configuration / Open Configuration
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 16 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “EnOcean / Modbus Slave - Converter”... -
Page 17: Software Options
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 17 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 18 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 18 of 30 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 19: Set Communication
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 19 of 30 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67C52 (Fig. 2) the window “Set Communication” appears (Fig. 3). The means for the fields for the “Modus Slave”... -
Page 20: Enocean Access
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 20 of 30 Industrial Electronic Devices ENOCEAN ACCESS: By Pressing the “EnOcean Set Access” button from the main window for SW67C52 (Fig. 2) the window “EnOcean Set Access” appears (Fig. 4). - Page 21 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 21 of 30 Industrial Electronic Devices By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics. The window “Add/Modify EnOcean device”...
- Page 22 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 22 of 30 Industrial Electronic Devices By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID. The window “Add/Modify EnOcean variable” appears (Fig.
-
Page 23: Update Device
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 23 of 30 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 24 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 24 of 30 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67C52 device. Warning: If Fig.
-
Page 25: Modbus Map
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 25 of 30 Industrial Electronic Devices MODBUS MAP: On Modbus side, the map is created automatically. In relation to the configuration defined, it is possible to have two different maps. Read with Input Register / Status Function not enabled Data in reading: Type... - Page 26 User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 26 of 30 Industrial Electronic Devices Read with Input Register / Status Function enabled Data in reading: Type Address Function Description Input Bytes 0-1 of internal array Input Register Input Bytes 2-3 of internal array Input Register Input Bytes 4-5 of internal array...
-
Page 27: Mechanical Dimensions
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 27 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67C52-x-B2 ADFweb.com S.r.l. -
Page 28: Ordering Informations
Serial Type 2: RS232 5: RS485 Device Family HD67C52: EnOcean / Modbus Slave - Converter Order Code: HD67C52-2-B2 EnOcean / Modbus Slave – Converter (Modbus port: RS232) Order Code: HD67C52-5-B2 EnOcean / Modbus Slave – Converter (Modbus port: RS485) ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 29: Disclaimer
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 29 of 30 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 30: Warranties And Technical Support
User Manual EnOcean / Modbus Slave Document code: MN67C52_ENG Revision 1.000 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
