Industrial Electronic Devices
User Manual
Revision 1.000
English
EnOcean / BACnet Slave - Converter
(Order Code: HD67C56-IP-B2, HD67C56-MSTP-B2)
For Website information:
www.adfweb.com?Product=HD67C56-B2
For Price information:
www.adfweb.com?Price=HD67C56-IP-B2
www.adfweb.com?Price=HD67C56-MSTP-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EnOcean / BACnet Slave
Document code: MN67C56_ENG
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C50
www.adfweb.com?Product=HD67C52
www.adfweb.com?Product=HD67C54
www.adfweb.com?Product=HD67C57
www.adfweb.com?Product=HD67C58
www.adfweb.com?Product=HD67C61
www.adfweb.com?Product=HD67C63
www.adfweb.com?Product=HD67C65
www.adfweb.com?Product=HD67C66
www.adfweb.com?Product=HD67C67
www.adfweb.com?Product=HD67C70
www.adfweb.com?Product=HD67C72
www.adfweb.com?Product=HD67C73
www.adfweb.com?Product=HD67C75
www.adfweb.com?Product=HD67C77
www.adfweb.com?Product=HD67C79
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 30
(Serial)
(Modbus Slave)
(Modbus TCP Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(EtherNet/IP Slave)
(IEC61850 Server)
(J1939)
(KNX)
(MQTT)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Slave)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67C56-IP-B2
Summary of Contents for ADF Web HD67C56-IP-B2

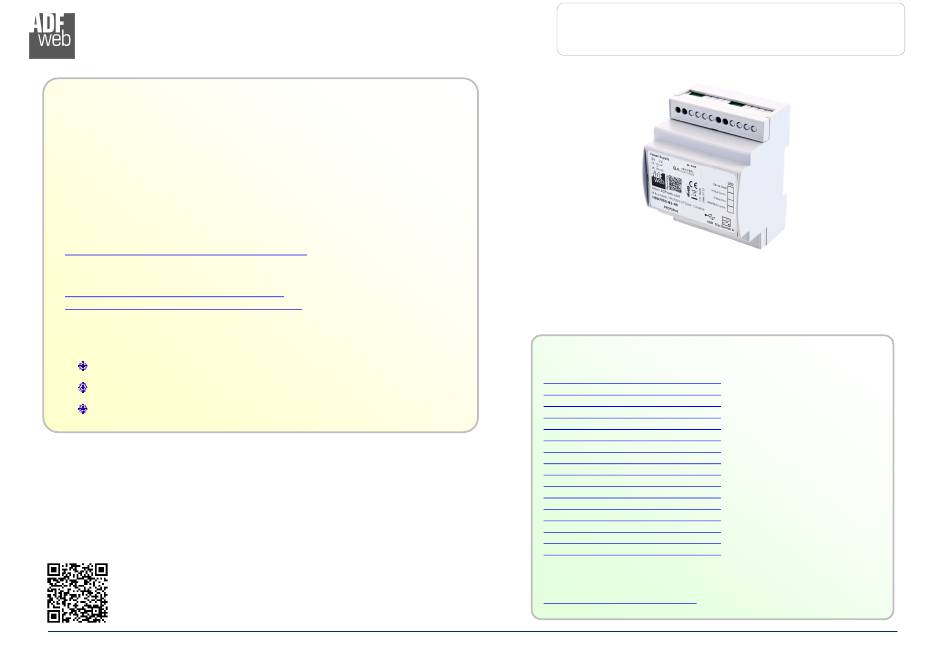

- Page 1 Revision 1.000 Page 1 of 30 Industrial Electronic Devices User Manual Revision 1.000 English EnOcean / BACnet Slave - Converter (Order Code: HD67C56-IP-B2, HD67C56-MSTP-B2) For Website information: www.adfweb.com?Product=HD67C56-B2 For Price information: www.adfweb.com?Price=HD67C56-IP-B2 www.adfweb.com?Price=HD67C56-MSTP-B2 Benefits and Main Features: For others EnOcean products, see also the following links:...
-
