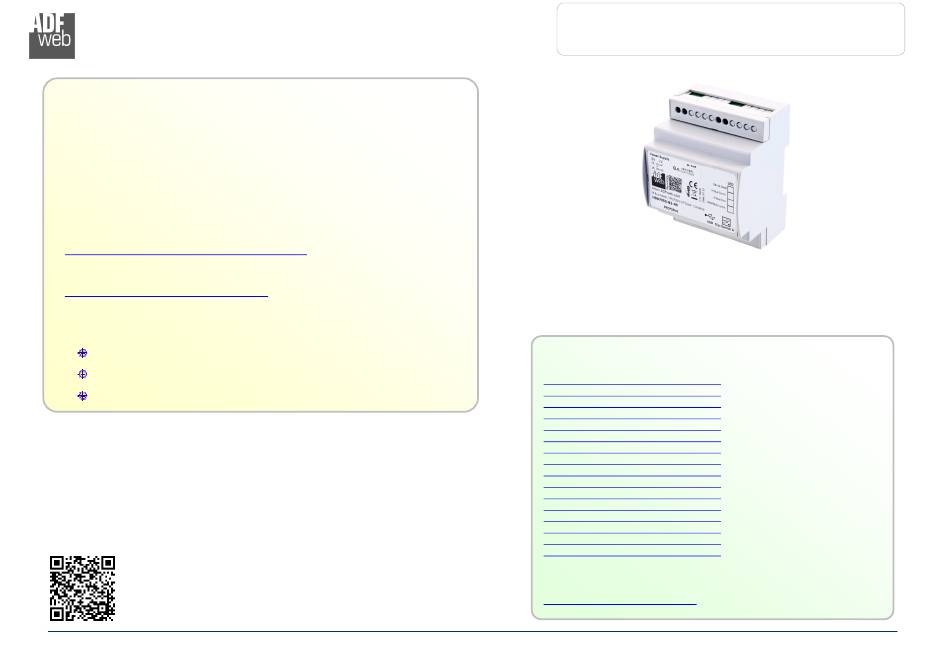

Industrial Electronic Devices
User Manual
Revision 1.000
English
EnOcean / MQTT - Converter
(Order Code: HD67C70-B2)
For Website information:
www.adfweb.com?Product=HD67C70-B2
For Price information:
www.adfweb.com?Price=HD67C70-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EnOcean / MQTT
Document code: MN67C70_ENG
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C50
www.adfweb.com?Product=HD67C52
www.adfweb.com?Product=HD67C54
www.adfweb.com?Product=HD67C56
www.adfweb.com?Product=HD67C57
www.adfweb.com?Product=HD67C58
www.adfweb.com?Product=HD67C61
www.adfweb.com?Product=HD67C63
www.adfweb.com?Product=HD67C65
www.adfweb.com?Product=HD67C66
www.adfweb.com?Product=HD67C67
www.adfweb.com?Product=HD67C72
www.adfweb.com?Product=HD67C73
www.adfweb.com?Product=HD67C75
www.adfweb.com?Product=HD67C77
www.adfweb.com?Product=HD67C79
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 31
(Serial)
(Modbus Slave)
(Modbus TCP Slave)
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(EtherNet/IP Slave)
(IEC61850 Server)
(J1939)
(KNX)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Slave)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67C70-B2
Summary of Contents for ADF Web HD67C70-B2
- Page 1 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.000 English EnOcean / MQTT - Converter (Order Code: HD67C70-B2) For Website information: www.adfweb.com?Product=HD67C70-B2 For Price information: www.adfweb.com?Price=HD67C70-B2 Benefits and Main Features: For others EnOcean products, see also the following links:...
-
Page 2: Table Of Contents
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 4 of 31 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67C70-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
Revision 1.000 Page 6 of 31 Industrial Electronic Devices CHARACTERISTICS: The HD67C70-B2 is a EnOcean / MQTT Converter. It allows the following characteristics: Electrical isolation between Ethernet and Power Supply; Mountable on 35mm Rail DIN; Wide power supply input range: 18…35V DC and 8…24V AC;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67C70-B2 Caution: Not reverse the polarity power HD67C70-B2 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 8 of 31 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 9 of 31 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
The Ethernet port is used for programming the device and for MQTT communication. The Ethernet connection must be made using Connector2 of HD67C70-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 11: Enocean
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 11 of 31 Industrial Electronic Devices ENOCEAN: EnOcean is a protocol designed for energy harvesting devices communication. The main fields of application are building automation and domotics, but it can also be potentially used in the industrial field. -
Page 12: Use Of Compositor Sw67C70
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 12 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67C70: To configure the Converter, use the available software that runs with Windows called SW67C70. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 13 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “EnOcean / MQTT - Converter”... -
Page 14: Software Options
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 14 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 15 of 31 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 16: Set Communication
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 16 of 31 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67C70 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: MQTT... - Page 17 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 17 of 31 Industrial Electronic Devices MQTT: This section is used to define the main parameters of MQTT line. The means of the fields are: In the field “Server URL”...
- Page 18 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 18 of 31 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address” the IP address of the converter is defined; In the field “SubNet Mask”...
- Page 19 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 19 of 31 Industrial Electronic Devices NTP (N ETWORK ROTOCOL This section is used to define the parameters of NTP protocol. The means of the fields are: In the field “Server URL”...
-
Page 20: Enocean Access
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 20 of 31 Industrial Electronic Devices ENOCEAN ACCESS: By Pressing the “EnOcean Set Access” button from the main window for SW67C70 (Fig. 2) the window “EnOcean Set Access” appears (Fig. 4). - Page 21 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 21 of 31 Industrial Electronic Devices By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics. The window “Add/Modify EnOcean device”...
- Page 22 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 22 of 31 Industrial Electronic Devices By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID. The window “Add/Modify EnOcean variable” appears (Fig.
-
Page 23: Mqtt Set Topic
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 23 of 31 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67C70 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 7). This section is used to define the MQTT topics where the converter will publish the data from EnOcean data and the topic that the converter will subscribes for writing the data to EnOcean data. - Page 24 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 24 of 31 Industrial Electronic Devices MQTT S UBSCRIBE Figure 7b: “Set MQTT Topics MQTT Subscribe” window The means of the fields are: In the field “Topic” the MQTT topic is defined; If the field “Retained”...
-
Page 25: Update Device
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 25 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 26 User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 26 of 31 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67C70 device. Warning: If Fig. 9 appears when you try to do the Update try these points before seeking assistance: Check if the serial COM port selected is the correct one;...
-
Page 27: Template String: Definition Of Mqtt Payload
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 27 of 31 Industrial Electronic Devices TEMPLATE STRING: DEFINITION OF MQTT PAYLOAD In the section “Set Communication” of the SW67C70, it is possible to define a Template string for the MQTT messages. The template is necessary in order to define the structure of the payload of the MQTT message and the info contained. -
Page 28: Mechanical Dimensions
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 28 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67C70-B2 ADFweb.com S.r.l. -
Page 29: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67C70: EnOcean / MQTT - Converter Order Code: HD67C70-B2 EnOcean / MQTT – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 30: Disclaimer
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 31: Warranties And Technical Support
User Manual EnOcean / MQTT Document code: MN67C70_ENG Revision 1.000 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
