Humanscale Float Gather Assembly Instructions Manual page 5

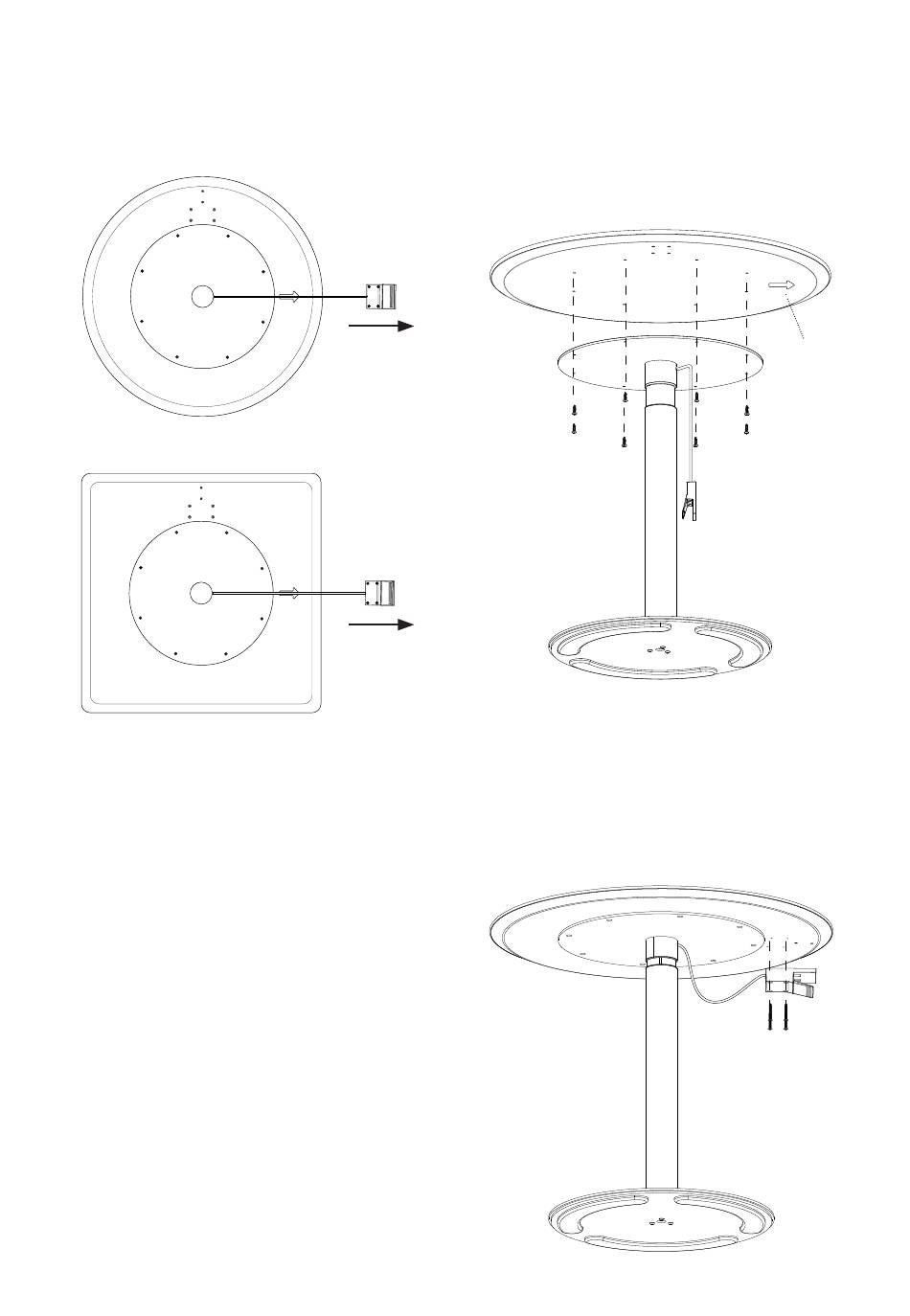

Attach work surface to mounting plate
4
Place the work surface on the mounting plate. Rotate the work surface so the arrow sticker
aligns direction with the height actuator cable. Refer to the (bottom view) shown below.
Assemble the work surface to the mounting plate with the #10x19mm (8) screws.
Remove the arrow sticker and discard.
(Bottom view, Round)
(Bottom view, Square)
Attach height actuator
5
Secure the actuator to the worksurface
using the #8x38mm (4) screws provided.
Cable exit, this direction
Cable exit, this direction
Arrow sticker
5
