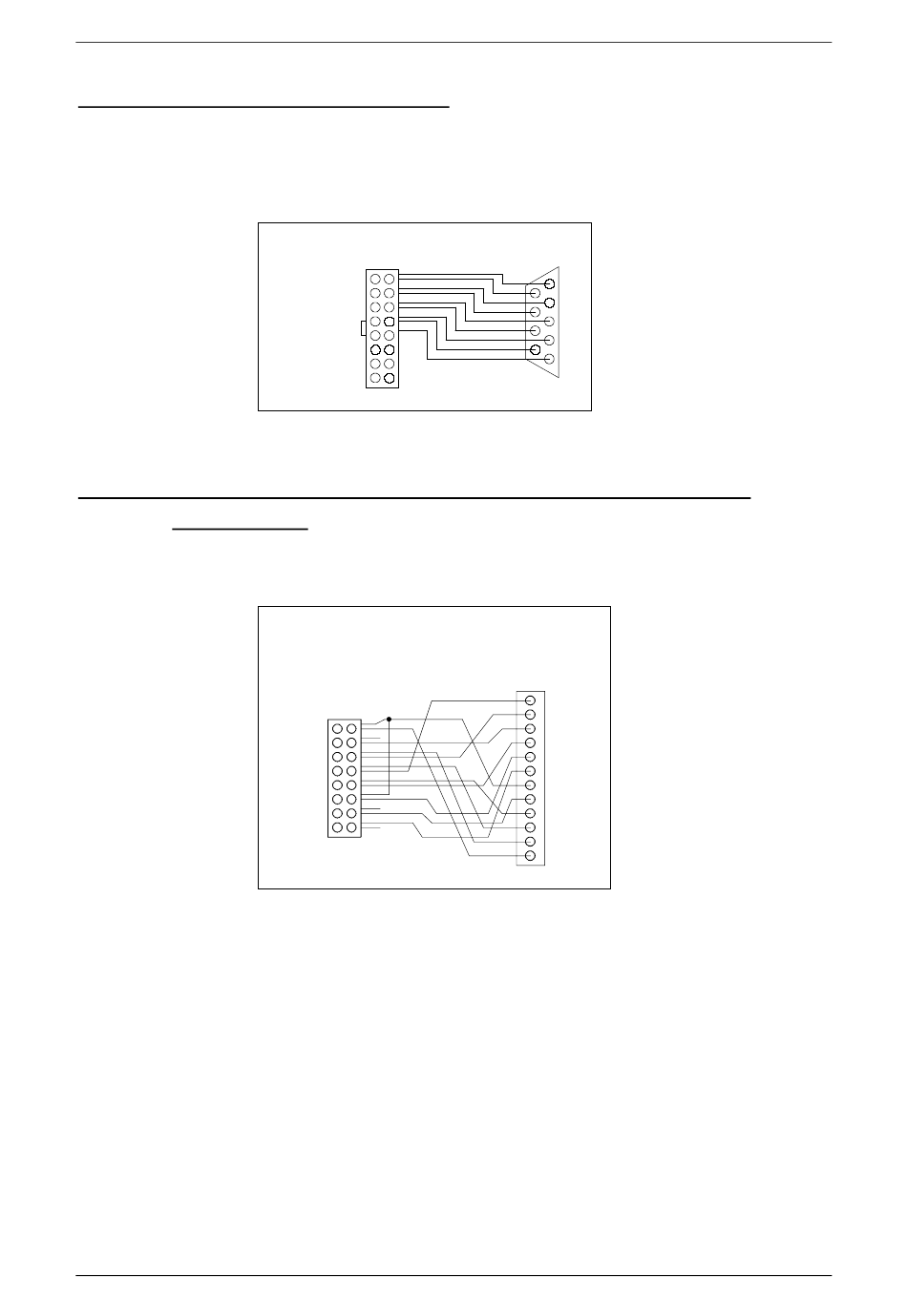

11.4 The CGA monitor cable
IDT Terminal for Dual Row 0.1" (2.54mm grid) and 1.27mm flat cable. Cut the Pin 7 of the DSUB
connector or pin 4 of the IDT Header, if this pin isn't left open in the Monitor !
11.5 The LCD cable (for Solomon Type 6080 200x640
Mono-LCD)
IDT Terminal for Dual Row 0.1" (2.54mm grid) and 1.27mm flat cable
Pin A7 is the LCD VEE supply (for typ 6080 use -21 Volt)
ATTENTION: Do not connect the VEE voltage with an other signal line. It could de-
stroy the drive or the MICROSPACE board. Be very careful. There is
no warranty in this case.
CGA Monitorcable
1 2
line of pin1
15 16
LCD Cable for Solomon Type 6080 (200x640)
Mono LCD
1 2
15 16
48
MSM286 Manual V6.4
1
6
2
7
3
8
4
9
5
1
2
3
4
5
6
7
8
9
10
11
12
