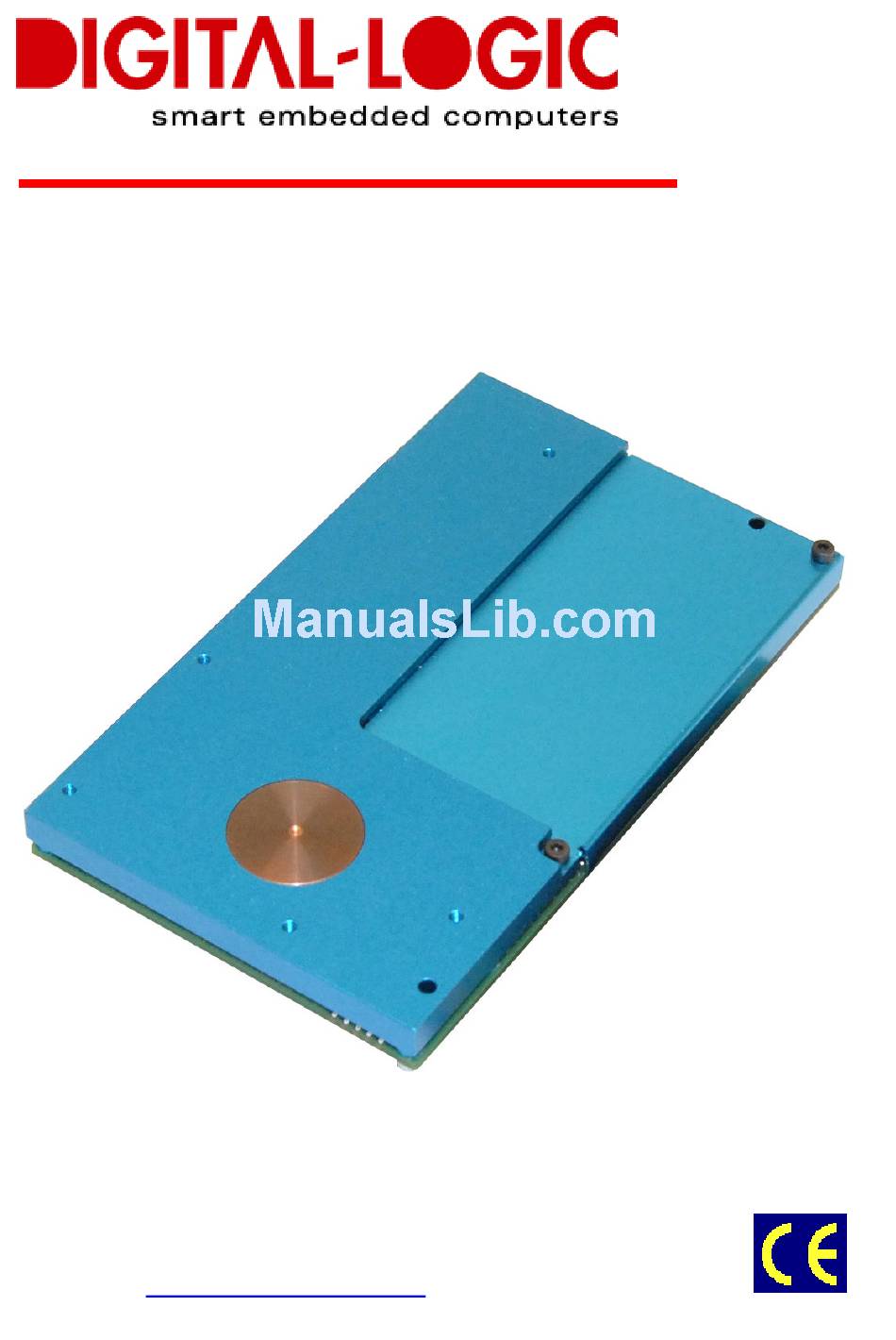

- Page 1 Condensed USER MANUAL FOR: SmartModule Express SMX945 Nordstrasse 11/F CH - 4542 Luterbach Tel.: ++41 (0)32 681 58 00 Fax: ++41 (0)32 681 58 01 Email: support@digitallogic.com Homepage: http://www.digitallogic.com...
-
Page 2: Revision History
DIGITAL-LOGIC AG For internal use only: File: SMX945_Condensed_V1.0A.doc Path: R:\HANDBUCH\smart\SMX945\SMX945_Condensed_V1.0A.doc COPYRIGHT © © © © 2007 BY DIGITAL-LOGIC AG This publication is protected by copyright and all rights are reserved. No part of this document may be reproduced, transmitted, transcribed or stored in a retrieval system, in any form or by any means, electronic, mechanical, optical, manual, or otherwise, without the prior written permission of DIGITAL-LOGIC AG. -
Page 3: Table Of Contents
DIGITAL-LOGIC AG Table of Contents ...4 REFACE 1.1. Trademarks ... 4 1.2. Disclaimer ... 4 1.3. Environmental Protection Statement ... 4 1.4. Who should use this Product ... 4 1.5. Recycling Information... 5 1.6. Technical Support ... 5 1.7. Limited Two Year Warranty ... 5 1.8. -
Page 4: Preface
DIGITAL-LOGIC AG 1. P REFACE The information contained in this manual has been carefully checked and is believed to be accurate; it is subject to change without notice. Product advances mean that some specifications may have changed. DIGITAL-LOGIC AG assumes no responsibility for any inaccuracies, or the consequences thereof, that may appear in this manual. -
Page 5: Recycling Information
DIGITAL-LOGIC AG 1.5. Recycling Information All components within this product fulfill the requirements of the RoHS (Restriction of Hazardous Substances Directive). The product is soldered with a lead free process. 1.6. Technical Support 1. Contact your local DIGITAL-LOGIC Technical Support, in your country. 2. -
Page 6: Explanation Of Symbols
DIGITAL-LOGIC AG 1.8. Explanation of Symbols CE Conformity This symbol indicates that the product described in this manual is in compliance with all applied CE standards. Caution, Electric Shock! This symbol and title warn of hazards due to electrical shocks (> 60V) when touching products or parts of them. -
Page 7: Applicable Documents And Standards
Advanced Configuration and Power Interface Specification Revision 2.0c, August 25, 2003 Copyright © 1996-2003 Compaq Computer Corporation, Intel Corporation, Microsoft Corporation, Phoenix Technologies Ltd., Toshiba Corporation. All rights reserved. ANSI/TIA/EIA-644-A-2001: Electrical Characteristics of Low Voltage Differential Signaling (LVDS) Interface Circuits, January 1, 2001. -
Page 8: For Your Safety
Technology Inc., Maxim Integrated Products, Mitsubishi Electric Semiconductor Company, Power- Smart, Inc., Toshiba Battery Co. Ltd., Unitrode Corporation, USAR Systems, Inc. All rights reserved. http://www.smbus.org/ Universal Serial Bus Specification Revision 2.0, April 27, 2000 Copyright © 2000 Compaq Computer Corporation, Hewlett-Packard Company, Intel Corporation, Lucent Technologies Inc., Microsoft Corporation, Corporation, http://www.usb.org/... -
Page 9: Rohs Compatible Product Design
DIGITAL-LOGIC AG RoHS is often referred to as the "lead-free" directive but it restricts the use of the following substances: Lead Mercury Cadmium Chromium VI PBB and PBDE The maximum allowable concentration of any of the above mentioned substances is 0.1% (except for Cadmium, which is limited to 0.01%) by weight of homogeneous material. -
Page 10: Overview
DIGITAL-LOGIC AG 2. O VERVIEW 2.1. Standard Features The smartModuleExpress945 is a miniaturized PC system on chip unit incorporating the major elements of a PC/AT compatible computer. It includes standard PC/AT compatible elements, such as: Powerful Core Duo, Core 2 Duo, Core Solo CPU DDR2 SODIMM socket for 256MByte to 2GByte RAM-Module Dual 220pin connectors (1 COMexpress Bus Type 2... -
Page 11: Block Diagram
DIGITAL-LOGIC AG SMX945 Condensed Manual V1.0A 2.3. Block Diagram * This function is disabled. A Macrovision license is required to enable it. -
Page 12: Specifications
DIGITAL-LOGIC AG 2.4. Specifications CoreDuo / Celeron M Clock Level Cache Level Cache Technology VCCCore @ 1.6GHz VCCCore @ 0.6GHz VCCCore @ deep sleep CPU-Bus AGTL+ Termination Mathematics Coprocessor Intel 945GME Graphics Memory Controller Hub Memory Controller Supports Socket Technologies Capacity Voltage Termination... - Page 13 DIGITAL-LOGIC AG Intel 945GME Graphics PEG PEG Controller Alternative to the internal graphic controller Multiplexed with the SDVO signals Support Mode Voltage Signals Intel 82801DBM (ICH7DH) PCI-Bus EIDE-Bus SATA-Bus USB V2.0 APIC Sound IRQ Controller Timers Power Management Reset & Power Management Controller Power Modes ACPI...
- Page 14 DIGITAL-LOGIC AG Physical Characteristics Dimensions Weight PCB Thickness PCB Layer Operating Environment Relative Humidity Vibration Shock Operating Temperature Maximum Copper Temperature Storage Temperature EMI / EMC (IEC1131-2 refer MIL 461/462) ESD Electro Static Discharge REF Radiated Electromagnetic Field EFT Electric Fast Transient (Burst) SIR Surge Immunity Requirements High-Frequency Radiation All information is subject to change without notice.
-
Page 15: Examples Of Ordering Codes
DIGITAL-LOGIC AG 2.5. Examples of Ordering Codes Product Name Part Number SMX945-C423 805360 SMX945-C440 805354 SMX945-L2400 805350 SMX945-L7400 805352 These are only examples; for current ordering codes, please see the current price list. 2.6. Related Application Notes Application Notes are available at Application CD. -
Page 16: Preparation
DIGITAL-LOGIC AG 3. P REPARATION Warning, ESD Sensitive Device! Place the embedded computer board on an isolated, ESD-protected surface. Also ensure that all equipment, tools and people are fully protected against ESD. 3.1. Print Detailed Manuals from the CD Note… Place the Product-CD into the CD-Drive of a personal computer with a connected printer. -
Page 17: Connect Peripherals To The Board
DIGITAL-LOGIC AG 3.2. Connect Peripherals to the Board Prepare the following peripherals: VGA Monitor (LCD or CRT) with a resolution up to 1024x768pixel PS2 Keyboard USB Mouse LAN-Cable, if available Hard disk or CompactFlash USB CD-Drive or Floppy drive Power supply with 12Volt and min. 30Watts 1. -
Page 18: Start U P / Power Off The Board
DIGITAL-LOGIC AG 4. S TART With the PWRBTN# signal, the system can be started. Activating this signal a second time will shut the system down. How to Activate PWRBTN# The PWRBTN# signal must be connected to a ground to be activated. Minimum activation time is 3 seconds for the controller to start/stop the system. - Page 19 DIGITAL-LOGIC AG SMX945 Condensed Manual V1.0A...
-
Page 20: Bios Setup
DIGITAL-LOGIC AG SMX945 Condensed Manual V1.0A 4.1. BIOS Setup Since the BIOS is auto-configuring during the start-up procedure, normally the user does not enter the BIOS setup. Manual setup is needed only to change the default settings. Please refer to the driver/software/BIOS manual “SMX945_BIOS”... -
Page 21: Index
DIGITAL-LOGIC AG 5. I NDEX Application Notes ... 15 BIOS Setup ... 20 Block Diagram... 11 Boot Up the OS ... 20 BUS... 13 Connect Peripherals... 17 Coprocessor... 12, 13 Detailed Manuals ... 16 Development Kit... 17 Disclaimer ... 4 Dog ...
