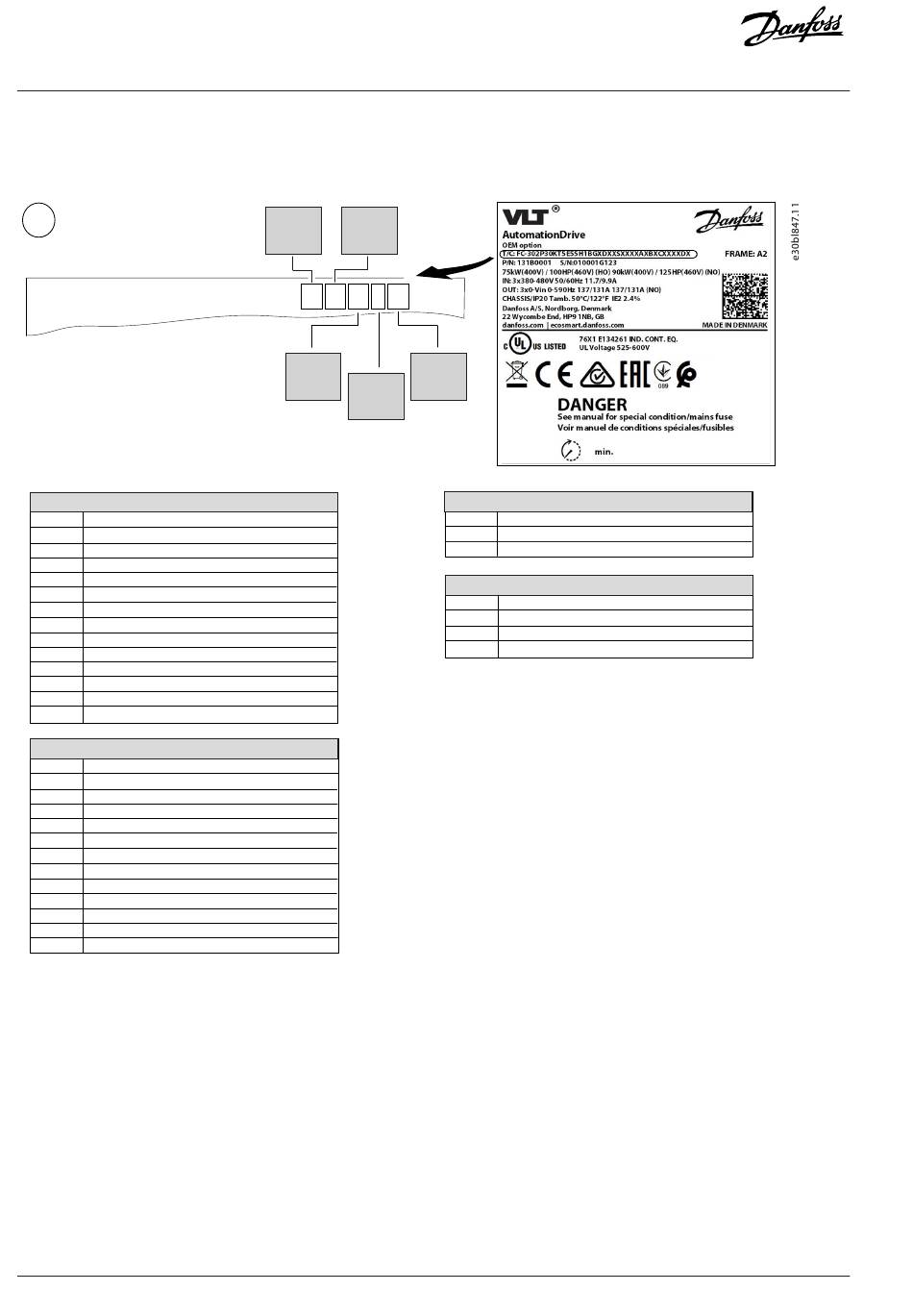

Danfoss FC 102 Installation Manual page 74

VLT Frequency Converters, 0.25–90 kW
Illustrations / Илюстрации / Εικόνες / 図 / Ilustracije / Obrázky /
Crteži / Ilustrasi / ภาพประกอบ /  ‫ﻪ‬  ‫ﺤ‬   ‫ ﻮﺻ‬  ‫اﻟﺮﺳﻮم اﻟ‬
1
T/C: FC-302P30KT5E55H1BGXDXXSXXXX AX BX CX X XX DX
A
(29–30)
AX –
VLT® PROFIBUS DP V1 MCA 101
A0
A4 VLT® DeviceNet MCA 104
A6 VLT® CANopen MCA 105
VLT® EtherCAT/IP MCA 124
A8
AG VLT® LonWorks MCA 108
AJ VLT® BACnet MCA 109
AK VLT® BACnet/IP MCA 125
VLT® PROFINET MCA 120
AL
AN VLT® EtherNet/IP MCA 121
VLT® POWERLINK MCA 122
AQ
VLT® PROFIBUS Converter MCA 113
AT
AU VLT® PROFIBUS Converter MCA 114
AY VLT® Powerlink MCA 123
B
(31–32)
–
BX
B0 VLT® Analog I/O Option MCB 109
B2 VLT® PTC Thermistor Card MCB 112
VLT® Sensor Input MCB 114
B4
B6 VLT® Safety Option MCB 150
B7 VLT® Safety Option MCB 151
VLT® Safety Option MCB 152
B8
VLT® General Purpose I/O MCB 101
BK
BP VLT® Relay Card MCB 105
BR VLT® Encoder Input MCB 102
BU VLT® Resolver Input MCB 103
BY VLT® Extended Cascade Controller MCO 101
VLT® Safe PLC I/O MCB 108
BZ
74 | Danfoss A/S © 2025.02
A B
(29–30) (31–32)
C
C0
C1
(33–34) (36–37)
(35)
( ) ( )
C1
(35)
X –
VLT® Extended Relay Card MCB 113
R
7 VLT® Sensorless Safety MCB 159
+
C0 C
(33–34) (36–37)
–
CX_XX
C4_XX VLT® Motion Control Option MCO 305
C4_10 VLT® Synchronizing Controller MCO 350
C4_11 VLT® Position Controller MCO 351
AN41701953385303-000301 / 130R1279
