Summary of Contents for Glow Bricks LEGO 76294

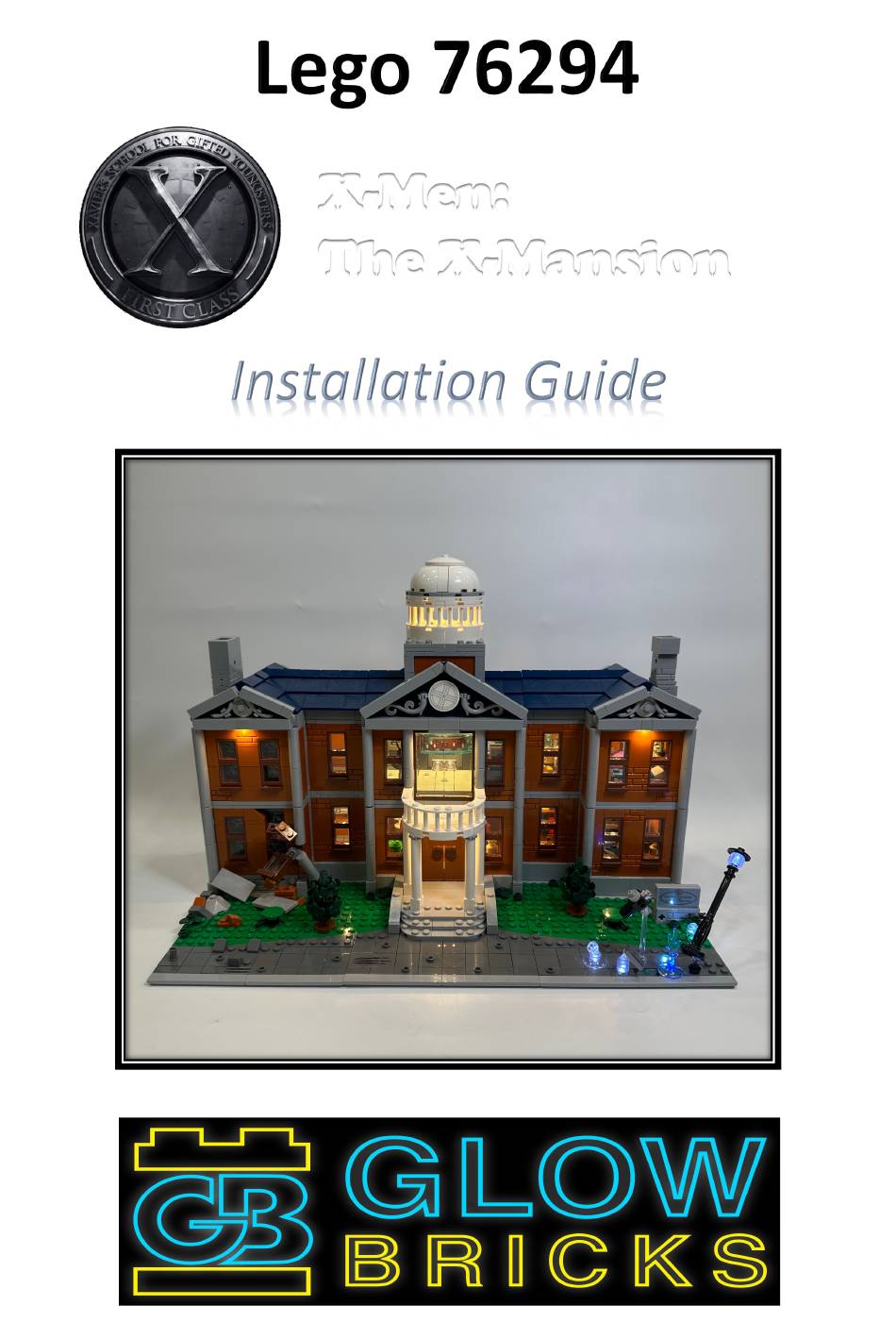

- Page 1 X-Men: The X-Mansion...
- Page 2 Split the X-Mansion, and the lighting parts ABC would be assembled to the corresponding session...
- Page 3 Before assembling the lighting part A, split the session by layer first Get the 1x4 lighting plate and place it at the shown area, use the studs by removing the shown tiles to stable wires...
- Page 4 Replace the red and green round plates and the flames on the wall by the lighting parts Then replace the red round plates on the other side The wires could be hidden inside the gap of the removed walls...
- Page 5 Restore the tiles removed and leave the connectors out Put the 2 floor back on top and place the lighting plate as the ceiling light...
- Page 6 Remove the clear round tile and the clear red bars from the model to combine them with the lighting part Take out a wall and place the lighting parts on it...
- Page 7 Assemble the other lighting parts on the corners, place the lighting plate on top of the room and stable the wires by the studs same as the ground floor Restore the tiles, connect the plugs with downstairs and place them on the back (red circle), and place the led plate outside...
- Page 8 Put the roof on and assemble the brown 1x4 lighting plate Stick the led plate as shown...
- Page 9 Now it’s turn for lighting part B, split the mansion by layer first Detach the white plate from the entrance and assemble the 1x4 lighting plate as shown...
- Page 10 Restore the white balcony, place the wire in between the studs before combining them Get the 2 floor, assemble the grey lighting plate place the wires out from the back then combine the floor...
- Page 11 Get the roof and assemble the lighting parts as shown and stick the grey lighting tiles on the front Move the connect with white cable through the hole in the red circle...
- Page 12 Combine the building and connect the plugs The connector with white cable would be passed through to the top...
- Page 13 Assemble the 4pcs of 1x1 lighting plates Connect the plugs then put the top back on the mansion...
- Page 14 For lighting part C, the one with lamppost would be assembled outside of the mansion Start by detaching the parts and tiles on the ground as shown Assemble the lighting parts as shown, the wire must be placed in between the studs...
- Page 15 Now you can restore the parts on it To avoid breaking the cable, please assemble the lamppost on the corner instead of the hole in the middle...
- Page 16 Place the wire in between the studs and move the connect to the back Lift up the 2 floor and assemble the lighting plates as shown...
- Page 17 Move the remain lighting parts to the top floor, assemble them as shown and stick the led plate (red circle) Place the wire at behind and the lighting part C is finished assembling...
- Page 18 At last, combine the whole mansion and connect all four connectors with the USB cable then you may light it up...
