Thunder-KS I
USER GUIDE

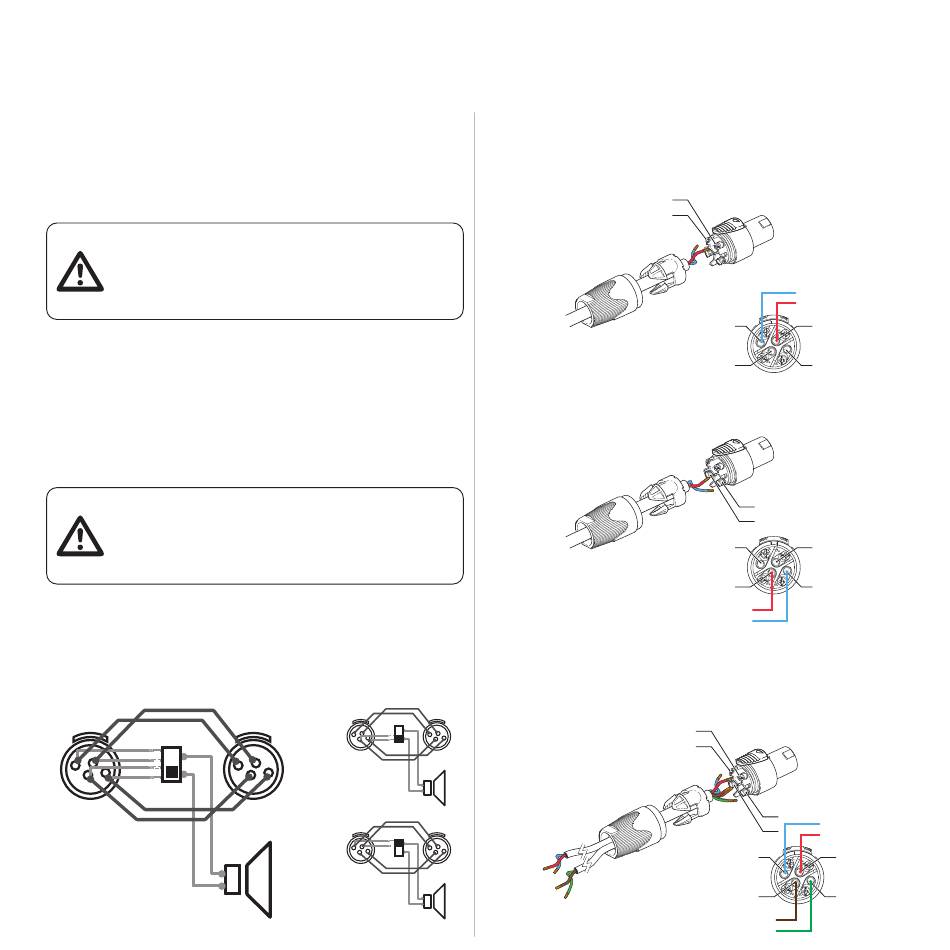

Thunder-KSP Speaker Input
The NL4 speakON connectors on the K-array Thunder-KSP
passive subwoofers back panel may accept analog signals on
either +1 –1 terminals, or +2 –2 terminals.
By default the Thunder-KSP passive subwoofers
transducer(s) are connected to the
NL4 speakON +2 –2 terminals:
signal polarity is +2 HOT, –2 COLD.
Both NL4 speakON connectors can be used to fed the input
signal: either +1 –1 terminals and +2 –2 terminals are pass-
though.
The terminals switch allows you to swap the internal
transducer(s) leads assignment to the speakON terminals.
Ensure that the NO input cables are connected
to the NL4 speakON connectors before toggling
the terminal switch.
The terminals switch is not present on the Thunder-KS3PM I
marine version rear panel. The Thunder-KS3PM I passive
subwoofer accept input signals on speakON terminals +2 –2.
1–
1+
2+
2–
A
SpeakOn to transducer
internal wiring
12
2+
2–
Sub on +2-2
[DEFAULT]
B
1–
1+
Sub on +1-1
SpeakON Cable Default Wiring
One-channel wiring
Hi/Mid- and full-range loudspeakers are usually wired on +1 -1.
Subwoofers are usually wired on +2 -2.
Two-channel wiring
Hi/Mid-range usually wired on +1 -1.
Low-sub usually wired on +2 -2.
+1
–1
Spk–
Spk+
–1 +1
SpeakON NL4
connector
+2 –2
–2
+2
–1 +1
SpeakON NL4
connector
+2 –2
Spk+
Spk–
+1
–1
–2
Spk–
+2
Spk+
–1 +1
SpeakON NL4
connector
+2 –2
Spk+
Spk–
