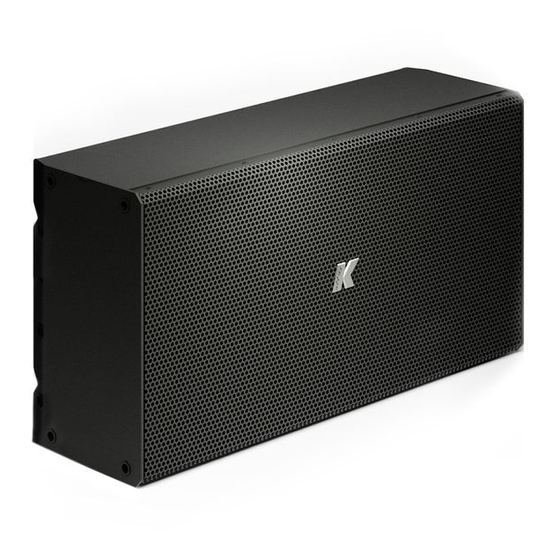

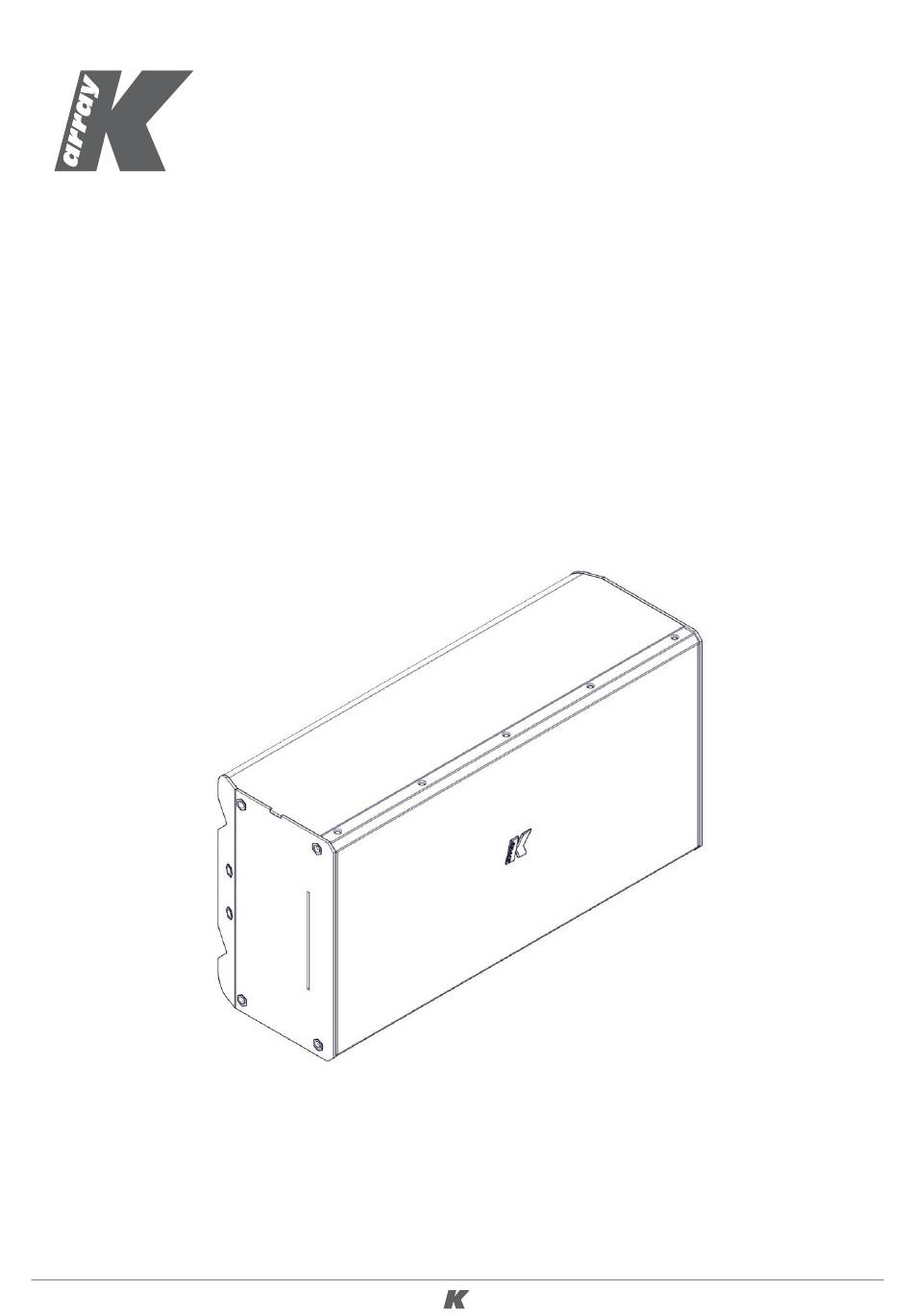

- Page 1 KU26 Ver. 1.3 KU26 USER GUIDE English...
-
Page 2: Table Of Contents
KU26 Ver. 1.3 TABLE OF CONTENTS SYMBOLS ................3 1. INTRODUCTION ..............4 2. KEY FEATURES ..............4 3. APPLICATIONS ............... 4 4. PACKAgE CONTENTS .............. 4 5. SAFETY INFORMATION ............5 6. UNPACKINg ................. 6 7. PhYSICAL ................6 .......... -
Page 3: Symbols
KU26 Ver. 1.3 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction
6” Neodymium transducer and one 6” passive radiator, engineered for maximum linear excursion and minimum residual noise. With a frequency range of 45Hz to 150Hz, the KU26 is a companion to the K-array Lyzard, Vyper, and Tornado speakers. The combination provides full range frequency response with prodigious output and a virtually invisible profile. -
Page 5: Safety Information
KU26 Ver. 1.3 5. SAFETY INFORMATION Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. -
Page 6: Unpacking
Ver. 1.3 6. UNPACKINg Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment. -
Page 7: Mounting Screw Holes For Accessories
KU26 Ver. 1.3 7.1 MOUNTINg SCREw hOLES FOR ACCESSORIES Mounting screw holes for wall brackets Mounting screw holes for K-JOINT2... -
Page 8: Wiring
Ver. 1.3 8. wIRINg The KU26 is comprised of a 6” neodymium transducer, combined with a 6” passive transducer. The neodymium transducer features a double voice-coil (16Ω + 16Ω). The two voice coils can be wired in parallel (resulting in a 8Ω total impedance) or in serial (resulting in a 32Ω... -
Page 9: K-2Spk Accessory
Ver. 1.3 8.1 K-2SPK ACCESSORY This accessory is used to connect a Speakon cable to a KU26. It features two Speakon connectors wired in parallel giving you the possibility to wire two or more KU26s in parallel using only Speakon cables. -
Page 10: Ka1-Ub Amplifier
Ver. 1.3 9. KA1-UB AMPLIFIER Born as a passive speaker, the KU26 can be turned into a self-powered speaker by inserting the KA1-UB amplifier module in the back. The KA1-UB works at 48v. We recommend to use K-array 48v power supplies: K-AL240-48 and K-AL480-48. -
Page 11: Set Up
Ver. 1.3 10. SET UP 10.1 RUBBER FEET MOUNTINg KU26 can be positioned on a flat surface both in horizontal and in vertical position thanks to the four rubber feet included. KU26 in horizontal position on a flat surface KU26 in vertical position on a flat surface... -
Page 12: Hanging Setup
The KU26 can be mounted on the wall using the two included wall brackets. 10.3 TILTINg ThE SYSTEM When a tilting angle is necessary, the KU26 can be mounted on the wall with the K-WALL2L or K-WALL2 accessories (not included). -
Page 13: Flushed Wall Mount
KU26 Ver. 1.3 10.4 FLUShED wALL MOUNT The KU26 can be easily flush mounted in wall thanks to the K-WF26 accessory (not included). The frame is affixed magnetically... -
Page 14: Service
11. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 15: Technical Specifications
Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. -
Page 16: Certification
KU26 Ver. 1.3 13. CERTIFICATION DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand K-ARRAY Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY Date of Issue: 01 / 10 / 2015 Model Code: KU26, KU26W Declaration: Complies with safety essential requirements of Council Directive 2004/108/EC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.
