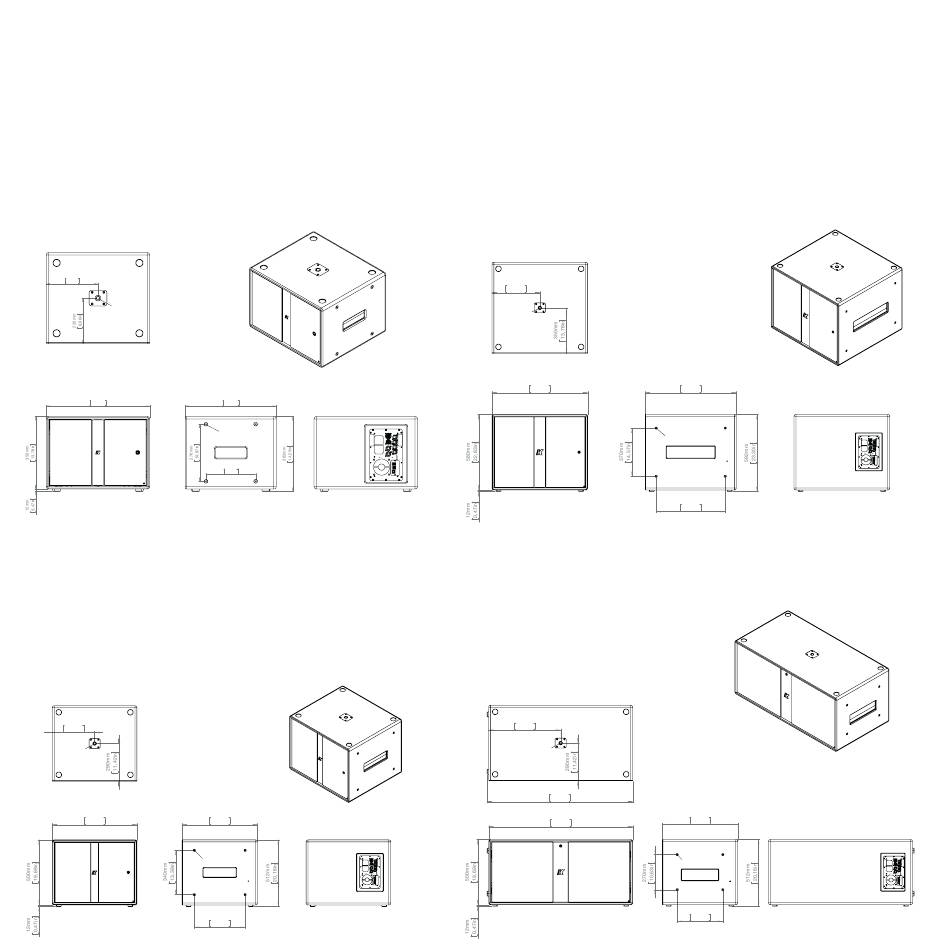

Mechanical drawings
Thunder-KS1 I/KS1P I
250mm
9,84in
M20
500mm
19,69in
Thunder-KS2 I/KS2P I
325mm
12,80in
M20
325mm
12,80in
650mm
25,59in
M20
650mm 580mm
25,59in 22,83in
M8
440mm
17,32in
M8
240mm
9,45in
580mm
22,83in
M8
390mm
15,35in
Thunder-KS3 I/KS4P I
368mm
14,47in
M20
368mm
14,47in
M20
735mm
28,94in
735mm 700mm
28,94in 27,56in
M8
530mm
20,87in
Thunder-KS4 I/KS4P I
553mm
21,77in
M20
1119mm
44,05in
1106mm
43,54in
Thunder-KS I
USER GUIDE
700mm
27,56in
M8
530mm
20,87in
580mm
22,83in
M8
350mm
13,78in
