KU210 Ver. 1.4 TABLE OF CONTENTS SYMBOLS ................3 1. INTRODUCTION ..............4 2. KEY FEATURES ..............4 3. APPLICATIONS ............... 4 4. PACKAgE CONTENTS .............. 4 5. SAFETY INFORMATION ............5 6. UNPACKINg ................. 6 7. PhYSICAL ................6 .......... -
Page 2: Table Of Contents
KU210 Ver. 1.2 TABLE OF CONTENTS SYMBOLS ................3 1. INTRODUCTION ..............4 2. KEY FEATURES ..............4 3. APPLICATION ................ 4 4. PACKAgE CONTENTS .............. 4 5. SAFETY INFORMATION ............5 6. UNPACKINg ................. 6 7. PhYSICAL ................6 .......... -
Page 3: Symbols
KU210 Ver. 1.4 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 3: Symbols
KU210 Ver. 1.2 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction

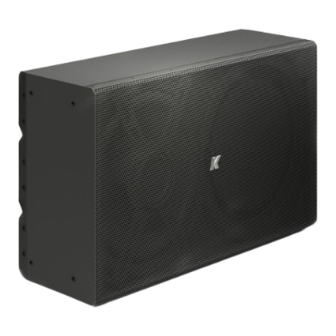

The KU210 is an ultra thin, high performance passive subwoofer designed to be the perfect companion to any of the K-array Installed Sound Series. A combination of extended frequency response with prodigious output and a virtually invisible profile make the KU210 an ideal fit even the most ambitious projects. -
Page 4: Introduction
The KU210 is an ultra thin, high performance passive subwoofer designed to be the perfect companion to any of the K-array Installed Sound Series. A combination of extended frequency response with prodigious output and a virtually invisible profile make the KU210 an ideal fit even the most ambitious projects. -
Page 5: Safety Information
KU210 Ver. 1.4 5. SAFETY INFORMATION Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. -
Page 5: Safety Information
KU210 Ver. 1.2 5. SAFETY INFORMATION Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. -
Page 6: Unpacking
Ver. 1.4 6. UNPACKINg Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment. -
Page 6: Unpacking
Ver. 1.2 6. UNPACKINg Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment. -
Page 7: Mounting Screw Holes For Accessories
KU210 Ver. 1.4 7.1 MOUNTINg SCREw hOLES FOR ACCESSORIES Mounting screw holes for wall brackets Mounting screw holes for K-JOINT2... -
Page 7: Mounting Screw Holes For Accessories
KU210 Ver. 1.2 7.1 MOUNTINg SCREw hOLES FOR ACCESSORIES Mounting screw holes for wall brackets Mounting screw holes for K-JOINT2... -
Page 8: Wiring
Ver. 1.4 8. wIRINg The KU210 is comprised of a neodymium transducer, combined with a 10” passive transducer. The neodymium transducer features a double voice-coil (8Ω + 8Ω). The two voice coils can be wired in parallel (resulting in a 4Ω total impedance) or in serial (resulting in a 16Ω... -
Page 8: Wiring
Ver. 1.2 8. wIRINg The KU210 is comprised of a neodymium transducer, combined with a 10” passive transducer. The neodymium transducer features a double voice-coil (8Ω + 8Ω). T The two voice coils can be wired in parallel (resulting in a 4Ω total impedance) or in serial (resulting in a 16Ω... -
Page 9: K-2Spk Accessory
Ver. 1.4 8.1 K-2SPK ACCESSORY This accessory is used to connect a Speakon cable to a KU210. It features two Speakon connectors wired in parallel giving you the possibility to wire two or more KU210s in parallel using only Speakon cables. -
Page 9: K-2Spk Accessory
Ver. 1.2 8.1 K-2SPK ACCESSORY This accessory is used to connect a Speakon cable to a KU210. It features two Speakon connectors wired in parallel giving you the possibility to wire two or more KU210s in parallel using only Speakon cables. -
Page 10: Set Up
Ver. 1.4 9. SET UP 9.1 RUBBER FEET MOUNTINg KU210 can be positioned on a flat surface both in horizontal and in vertical position thanks to the four rubber feet included. KU210 in horizontal position on a flat surface KU210 in vertical position on a flat surface... -
Page 10: Set Up
Ver. 1.2 9. SET UP 9.1 RUBBER FEET MOUNTINg KU210 can be positioned on a flat surface both in horizontal and in vertical position thanks to the four rubber feet included. KU210 in horizontal position on a flat surface KU210 in vertical position on a flat surface... -
Page 11: Hanging On The Wall
9.2 hANgINg SETUP The KU210 can be mounted on the wall using the four included wall brackets. 9.3 TILTINg ThE SYSTEM When a tilting angle is necessary, the KU210 can be mounted on the wall with the K-WALL2 accessory (not included). -
Page 11: Hanging On The Wall
KU210 Ver. 1.2 9.2 hANgINg ON ThE wALL Thge KU210 can be mounted on the wall with the K-WALL2 accessory (not included). K-WALL2 accessory... -
Page 12: Service
KU210 Ver. 1.4 9.4 FLUShED wALL MOUNT The KU210 can be easily flush mounted in wall thanks to the K-WF210 accessory (not included). The frame is affixed magnetically... -
Page 12: Service
10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 13: Technical Specifications
10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 13: Technical Specifications
Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. -
Page 14: Certification
Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. -
Page 14: Certification
Paolina Romagnoli 17 50038 Scarperia e S. Piero – Firenze - ITALY Date of Issue: 05 / 05 / 2015 Model(s) Code: KU210 – KU210W Declaration: Complies with safety essential requirements of Council Directive 2004/108/EC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.
