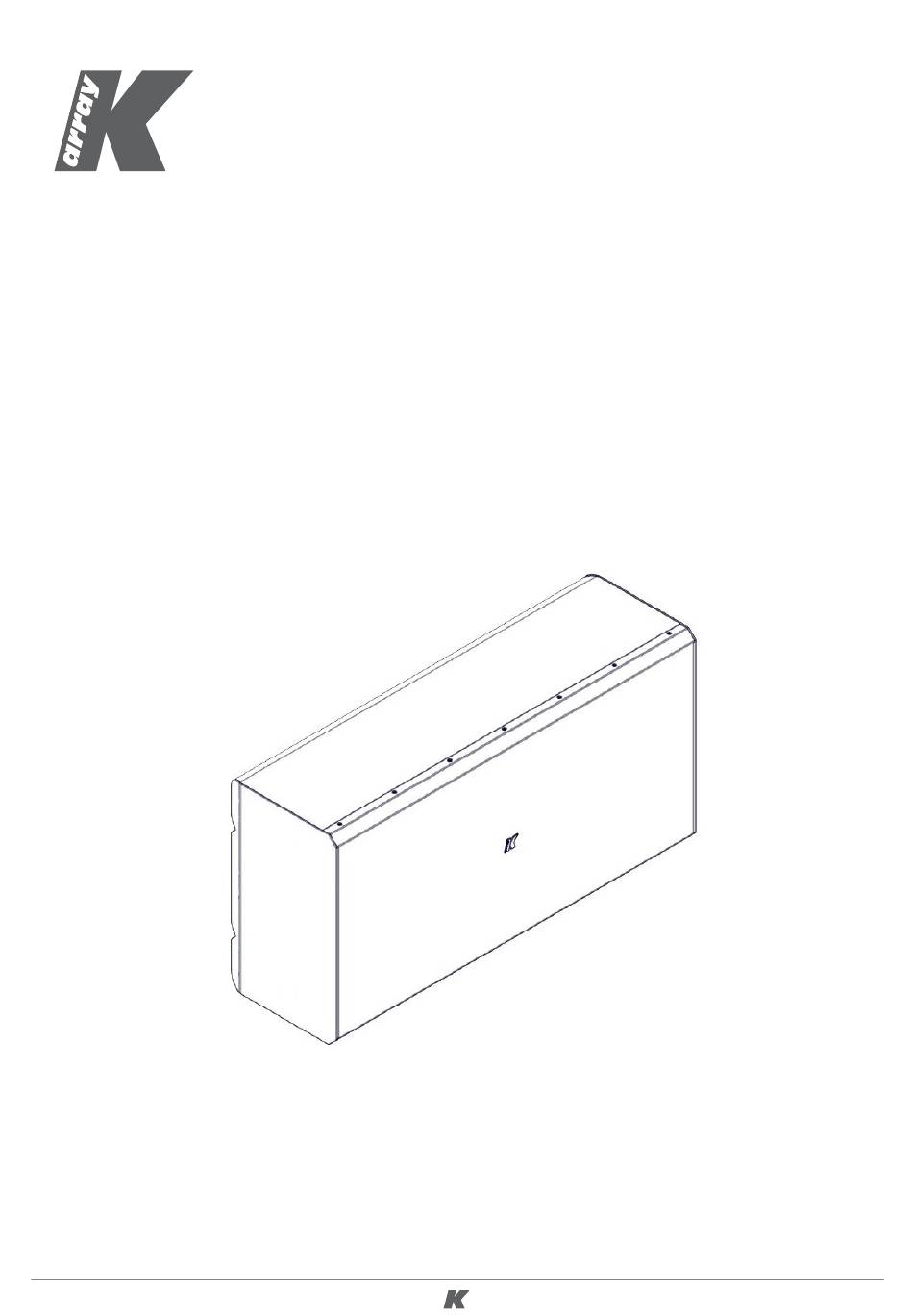

- Page 1 KU212 Ver. 1.0 KU212 USER GUIDE English...
-
Page 2: Table Of Contents
KU212 Ver. 1.0 TABLE OF CONTENTS SYMBOLS ................3 1. INTRODUCTION ..............4 2. KEY FEATURES ..............4 3. APPLICATIONS ............... 4 4. PACKAgE CONTENTS .............. 4 5. SAFETY INFORMATION ............5 6. UNPACKINg ................. 6 7. PhYSICAL ................6 8. -
Page 3: Symbols
KU212 Ver. 1.0 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction

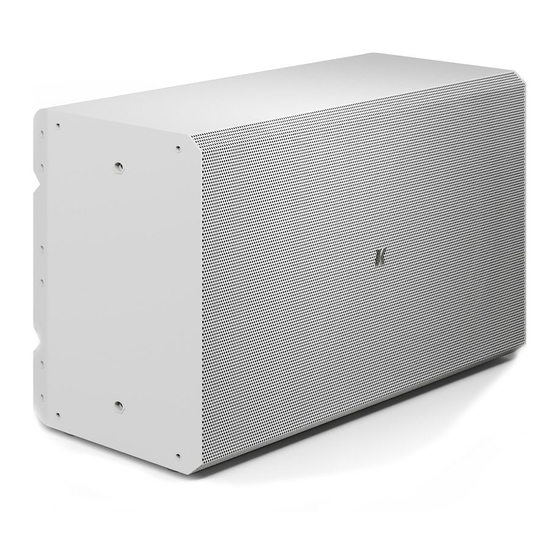

Ver. 1.0 1. INTRODUCTION The Rumble-KU212 is an ultra-thin, high power passive subwoofer designed as the perfect companion to the K-array’s Installed Sound speakers. A combination of extended frequency response with prodigious output and a discreet form factor make the KU212 an ideal solution for complex medium and large- format projects like clubs, lounges and live concerts. -
Page 5: Safety Information
KU212 Ver. 1.0 5. SAFETY INFORMATION Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep this instructions. -
Page 6: Unpacking
Ver. 1.0 6. UNPACKINg Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment. -
Page 7: Wiring
We provide also a “serial cable” that can be used to connect the two central pins of the phoenix connector in the 16Ω configuration. 4Ω 16Ω NOTE. The K-array KA84 amplifier can drive up to four KU212s@16Ω per channel. The K-array KA24 amplifier can drive one KU212@4Ω per channel. -
Page 8: K-2Spk Accessory
KU212 Ver. 1.0 8.1 K-2SPK ACCESSORY This accessory is used to connect a Speakon cable to a KU212. It features two Speakon connectors wired in parallel giving you the possibility to wire two or more KU212s in parallel using only Speakon cables. The two wires situated at the back of the K-2SPK carry the signal from the 1+ contact (red wire) and 1- contact (black wire) of the Speakon connector. -
Page 9: Set Up
KU212 Ver. 1.0 9. SET UP 9.1 RUBBER FEET MOUNTINg KU212 can be positioned on a flat surface both in horizontal and in vertical position thanks to the four rubber feet included. KU212 in horizontal position on a flat surface KU212 in vertical position on a flat surface... -
Page 10: Hanging Setup
KU212 Ver. 1.0 9.2 hANgINg SETUP The KU212 can be mounted on the wall using the four included wall brackets. 9.3 TILTINg ThE SYSTEM When a tilting angle is necessary, the KU212 can be mounted on the wall with the K-WALL2 accessory (not included). -
Page 11: Service
10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 12: Technical Specifications
Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. -
Page 13: Certification
KU212 Ver. 1.0 12. CERTIFICATION DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand K-ARRAY Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY Date of Issue: 14 / 03 / 2017 Model Code: KU210 – KU210W – KU212 – KU212W...
