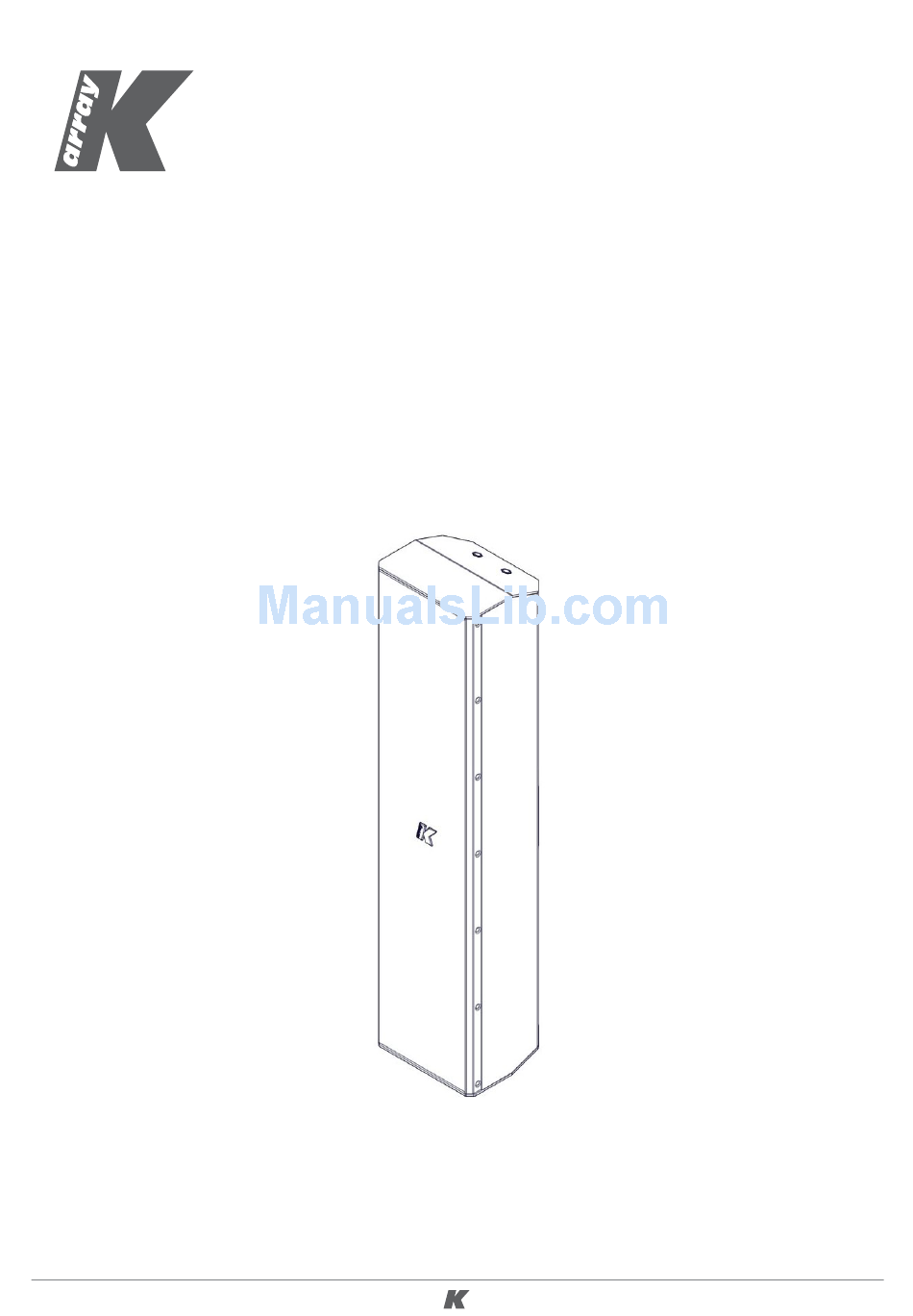

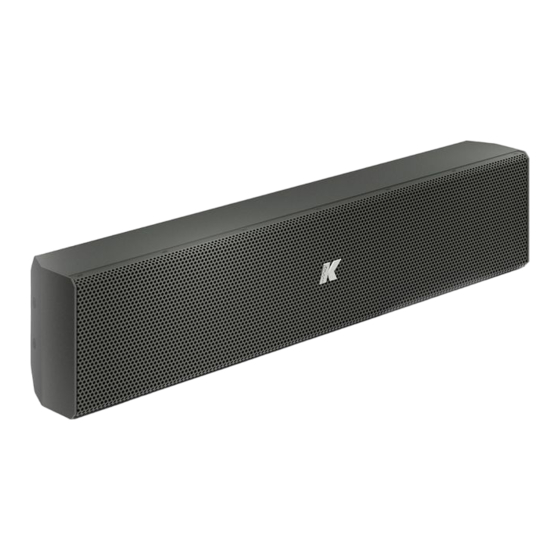

  • Page 1 KU44 Ver. 1.1 KU44 USER GUIDE English...

  • Page 2: Table Of Contents

    KU44 Ver. 1.1 TABLE OF CONTENTS SYMBOLS ................3 1. INTRODUCTION ..............4 2. KEY FEATURES ..............4 4. pACKAgE CONTENTS .............. 4 3. AppLICATIONS ............... 4 5. SAFETY INFORMATION ............5 6. UNpACKINg ................. 6 7. phYSICAL ................6 ..........

  • Page 3: Symbols

    KU44 Ver. 1.1 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.

  • Page 4: Introduction

    Installing a line array of KU44 subwoofers at the side or behind a line array of Kobras allows to create a full range sound source with true line-array characteristics down to 50 Hz.

  • Page 5: Safety Information

    KU44 Ver. 1.1 5. SAFETY INFORMATION Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions.

  • Page 6: Unpacking

    Ver. 1.1 6. UNpACKINg Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment.

  • Page 7: Mounting Screw Holes For Accessories

    KU44 Ver. 1.1 7.1 MOUNTINg SCREw hOLES FOR ACCESSORIES Mounting screw holes for wall brackets Mounting screw holes for K-JOINT2...

  • Page 8: Wiring

    Ver. 1.1 8. wIRINg The KU44 is comprised of two 4” neodymium transducers, combined with two 4” passive transducers. The two transducers can be wired in parallel (resulting in a 8Ω total impedance) or in serial (resulting in a 32Ω total impedance). To do this, we provide a 4-pin female Phoenix connector where users can make the wiring;...

  • Page 9: K-2Spk Accessory

    Ver. 1.1 8.1 K-2SpK ACCESSORY This accessory is used to connect a Speakon cable to a KU44. It features two Speakon connectors wired in parallel giving you the possibility to wire two or more KU44s in parallel using only Speakon cables.

  • Page 10: Set-Up And Configurations

    9.1 SUSpENDINg FROM ThE FLY-BAR up to 12 KU44 units can be suspended using the K-FLY2 accessory (fly-bar) and the K-JOINT2 accessory (hardware used to connect together two units or to connect a unit to the fly-bar).

  • Page 11: Hanging On The Wall

    The KU44 can be mounted on the wall with the K-WALL2L or K-WALL2 accessories (not included). K-WALL2L and K-WALL2 accessories 9.3 RUBBER FEET KU44 can be positioned on a flat surface in horizontal position thanks to the four rubber feet included. If necessary, the rubber feet can be easily removed.

  • Page 12: Service

    10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference.

  • Page 13: Technical Specifications

    Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice.

  • Page 14: Certification

    KU44 Ver. 1.1 12. CERTIFICATION DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand K-ARRAY Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY Date of Issue: 01 / 10 / 2015 Model Code: KU44, KU44W Declaration: Complies with safety essential requirements of Council Directive 2004/108/EC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.
