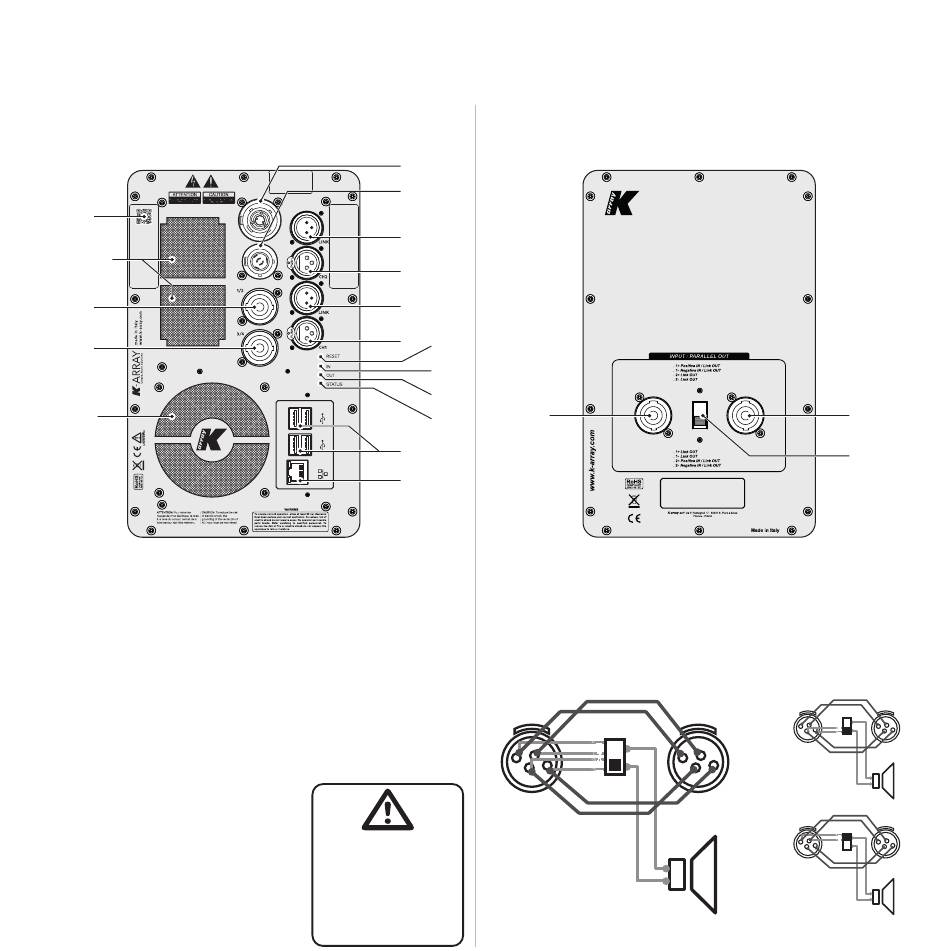

Active Subwoofer Rear Panel
1
Air vents
2
3
Fan
1. QR Code for the K-array Connect app remote connection
2. SpeakON NL4 speaker output channels 1 & 2*
3. SpeakON NL4 speaker output channels 3 & 4
4. PowerCon TRUE link (AC mains out)
5. PowerCon TRUE inlet (AC mains in)
6. XLR-M channel 2 balanced line output or channels 3 & 4
AES3 output (user selectable via software)
7. XLR-F channel 2 balanced line input or channels 3 & 4 AES3
input (user selectable via software)
8. XLR-M channel 1 balanced line output
9. XLR-F channel 1 balanced line input
10. Reset button
11. Input signal LED monitor
12. Output signal LED monitor
13. System status LED
14. USB ports
15. RJ45 Ethernet port
4
5
AES3
OUT
6
AES3
IN
7
8
9 10
11
12
13
14
15
WARNING
The internal woofer is
connected parallel to
Channel 2 SpeakON
+2 –2 terminals
Thunder-KS I
Passive Subwoofer Rear Panel
A
A. SpeakON NL4
B. SpeakON NL4
C. Terminals switch: swap the internal loudspeaker terminals
assignment (not present on the Thunder-KS3PM I marine
version rear panel).
1–
1+
2+
2–
A
SpeakOn to transducer
internal wiring
USER GUIDE
B
C
2+
2–
Sub on +2-2
[DEFAULT]
B
1–
1+
Sub on +1-1
9
