Summary of Contents for K-array KMT12P

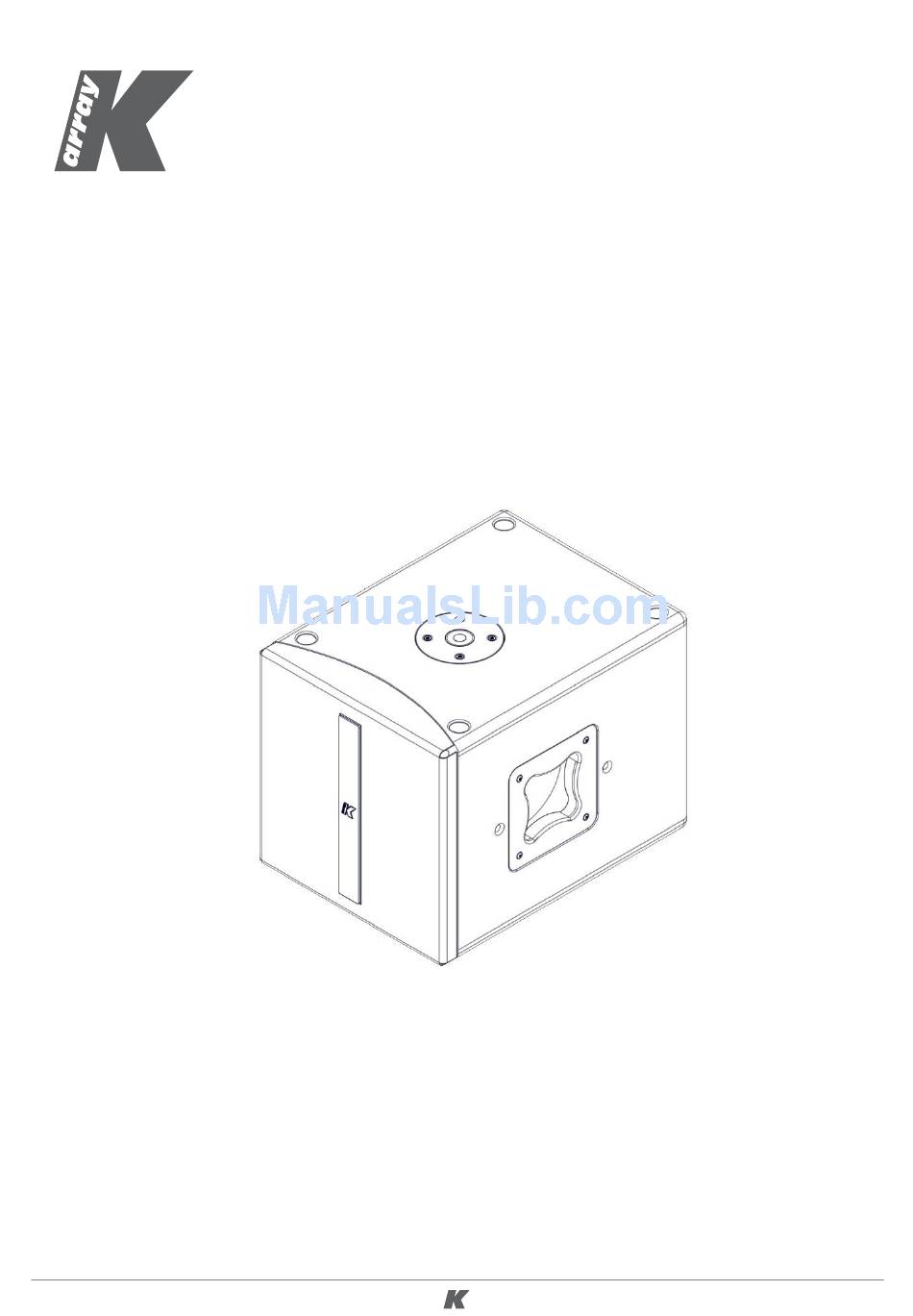

- Page 1 KMT12P Ver. 1.2 KMT12P USER GUIDE English...
-
Page 2: Table Of Contents
KMT12P Ver. 1.2 TABLE of CoNTENTS SYMBoLS ......................1. INTRoDUCTIoN ....................2. KEY fEATURES ....................3. APPLICATIoNS ....................4. SAfETY INfoRMATIoN ................. 5. UNPACKING ....................6. PhYSICAL ......................7. wIRING ......................8. hANGING PoINTS ..................9. SERVICE ......................10. TEChNICAL SPECIfICATIoNS .............. -
Page 3: Symbols
KMT12P Ver. 1.2 SYMBoLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction

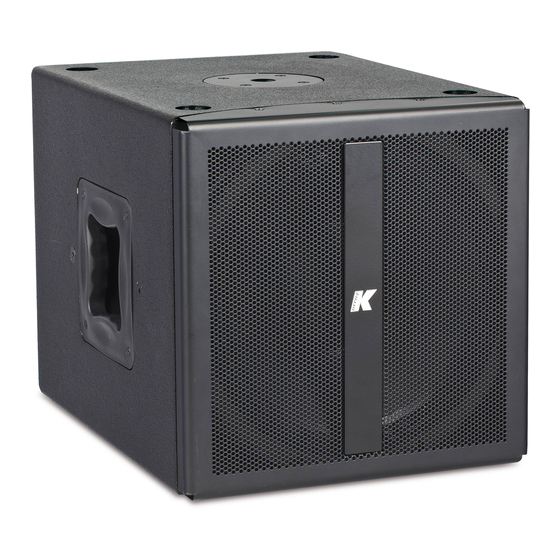

KMT12P Ver. 1.2 1. INTRoDUCTIoN The K-array KMT12P is a high performance passive subwoofer featuring a 12” neodymium magnet woofer with suspension engineered for maximum linear excursion. The KMT series’ unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion. -
Page 5: Safety Information
KMT12P Ver. 1.2 4. SAfETY INfoRMATIoN Read these instructions - Keep these instructions - Heed all warnings Warning. Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. -
Page 6: Unpacking
Ver. 1.2 5. UNPACKING Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment. -
Page 7: Wiring
7. wIRING KMT12P internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4 connector. 2+ and 2- pins, just like 1+ and 1-, are directly wired from one socket to the other, so the signal can pass through multiple speaker modules without additional external cabling. -
Page 8: Hanging Points
• K-array is not responsible for any rigging equipment and accessories that are not manufactured by K-array. It is the user’s responsibility to ensure that the Working Load Limit (WLL) of all the additional rigging hardware accessories is greater than the total weight of the system in use. -
Page 9: Service
9. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 10: Technical Specifications
New materials and design are introduced into existing products without previous notice. Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may... -
Page 11: Certification
KMT12P Ver. 1.2 11. CERTIfICATIoN DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand K-ARRAY Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY Date of Issue: 05 / 05 / 2015 Model Code: KMT12P, KMT12PX Declaration: Complies with safety essential requirements of Council Directive 2004/108/EC on the approximation of the Laws of the Member States relating to electromagnetic compatibility.
