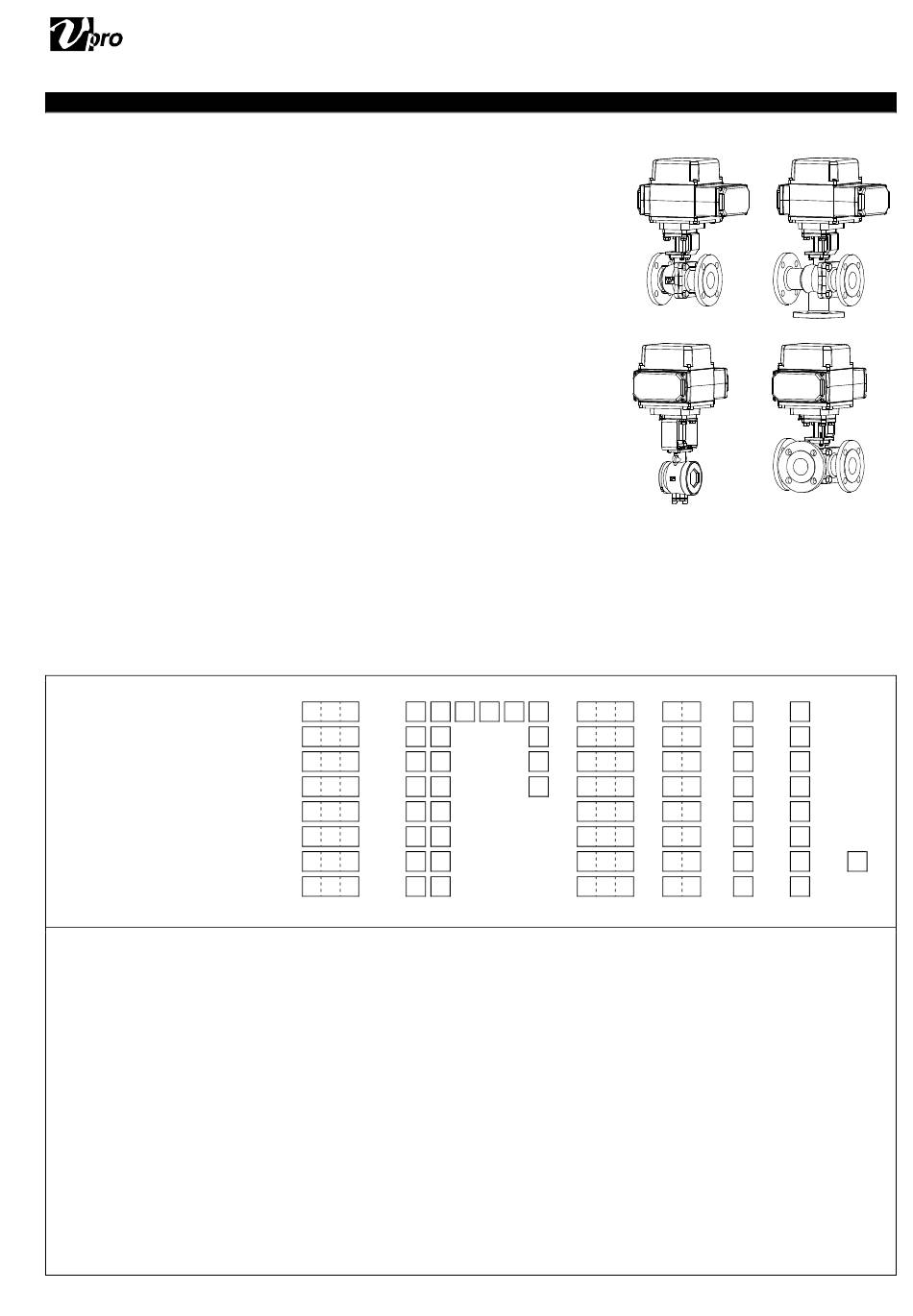

VPro BR Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this manual before installation and use.
GENERAL
The actuator operates at the time of power loss by the built-in
high-performance shielded battery.
Built-in battery life is 8 to 9 years at 25 °C.
It's possible to use for a wide range of temperature
(ambient temperature: -20 to +50 °C).
The battery composed by dry type structure the maintenance of
saving water is not necessary.
ACTUATOR
ABR : For AC / DC power
HBR : For AC / DC power (High speed)
Valve
BR type For various fluids and general use.
GS type For Wafer. (JIS 10K / 20K)
TR type For mixing / dividing.
LR type For mixing / dividing.
T3 type Trunnion structure. (with flow paths)
L3 type Trunnion structure.
PRODUCT CODE
BR type
GS type (V-port)
(Full port)
(Standard port)
TR type
LR type
T3 type
L3 type
(1) Actuator
ABR
HBR
(2) Valve
BR
GS
TR
LR
T3
L3
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
0 : 24 V DC
Instruction manual
Electric Actuated Ball Valve
B R
G S
G S
G S
T R
L R
T 3
L 3
(1) (2) (3) (4) (5) (6) (7) (8)
(4) Sizing code (7) Ball material
0 : Standard
1 : Light
2 : Heavy
(8) Seat material
(5) Connection
1 : JIS 10K
3 : JIS 20K
(6) Body material
T : SCS13A
U : SCS14A
(9) Size [mm]
BR GS TR LR T3 L3
-
3 U U V
3 U U -
3 U U R
1 T T P -
1 T T P -
1 T T G -
1 T T G -
(9)
T : SCS13A / SUS304
U : SCS14A / SUS316
F : F-PTFE
G : R-PTFE
R : R-F-PTFE
K : PEEK
I : API
C : R-PEEK
M : SUS316 + Stellite
P : R-PTFE
ex. 25 A ® 025
1/13
OSABR245-EN
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
(10) (11) (12)
(10) Option
M0 : Manual lever handle
(11) Operation mode
Nil : Mode A
Q : Mode B
(12) Power failure
Nil : Response mode
Z : Standby mode
S : Hold the valve position
(13) Flow paths (T3)
a to d : 3 way valve flow
SP-1555
-
(13)
