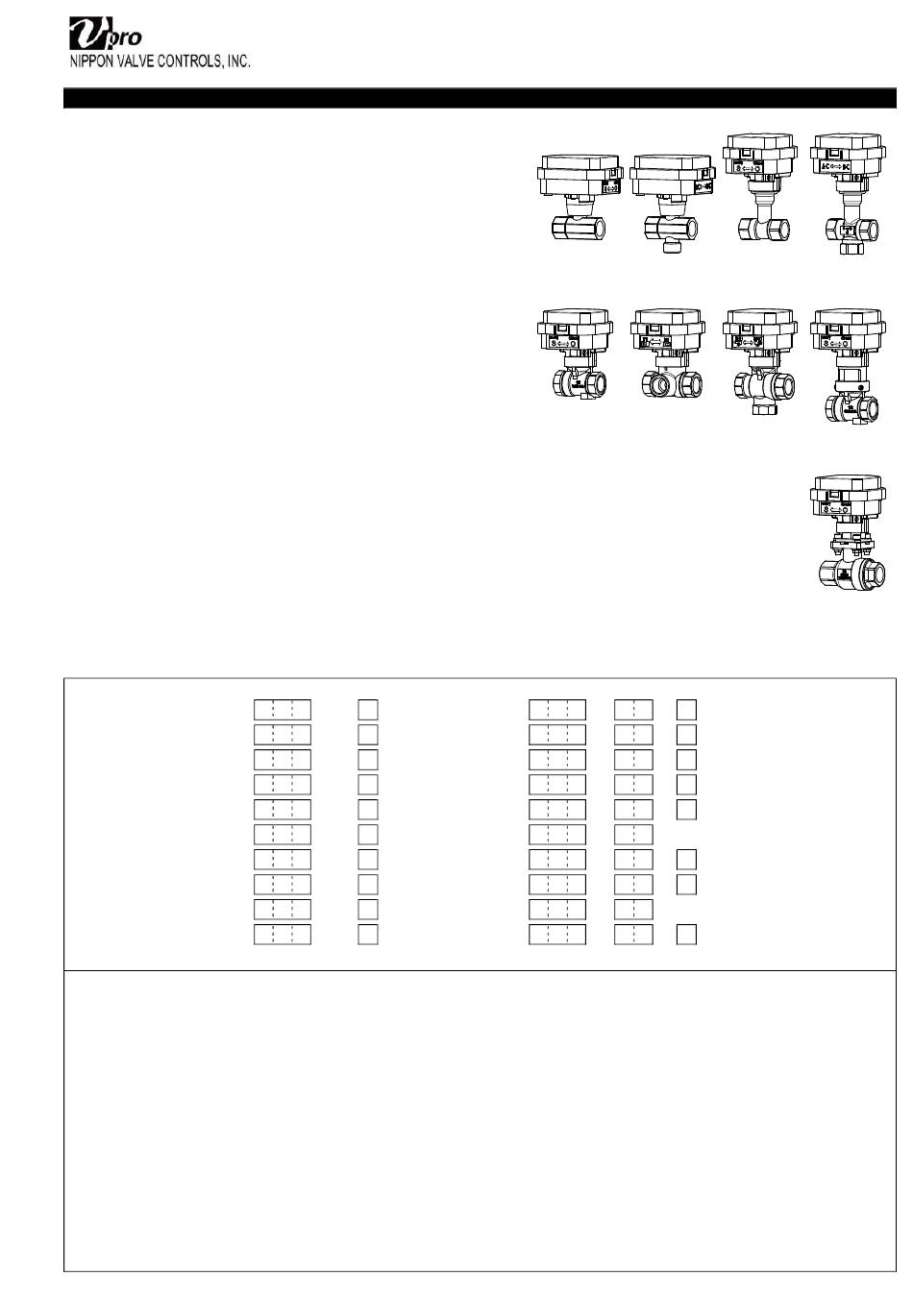

VPro A Instruction Manual

Please read this manual before installation and use.
GENERAL
Threaded-end ball valve with mini actuator.
It can respond to various needs.
Actuator
CM : For AC power
CD2 : For DC power
CMX : For AC / DC power (Proportional control)
CA1 : For AC power
PM1 : For AC power (Contactless)
Valve
A type Brass mini ball valve.
AE type Long neck.
E type For general use.
EG type For high temp. (up to 1 MPa)
SR type For food / Corrosive fluid.
T type Brass mini ball valve.
TE type Long neck.
EL type For general use.
TV type For diversion flow and mixing.
PRODUCT CODE
A type
AE type
E type (Brass)
(Stainless)
EG type
SR type
T type
TE type
EL type
TV type
(1) Actuator
CM1 CM2 CD2
CA1 PM1 CMX
(2) Valve
A- AE
E- EG SR
T- TE EL TV
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
0 : 24 V DC
4 : 12 V DC
Instruction manual
Electric Actuated Ball Valve
A - 0 5 Y Y F -
A E 0 5 T T P -
E - 0 5 Y Y F -
E - 0 5 U U T -
E G 0 5 U U P -
S R 0 5 U U T -
T - 0 5 Y Y F -
T E 0 5 T T P -
E L 0 5 U U T -
T V 0 5 T T P -
(1) (2) (3) (4) (5) (6) (7) (8)
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
(5) Connection
5 : Threaded End Rc
(6) Body material
Y : C3771BE
T : SCS13A
U : SCS14A
A AE E EG SR T TE EL TV
A
E
-
-
-
-
-
-
-
-
-
-
(9) (10)
(7) Ball material
Y : C3771BE / C3604BD
T : SCS13A / SUS304
U : SCS14A / SUS316
(8) Seat material
F : F-PTFE
P : R-PTFE
T : PTFE
(9) Size [mm]
ex. 25 A ® 025
1/12
OSMEX225-EN
SP-1474
T AE
EL TV
-
-
-
-
-
-
-
-
(11)
(10) Option
ST : For steam
(11) Operation mode (CMX)
Nil : Mode A
J : Mode B
TE
EG
SR
