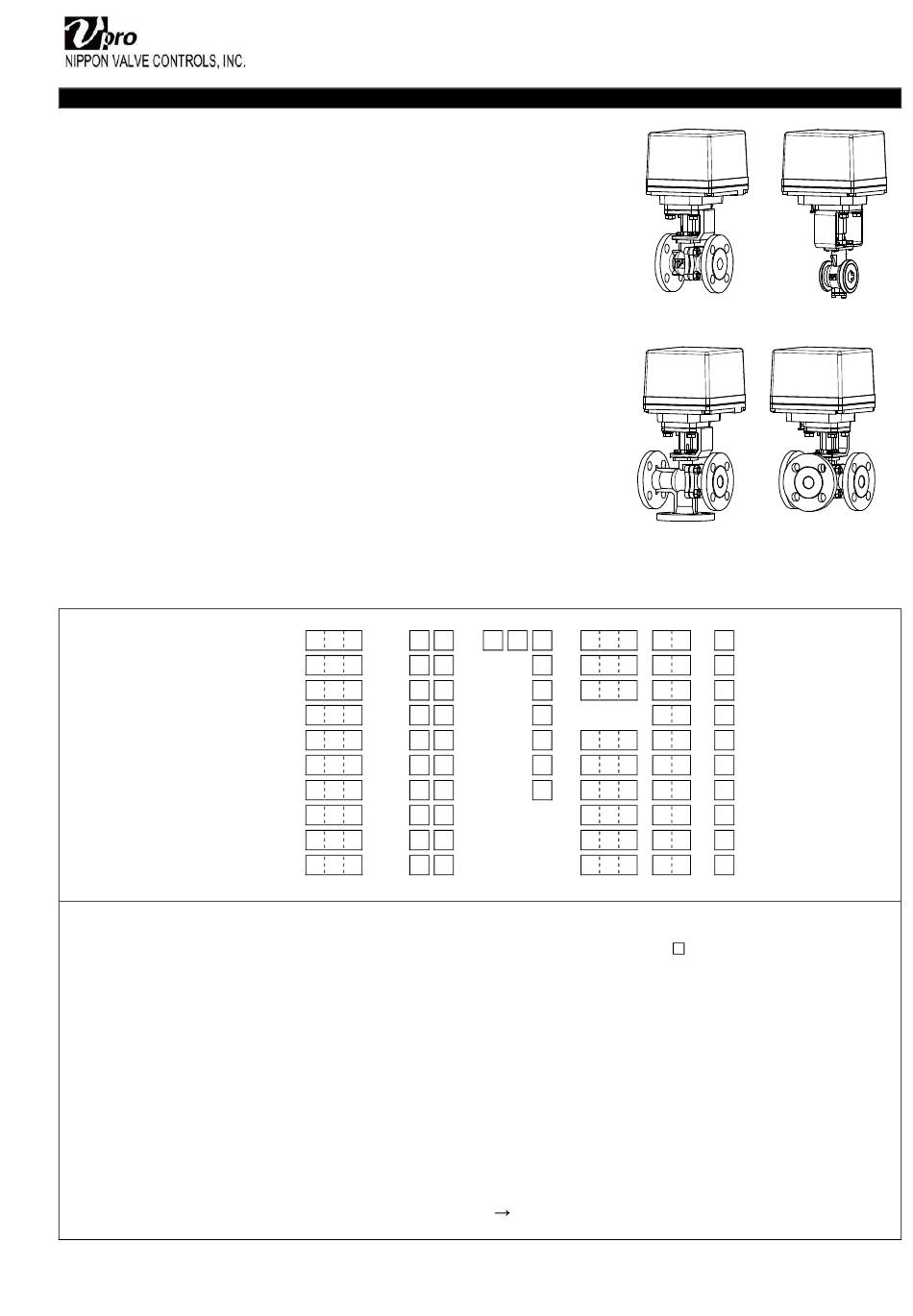

OSRBR208-EN Instruction manual Electric Actuated Ball Valve BR VR GS TR LR L3 SP-1384 Please read this manual before installation and use. GENERAL It composed of flange-end ball valve and high-power electric actuator. (proportional control) Actuator PDX : For AC / DC power. It corresponds to various control input signals.
Page 2
OSRBR208-EN VALVES SPECIFICATIONS Water Air, Gas Steam Chemicals Sea water Slurry Negative pressure type Valve type Design 2-way, Full port 2-way, V-port Connection JIS10K Flanged-end JIS20K Flanged-end JIS10K Flanged-end Fluid Max pressure 1 MPa 2 MPa 1 MPa Size [mm] 015 to 100 015 to 150 015 to 080...
OSRBR208-EN VALVES SPECIFICATIONS Water Air, Gas Steam Chemicals Sea water Slurry Negative pressure type Valve type Design 2-way, Wafer Connection JIS Flanges 10K / 20K Fluid Max pressure 2 MPa Size [mm] 015 to 150 Material Body SCS14A Ball SCS14A (HCr PLTD) Seat R-PTFE PEEK...
Page 4
OSRBR208-EN VALVES SPECIFICATIONS Water Air, Gas Steam Chemicals Sea water Slurry Negative pressure type Valve type TR / LR Design 3-way, Full port 3-way, Full port Connection JIS10K Flanged-end JIS10K Flanged-end Fluid The optional for steam fluids. Valve type Option code O-ring Max pressure 1 MPa 1 MPa...
Page 5
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position type Actuator type PDX-300- PDX-700- PDX-02K- PDX-06K- ( :Voltage code) Voltage 100 / 110 V AC ±10 % 50/60 Hz (Code: 1) 200 / 220 V AC ±10 % 50/60 Hz (Code: 2) 24 V AC ±10 %...
Page 6
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position WIRING Setting with DIP SW • Operation Positioner board Voltage Mode A Mode B (R core 100/110VAC transformer) 200/220VAC DIP SW 24VAC (100/110VAC) (200/220VAC) 24VDC Input signal (Operation range) 4 to 20mA • Input signal Motor 1 to 5V 4 to 20 mA / 1 to 5 V...
Page 7
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position type Actuator type PHX-300- PHX-700- PHX-02K- PHX-06K- ( :Voltage code) Voltage 100 / 110 V AC ±10 % 50/60 Hz (Code: 1) 200 / 220 V AC ±10 % 50/60 Hz (Code: 2) 24 V AC ±10 %...
Page 8
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position WIRING Setting with DIP SW • Mode setup Positioner board Voltage Mode A Mode B (R core 100/110VAC transformer) DIP SW 200/220VAC 24VAC (100/110VAC) (200/220VAC) 24VDC Input signal (Operation range) 4 to 20mA Brushless •...
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position OPTIONAL PARTS Specifications Code No. PDX PHX Remarks Input signal 4 to 20 mA or 1 to 5 V Mode A (Standard) Mode B operation 0-135 to 0-1 k Potentiometer input or 0 to 5 V Mode A Mode B...
Page 10
OSRBR208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position DIMENSIONS PDX-300, 700 PDX-02K PDX-06K PHX-300, 700 PHX-02K PHX-06K 2-G1/2 2-G1/2 2-G1/2 Parts name Body Terminal block Transformer 13 Rubber packing Motor cover Limit switch 10 Drive shaft Motor SW setting cam 11 Manual clutch Control board...
OSRBR208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS HANDLING & STORAGE CAUTIONS FOR MAINTENANCE (GS / L3) HANDLING Do not keep warm for maintenance of the valve gland. Proper care in handling the valve should be taken to prevent damage. Do not drop or throw it. STORAGE Store the valve in the protected area from dust, moisture, and direct sunlight.
OSRBR208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS WIRING CONTROL PRECAUTIONS INPUT SIGNAL • Remove the actuator cover before wiring. • Use shielded wire for signal wiring where high level • Two G1/2 electrical connections are provided with a noise is generated or when the wiring distance is long. cable gland and plug.
OSRBR208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS OPERATION MANUAL OPERATION TESTING PRECAUTIONS • Make sure that power supply voltage is correct. Also • Be sure to turn off the power before manual operation. check operating position, wiring, speed and signals. • Operate manually with reference to the opening •...
OSRBR208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS TROUBLE SHOOTING Problem Cause Solution Problem Cause Solution Actuator Faulty wiring. Correct the wiring. Stop in the Signal voltage Use a voltage source does not mid position. source that can be made to move. (Input signal capacity flow more than 20 mA.
