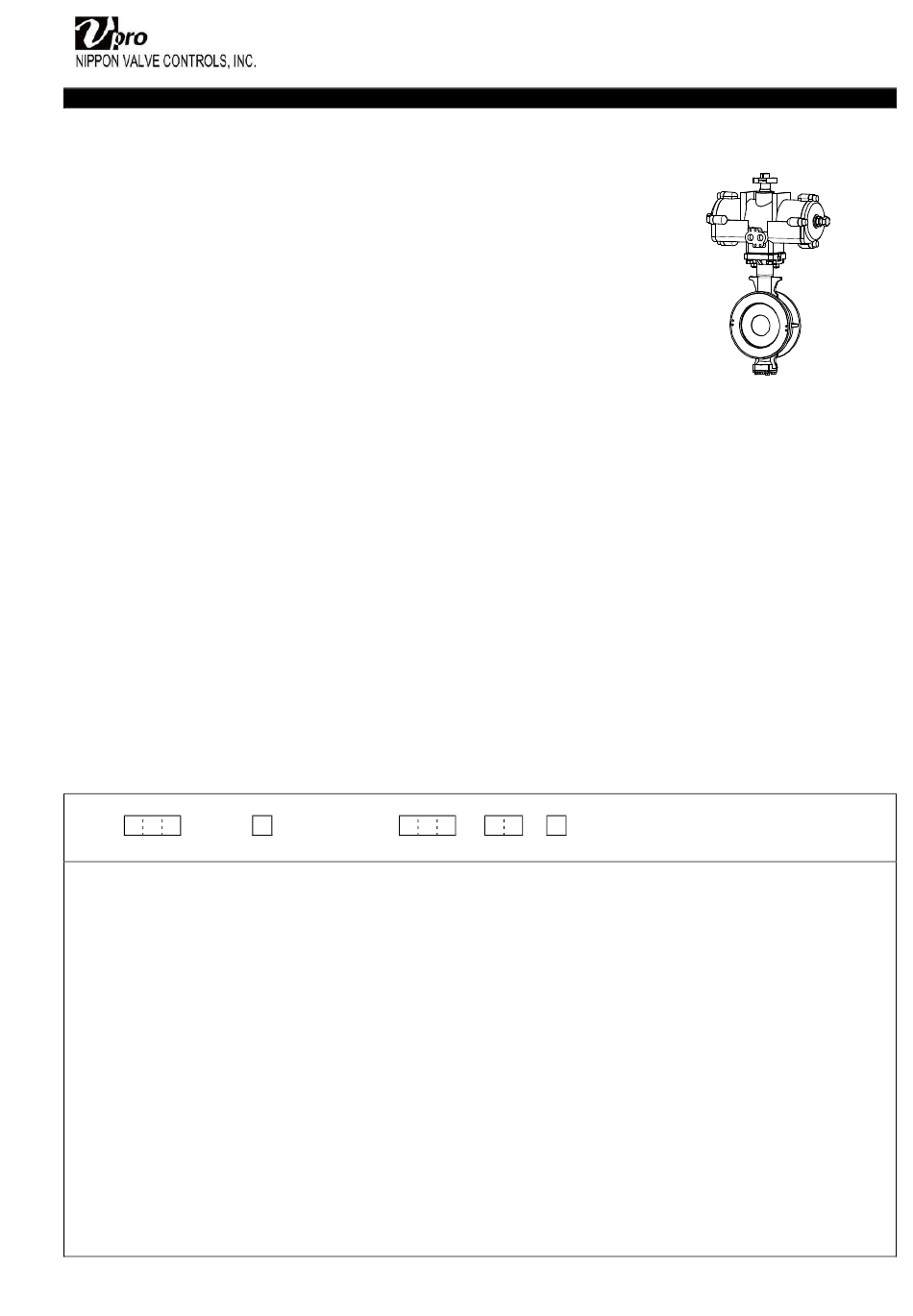

VPro DN Series Instruction Manual

Please read this manual before installation and use.
GENERAL
It composed of wafer type butterfly valve and pneumatic actuator.
Actuator
Double-acting type
TAD
Single-acting type
TAO (Airless SHUT)
TAC (Airless OPEN)
Valve
DN type Double centering structure.
PRODUCT CODE
D N 9
(1) (2) (3) (4) (5) (6) (7) (8)
(1) Actuator
TAD
TAO
TAC
(2) Valve
DN
(3) Voltage
9 : Air
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
(5) Connection
1 : JIS 5K / 10K
Instruction manual
Pneumatic Actuated Butterfly Valve DN
1 T T F -
(6) Body material (10) Option
T : SCS13A
(7) Disc material
T : SCS13A
(8) Seat material
F : F-PTFE (11) Positioner control pattern (TAD)
(9) Size [mm]
ex. 80 A ® 080
(11) Positioner control pattern (TAO)
(11) Positioner control pattern (TAC)
- -
(9) (10) (11)
FR : Filter Regulator Unit
LB : Limit Switch Box
EP : Positioner
ES : Smart Positioner
ER : Smart Positioner
A : SHUT by 4 mA « OPEN by 20 mA
B : SHUT by 20 mA « OPEN by 4 mA
C : OPEN by 20 mA « SHUT by 4 mA (Airless SHUT)
D : OPEN by 4 mA « SHUT by 20 mA (Airless SHUT)
E : SHUT by 4 mA « OPEN by 20 mA (Airless OPEN)
T : SHUT by 20 mA « OPEN by 4 mA (Airless OPEN)
1/8
OSPDN225-EN
SP-1474
DN
