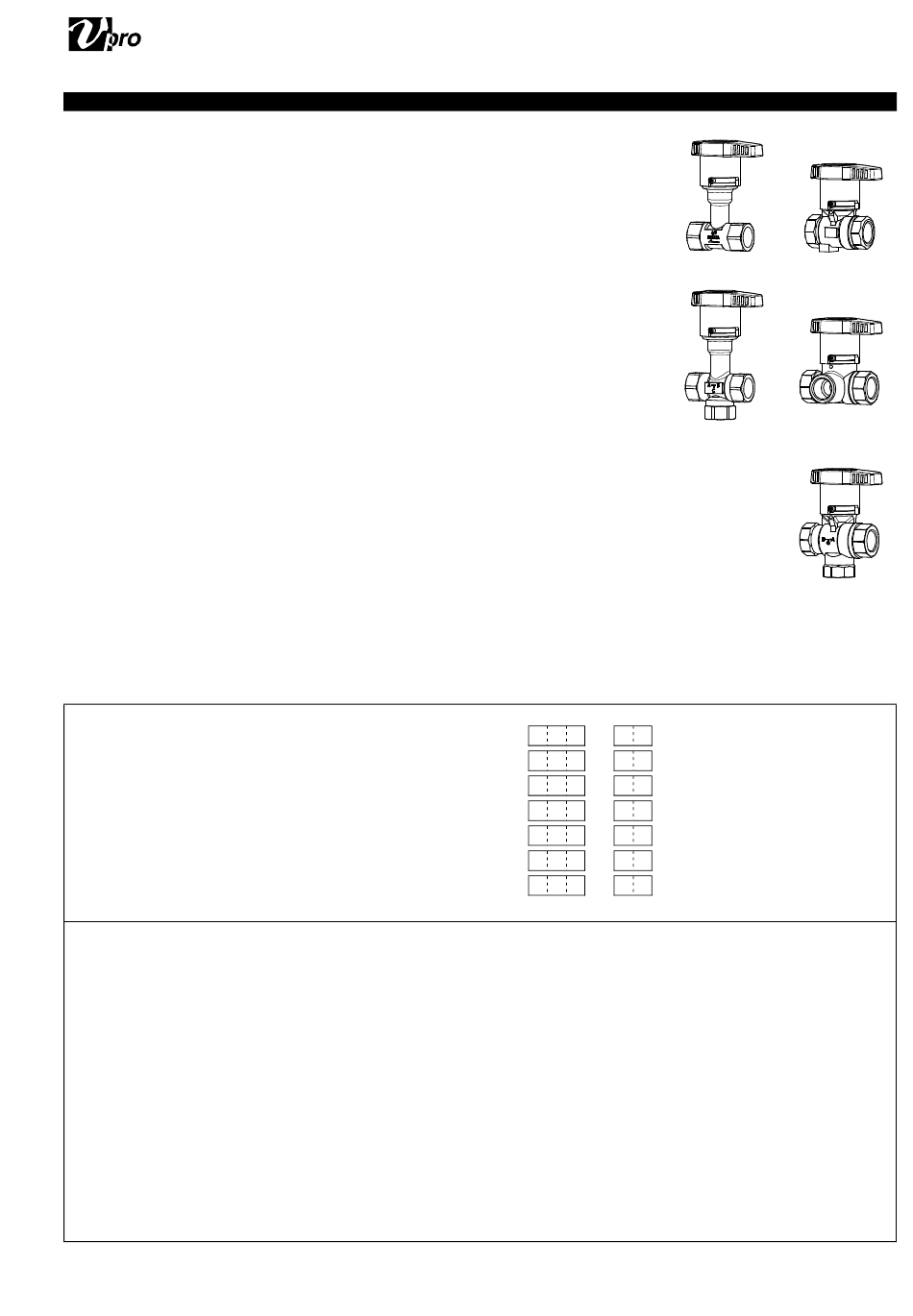

VPro MAC Series Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this document before using these valves.

GENERAL

This series is suitable for main or bypass valve in piping system.
Valve
AE type A dew condensation prevention valve. (Long neck)
E type For general use.
EG type For high temp. (up to 1 MPa)
TE type A dew condensation prevention valve. (Long neck)
EL type For general use.
TV type For diversion flow and mixing.

PRODUCT CODE

AE type
E type (Brass)
(Stainless)
EG type
TE type
EL type
TV type
(1) Actuator
MAC
(2) Valve
AE
E-
EG
TE
EL
TV
(3) Operation
T : Manual handle
Instruction manual
MAC SERIES Ball Valve
M A C A E T - 5 T T P -
M A C E - T - 5 Y Y F -
M A C E - T - 5 U U T -
M A C E G T - 5 U U P -
M A C T E T - 5 T T P -
M A C E L T - 5 U U T -
M A C T V T - 5 T T P -
(1) (2) (3) (4) (5) (6) (7) (8)
(4) Sizing code
- : Hyphen
(5) Connection
5 : Threaded End Rc
(6) Body material
T : SCS13A
Y : C3771BE
U : SCS14A
(7) Ball material
T : SCS13A / SUS304
Y : C3771BE / C3604BD
U : SCS14A / SUS316
AE E EG TE EL TV
-
-
-
-
-
-
-
(9) (10)
(8) Seat material
P : R-PTFE
F : F-PTFE
T : PTFE
(9) Size [mm]
ex. 25 A ® 025
1/4
OSYEX225-EN
SP-1474
AE E / EG
TE EL
TV
(10) Option
ST : Seat for abnormal
pressure rise
