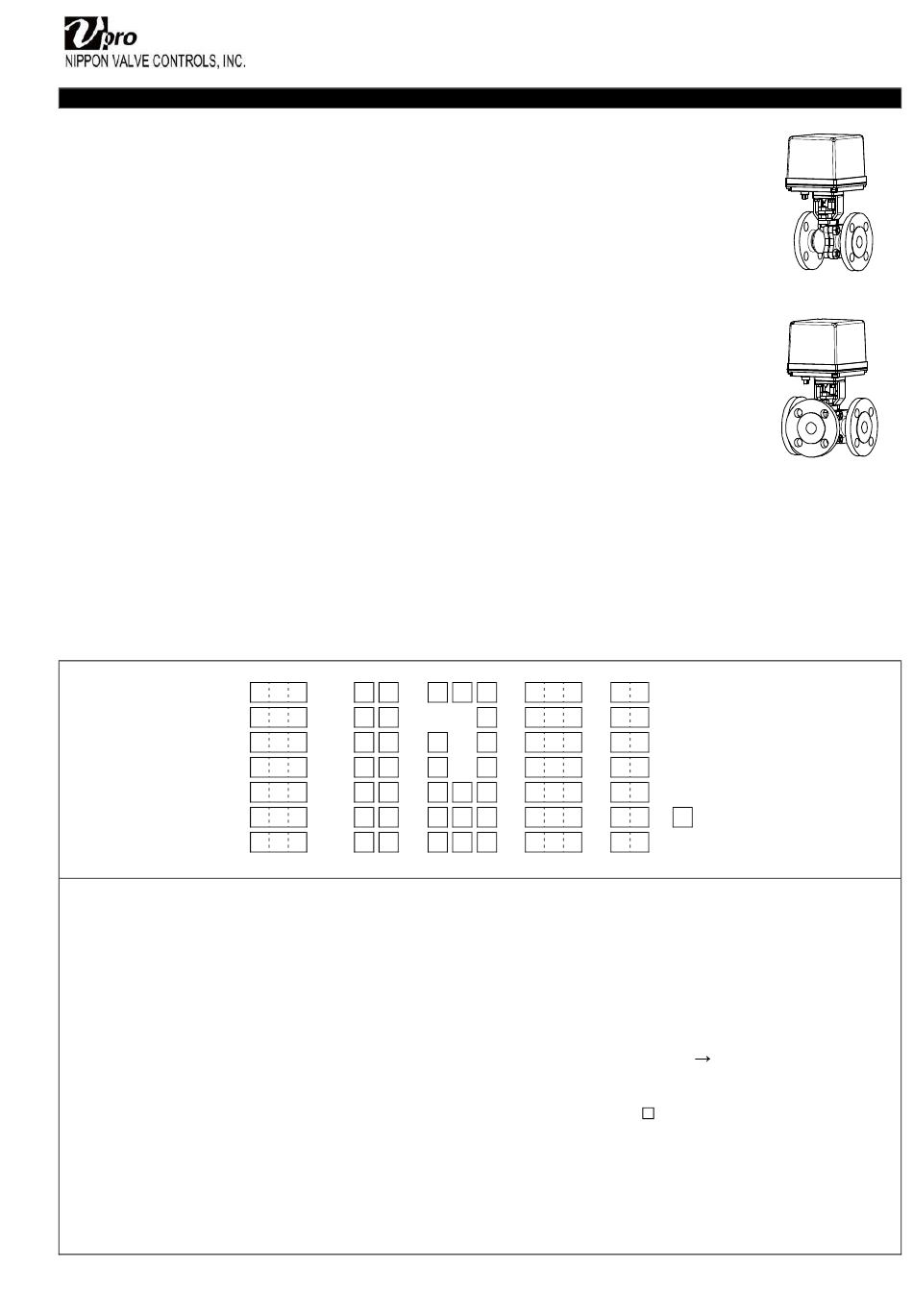

VPro BF Series Installation, Operation & Maintenance Instructions Manual

Please read this manual before installation and use.
GENERAL
It composed of flange-end ball valve and high-power electric actuator.
Actuator
AD1 : For AC power
AD2 : For AC / DC power
AD0 : For DC power
HD1 : For AC power
HD2 : For AC / DC power (High speed)
HD0 : For DC power
AE1 : For AC power
AE2 : For AC / DC power
Valve
BF type For various fluids and general use.
L2 type For mixing / dividing.
V type For control
T4 type 4 seats, 3 way. T port. (with flow paths)
L4 type 4 seats, 3 way. L port.
PRODUCT CODE
BF type JIS 10K
JIS 20K
V type
JIS 10K
JIS 20K
L2 type
T4 type
L4 type
(1) Actuator
AD1 HD1 AE1
AD2 HD2 AE2
AD0 HD0
(2) Valve
BF V-
L2 T4 L4
(3) Voltage
1 : 100 / 110V AC
2 : 200 / 220V AC
0 : 24V DC
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
Instruction manual
Electric Actuated Ball Valve
(High speed)
(High speed)
B F 1
B F 3 T T
V - 1
V - 3
L 2 1
T 4 1
L 4 1
(1) (2) (3) (4) (5) (6) (7) (8)
(5) Connection
1 : JIS 10K
3 : JIS 20K
(6) Body material
D : FCD400 / FCD-S
T : SCS13A / SCS13
U : SCS14A / SCS14
W : SCS16A
(7) Ball material
T : SCS13A / SUS304
U : SCS14A / SUS316 / SCS11
W : SCS16A / SUS316L
BF V L2 T4 L4
- -
- -
U - -
U - -
- -
- -
- -
(9) (10)
(8) Seat material
(9) Size [mm]
(10) Option
(11) Flow paths
1/14
OSBBF20A-EN
L2 T4 L4
-
(11)
T : N-PTFE
G : R-PTFE
R : R-PTFE (with metal-ring)
S : Thin seat
M : Solid seat
ex. 25 A 025
L : Auxiliary limit switch
M0 : Manual lever handle
a to d : T4 type
SP-1410
BF V
