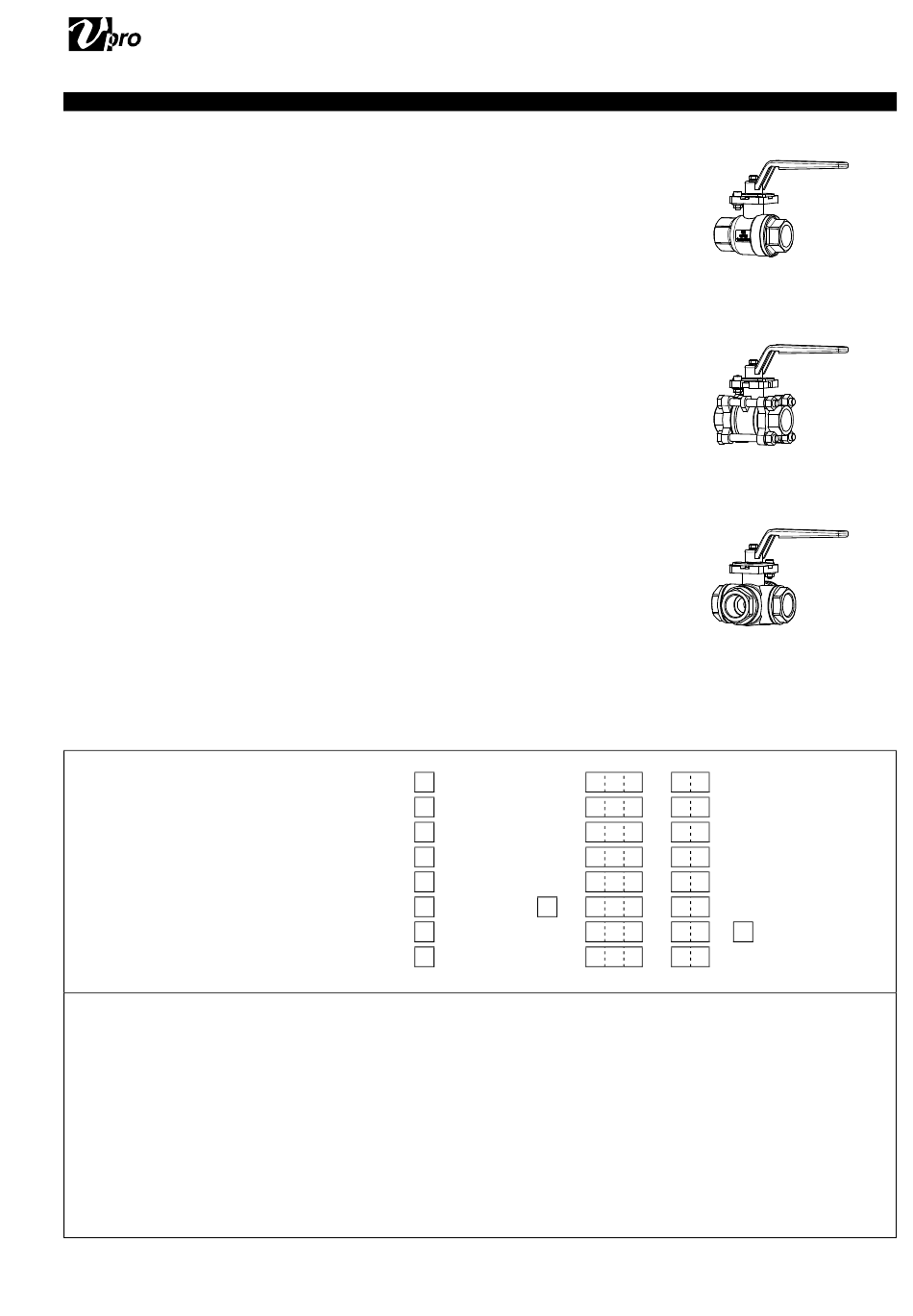

VPro MAX Series Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this document before using these valves.

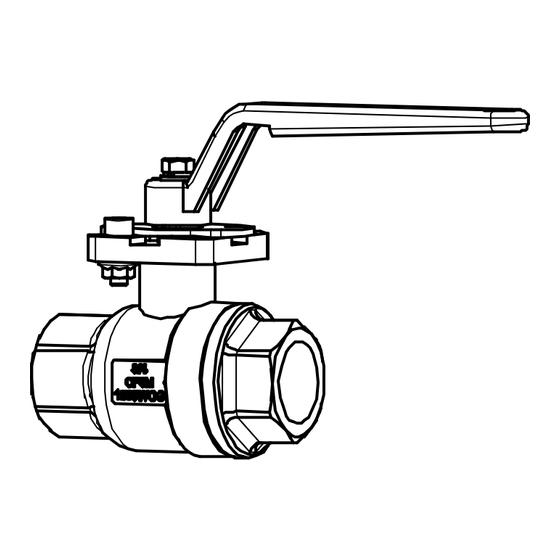

GENERAL
This series is suitable for main or bypass valve in piping system.
The position of manual handle can be changed.
Manual operation
Valve only
Lever
Valve
SR type For food / Corrosive fluid.
SH type For high temp.
MS type 3 piece / For heavy load.
MV type 3 piece / For minute flow and control.
MH type 3 piece / For high pressure.
ST type 4 seats, 3 way. (with flow paths)
SL type 4 seats, 3 way.
PRODUCT CODE
SR type
SH type
MS type
MV type (V-port)
(Reduced port)
MH type
ST type
SL type
(1) Actuator
MAX
(2) Valve
SR SH
MS MV MH
ST SL
(3) Operation
0 : (Zero) Valve only
L : With manual lever
Instruction manual
MAX SERIES Ball Valve
M A X S R -
M A X S H -
M A X M S -
M A X M V -
M A X M V -
M A X M H -
M A X S T -
M A X S L -
(1) (2) (3) (4) (5) (6) (7) (8)
(4) Sizing code
- : Hyphen
(5) Connection
5 : Threaded End Rc
(6) Body material
U : SCS14A
(7) Ball material
U : SCS14A / SUS316
SR SH MS MV MH ST SL
5 U U T -
5 U U F -
5 U U P -
5 U U P -
5 U U P R
5 U U -
5 U U F -
5 U U F -
(9)
(8) Seat material
T : PTFE
F : F-PTFE
P : R-PTFE
D : POM
R : R-F-PTFE
(9) Size [mm]
ex. 25A ® 025
1/7
OSYSR225-EN
SR / SH
MS / MV / MH
ST / SL
-
-
-
-
-
-
- -
-
(10) (11)
(10) Option
SC : Seat for abnormal
pressure rise
(11) Flow paths
a to d : ST type
SP-1474
