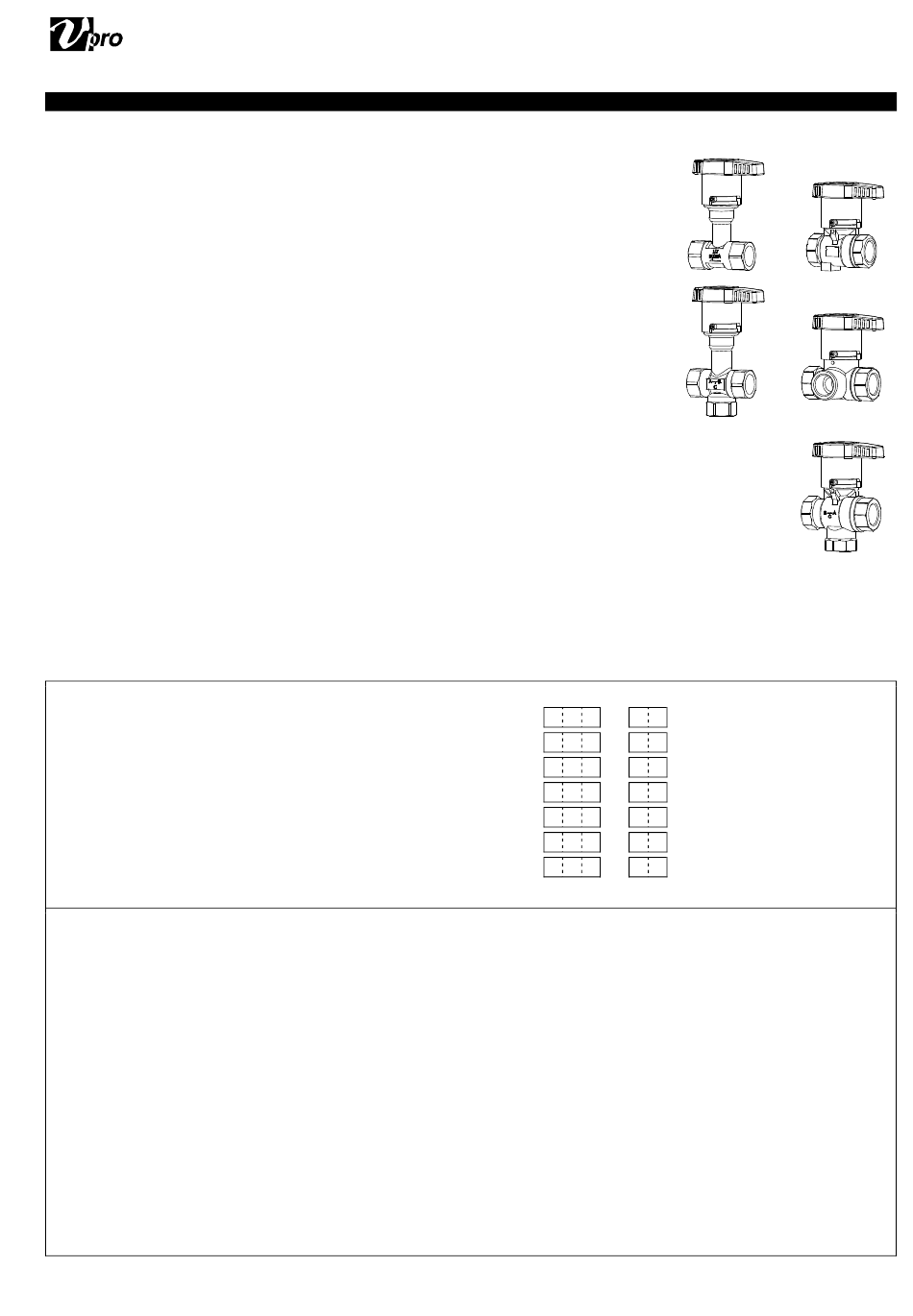

VPro MAC Series Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this document before using these valves.

GENERAL

This series is suitable for main or bypass valve in piping system.
Manual operation
Handle
Valve
AE type Long neck.
E type For general use.
EG type For high temp. (up to 1 MPa)
TE type Long neck.
EL type For general use.
TV type For diversion flow and mixing.

PRODUCT CODE

AE type
E type (Brass)
(Stainless)
EG type
TE type
EL type
TV type
(1) Actuator
MAC
(2) Valve
AE
E-
EG
TE
EL
TV
(3) Operation
T : Handle
(4) Hyphen
Instruction manual
MAC SERIES Ball Valve
M A C A E T -
M A C E - T -
M A C E - T -
M A C E G T -
M A C T E T -
M A C E L T -
M A C T V T -
(1) (2) (3) (4) (5) (6) (7) (8)
(5) Connection
5 : Threaded End Rc
(6) Body material
T : SCS13A
Y : C3771BE
U : SCS14A
(7) Ball material
T : SCS13A / SUS304
Y : C3771BE / C3604BD
U : SCS14A / SUS316
AE E EG TE EL TV
5 T T P -
5 Y Y F -
5 U U T -
5 U U P -
5 T T P -
5 U U T -
5 T T P -
(9)
(8) Seat material
P : R-PTFE
F : F-PTFE
T : PTFE
(9) Size [mm]
ex. 25 A ® 025
1/4
OSYEX23B-EN
-
-
-
-
-
-
-
(10)
(10) Option
SP-1519
