NSD ABSOCODER NPG-220HZCLC Specifications & Instruction Manual page 8

2. CONFIGURATION
Indicates the configuration of NPG-220HZCLC.
Contact your NSD representative for details of ABSOCODER sensor and the extension sensor cable.

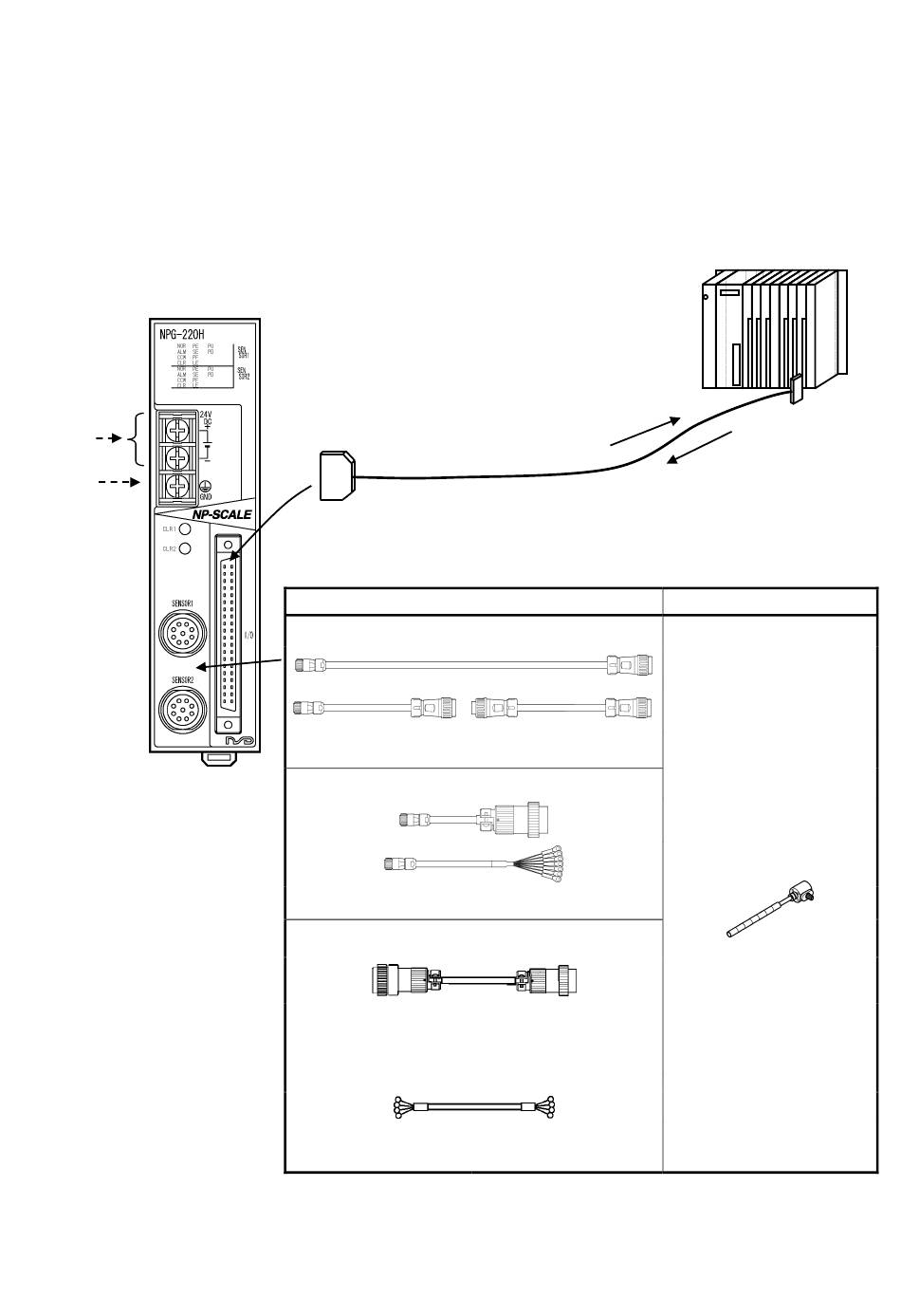

●Connection configuration
(1) Converter
Power
Supply
+24V
0V
Ground
Connector at cable side
(It is included in the converter.)
FCN-361J040-AU: Soldered socket
FCN-360C040-B: Cover
Connectors are manufactured
by FUJITSU COMPONENT LIMITED.
or
N361J040AU: Soldered socket
N360C040B: Cover
Connectors are manufactured
(3) Extension sensor cable
4P-S/RBT/URT-0144-[L]
4P-S/RBT/URT
-0144-[L]
4P-S/RBT/URT-0155-[L]
4P-S/RBT/URT-0190-[L]
Commercially available cable *1
JKPEV-S(1.25mm
NWPC-4012-Ad14
(Manufacturer:
Nanaboshi Electric
Mfg.Co,Ltd.)
Crimping terminals
(R1.25-4)
*1: The cable should be used in combination with a cable for JKPEV-S.
External output signal
-Pulse output
-Alarm output
4P-S/RBT/URT/HRT
-4344-[L]
2
×5P)
NWPC-4012-P14
(Manufacturer:
Nanaboshi Electric
Mfg.Co,Ltd.)
Crimping terminals
(R1.25-4)
2
PLC
External input signal
-Error clear
-Limit error
(2) ABSOCODER sensor
IRS-32.8P(A)18
