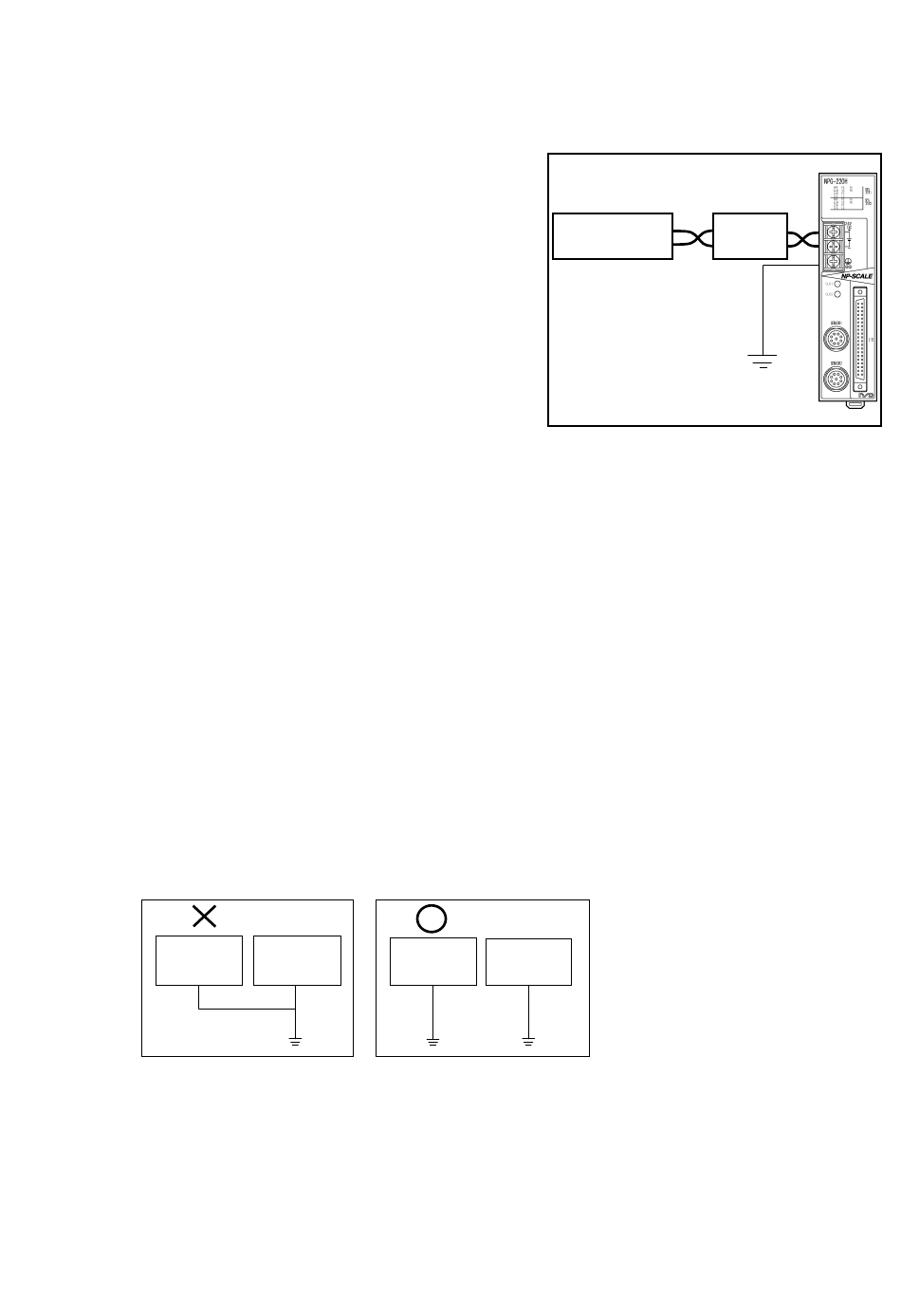

7-2. Power Supply Connection

The power supply should be connected as described below.
(1) Power Supply
-Choose the capacity of the power supply over
double of power consumption of converter.
The power consumption of the converter is 10W or less.
-The input power supply should be isolated from
the commercial power supply.
-Twist the power cable for preventing noises.
-Use the M4 size crimp lug terminals with
insulating sleeves in order to prevent short
circuit caused by loose screws.
-The power cable should be as thick as possible to minimize voltage drops.
-The terminal block tightening torque is 1.8 N･m (16 lb･in).
(2) Ground
-The unit should be securely grounded (ground resistance of 100ohm or less) to prevent electrical shocks.
-The ground wire should be connected to the ground terminal directly.
-The terminal block tightening torque is 1.8 N･m (16 lb･in).
Converter
Other
Converter
products
Power +24VDC
Supply
Other
products
19
Over current
0V protector
