9-4. Error Clear

In the case of clearing an error, remove the cause, and then press the error clear button on the converter
panel or input the error clear signal.
Each axis (Axis-1 and Axis-2) has the error clear button and error clear signal.

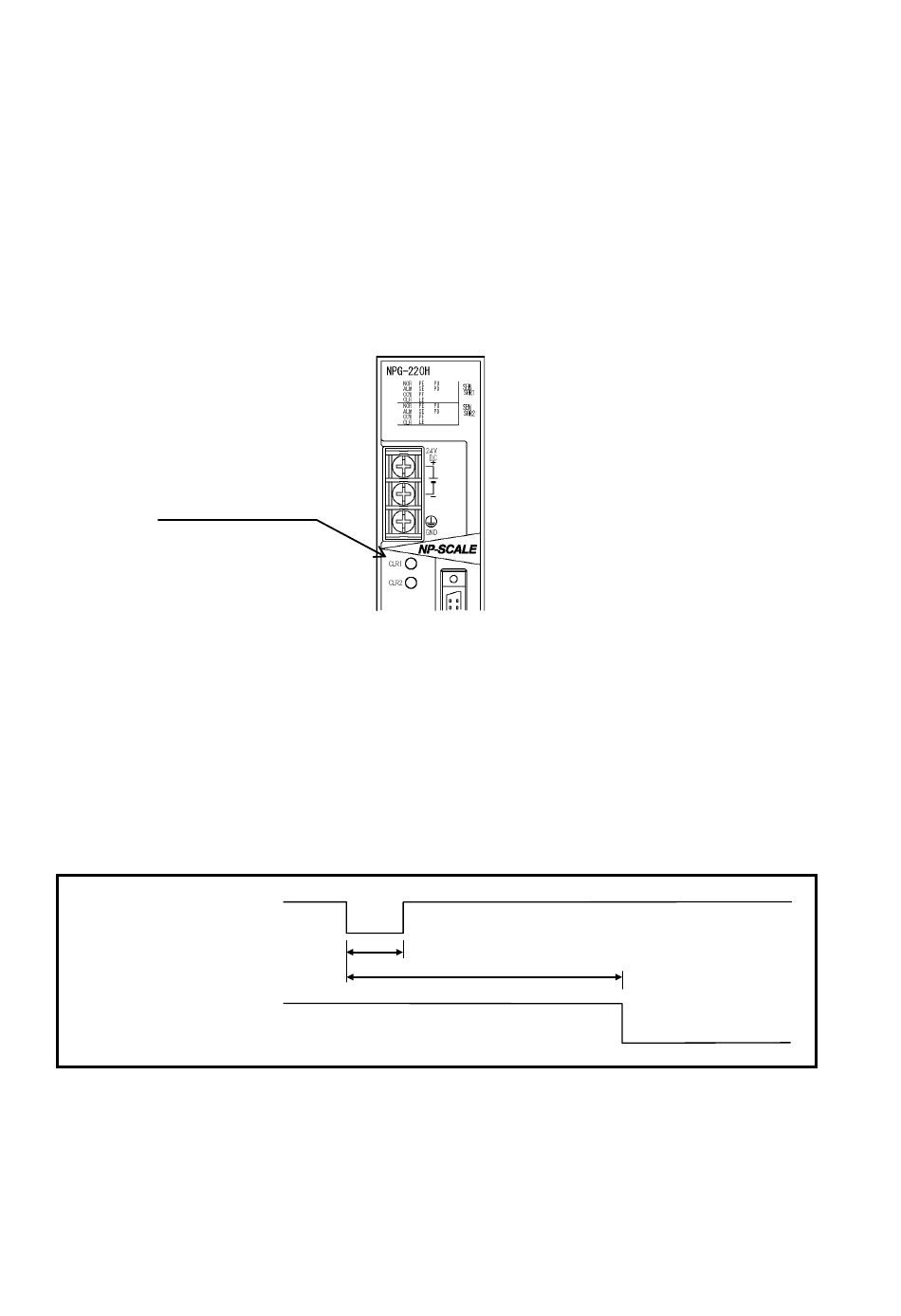

(1) Using the error clear button on the front face
Press the error clear button on the front face.
Error clear button
(2) Input the error clear signal
Input the error clear signal (CLR).
The error clear signal must be ON (LOW level) 500μs or more.
The error clear signal must be turned OFF (HIGH level) after clearing the error.
Error clear
Input (CLR)
Error output
(ALM, PE, SE, PF)
*: Pulses will not output while the error clear signal is input.
H (OFF)
L (ON)
H
L
μ
500 s or more
100ms or less
