NSD ABSOCODER NPG-220HZCLC Specifications & Instruction Manual page 22

Pulse converter, applicable sensor irs-32.8p18, irs-32.8pa18

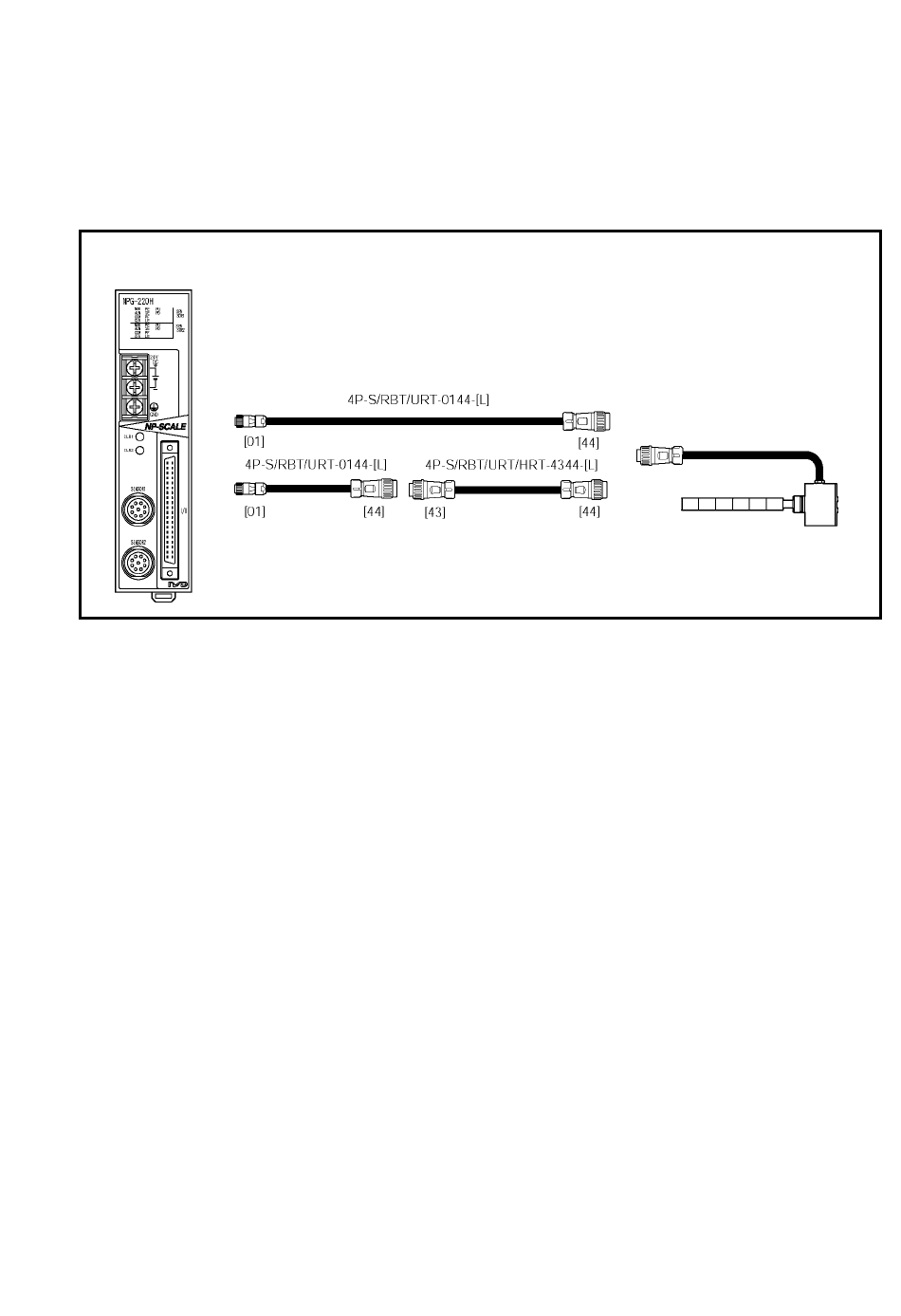

7-1-1. Connection configure example of the sensor cable

Indicates the connection configure example when using the dedicated cable and commercially available cable.

● In the case of using the dedicated cable

Converter

Extension sensor cable

ABSOCODER sensor
