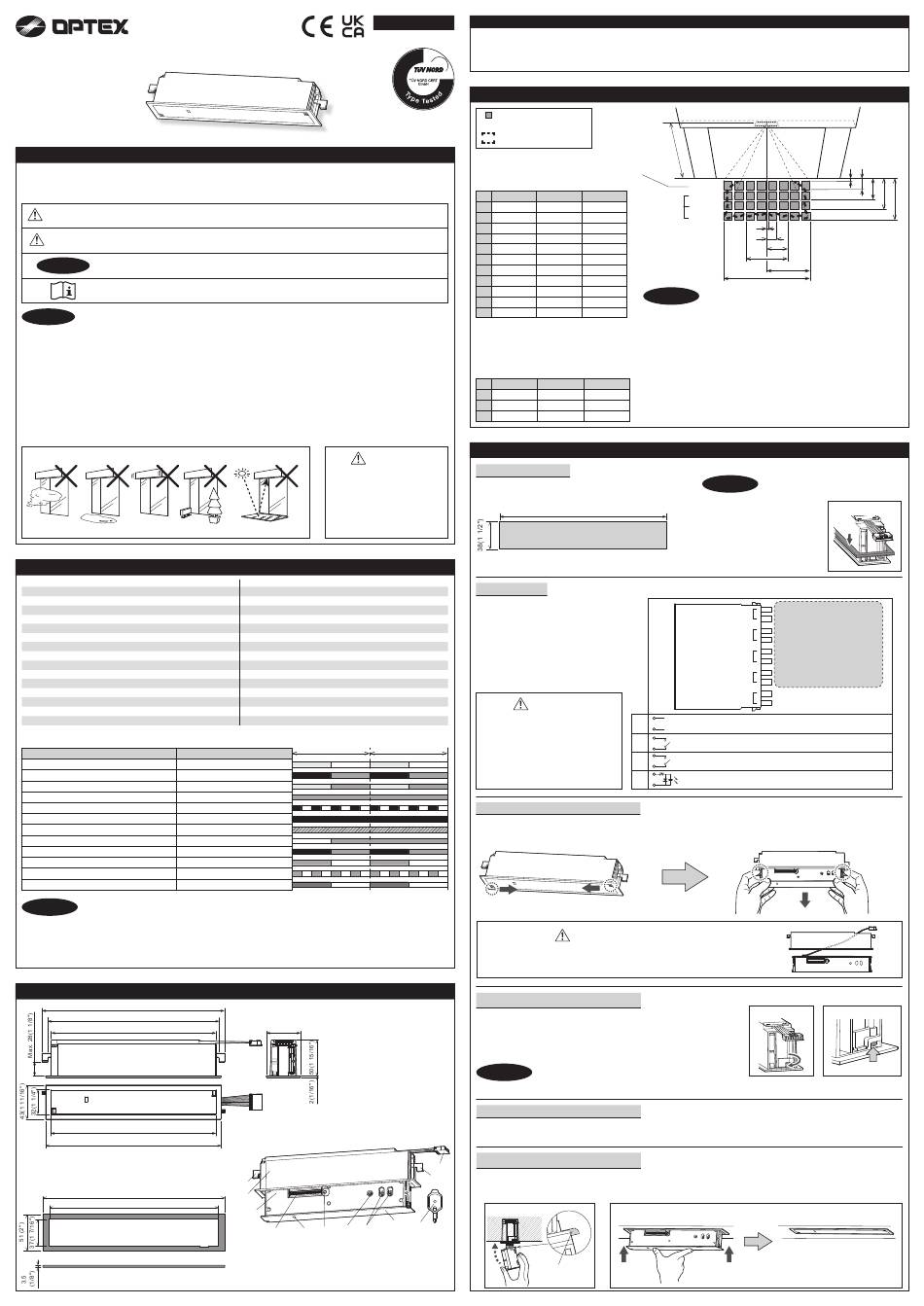

MIRAGE T
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions that accompany this indication and improper handling may result
WARNING
in serious injury or death.
Failure to follow the instructions that accompany this indication and improper handling may result
CAUTION
in injury and/or damage to property.
NOTE
Pay special attention to sections with this symbol.
It is required to check the operation manual if this symbol is shown on the product.
NOTE
1. This product is a non-contact switch intended for header mount or ceiling mount for use on
an automatic sliding door. Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment
connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country
in which the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the
building owner/operator on proper operation of the door and the product.
7. The product settings can only be changed by an installer or service engineer.
When changed, the changed settings and the date shall be registered in the maintenance logbook
accompanying the door.
The following conditions are not suitable for sensor installation.
Fog,
Exhaust
Wet
Vibration
Specifications
Model
: MIRAGE T
Color
: Black
Mounting height
: 2.0 to 3.0 m(6'7" to 9'10")
(2.0 to 2.5 m(6'7" to 8'2") for
EN16005 compliance)
Detection area
: See Detection area
Detection method
: Active infrared reflection
Depth angle adjustment
: -6 to +2°
Power supply (*1)
: 12 to 24 VAC±10 %(50/60 Hz)
12 to 30 VDC±10 %
Power consumption
: < 1.5 W (< 2.5 VA at AC)
Operation indicator
: See Operation indicator
Output hold time
: Approx. 500 ms
Response time
: < 300 ms
Operating temperature
: -20 to +55°C (-4 to 131°F)
Operating humidity
: < 80 % (non-condensing)
Operation indicator
Status
Warm-up
Stand-by (Installation mode)
Stand-by (Service mode)
Stand-by (Operation mode)
1st row detection
2nd row detection
3rd / 4th row detection
Communication Test output
Setting error
Signal saturation
Sensitivity too low (or sensor failure)
Switching LED off/on mode
NOTE
*1 : The sensor has to be connected to a door system which has a SELV circuit.
*2 : Overcurrent protection with less than 2 A.
*3 : Keep pushing the function switch in 10 s and slow blue blinking.
LED during standby can be changed from "Green" to "Off".
*4 : LED will be turned off approx. 500 ms when the sensor Test output signal works well.
Dimensions and part names
254(10")
238(9 3/8")
229(9")
229(9")
244(9 5/8")
Adjustment frame
253 (9 15/16")
235 (9 1/4")
Mounting board thickness : < 28 mm (1 " )
5934770 130-0023-0 APR 2024
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Objects
Reflection
Noise level
: < 70 dBA
Activation output
: Form A relay 50 V 0.3 A Max.
(Resistance load)
Safety output
: Form A relay 50 V 0.3 A Max.
Test input
: Opto coupler
Voltage 5 to 30VDC
Current 6 mA Max.(30 VDC)
IP rate
: IP54
Category
: 2(EN ISO 13849-1:2015)
Performance level
: d(EN ISO 13849-1:2015)
ESPE
: Type 2
Weight
: 210 g(7.4 oz)
Accessories
: 1 Cable 3 m (9'10") (*2)
1 Operation manual
1 Area adjustment tool
1 Adjustment frame
1 Dust proof sticker
1000 ms
Color
Yellow blinking
Red & Green blinking
Yellow & Green blinking
Green / Off (*3)
Red blinking
Red
Orange
Turn off 500 ms (*4)
Red & Green blinking
Slow Green blinking
Fast Green blinking
Slow Blue blinking (*3)
[mm(inch)]
(1)
Connector
(2)
Mount lever
43(1 11/16")
(3)
Bracket
(4)
Main body
(5)
Dipswitches
(6)
Operation indicator
(7)
Function switch
(8)
Depth angle adjustment screw
(9)
Width adjustment screws
(10)
Detection window
(11)
Area adjustment tool
(2)
(3)
(4)
(8)
(9)
(6)
(7)
(5)
Compliant standards and EU declaration of conformity excerpt
ENGLISH
DIN 18650-1:2010 Chapter 5.7.4 ESPE Chapter 5.8.2.4.3 | EN 16005:2012/AC:2015 Chapter 4.6.8 and Annex C | EN 61000-6-2:2005/AC:2005
EN 61000-6-3:2007 +A1:2011/AC:2012 | EMC Directive 2014/30/EU | Machinery Directive 2006/42/EC | EN 61496-3:2001 clause 4. 3. 5 and 5. 4. 7. 3
EN 12978:2003 +A1:2009 | EN ISO 13849-1:2015 | EN ISO 13849-2:2012
Notified Body 0044 : TÜV NORD CERT GmbH Am TÜV 1, 45307 Essen Germany
For technical document, see European subsidiary
Detection area
: Emitting spots
(can be eliminated)
: Detection area
Emitting area
Depth angle : 0°
2.00 (6'7")
2.20 (7'3")
A
B
0.04 (2")
0.05 (2")
C
0.20 (8")
0.22 (9")
D
0.46 (1'6")
0.50 (1'8")
0.84 (2'9")
0.92 (3')
E
F
1.34 (4'5")
1.48 (4'10")
G
0.08 (3")
0.08 (3')
H
0.22 (9")
0.25 (10")
I I
0.49 (1'7")
0.54 (1'9")
J
0.98 (3'3")
1.08 (3'6")
K
1.02 (3'4")
1.12 (3'8")
2.03 (6'8")
2.24 (7'4")
L
Detection area
To comply with EN 16005, make sure that
the detection area is within the values of the
chart below.
2.00 (6'7")
A
D
0.43 (1'5")
J
0.97 (3'2")
L
2.06 (6'9")
Installation
WARNING
1. Mounting
Drill the mounting hole either under the header or ceiling.
2. Wiring
Wire the cable to the door controller.
Plug the connector for the sensor to that for the
cable.
* The following 2 cables are not used.
9. Grey/Pink
10. Red/Blue
** See dipswitch 8(Test input) comment
in "Adjustments 3. Dipswitch settings".
WARNING
Danger of electric shock
Before starting the procedure, make
sure that the power is turned OFF.
1000 ms
When passing the cable through the
hole, do not tear the shield otherwise
it may cause electric shock or
breakdown of the sensor.
3. Pull out the main body
Push the pawls on both ends of the detection window
inward and pull out the main body.
The cable between the main body and the bracket cannot be removed.
Do not pull the cable strongly, otherwise it may be damaged.
4. Fix the bracket
a. Fold the mount levers inside (Figure 1) and insert the bracket into the
mounting hole.
b. Adjust the mounting levers up/down with the screws on both sides (Figure 2)
and fix the bracket to the mounting holes.
NOTE
Be sure to fix firmly, otherwise the sensor may fall off resulting in injures.
5. Turn ON the power
Supply power to the sensor. Adjust the detection area and set the dipswitches.
(See Adjustments)
6. Fix the main body
(1)
a. Tilt the main body (Figure 1) and insert in into the bracket, aligning the pawls with the groove of the bracket.
(2)
b. Push the main body up until it's fixed with a click (Figure 2).
Figure 1
(10)
(11)
A
Motion/Presence
detection
1st row
[m(feet,inch)]
2.50 (8'2")
2nd row
Motion
3rd row
0.05 (2")
detection
4th row
0.25 (10")
0.57 (1'11")
1.05 (3'5")
1.68 (5'6")
0.10 (4")
0.28 (11")
0.61 (2')
1.23 (4')
NOTE
1.27 (4'2")
2.54 (8'4")
The actual detection area may become smaller depending on the ambient
light, the color/material of the object or the floor as well as the entry speed
of the object. The sensor may not be activated when the entering speed of
the object or a person is slower than 50 mm/s or faster than 1500 mm/s.
[m(feet,inch)]
Test conditions required by EN 16005
2.20 (7'3")
2.50 (8'2")
Floor : Grey paper
0.43 (1'5")
0.56 (1'10")
Detection object : EN 16005 CA reference body
1.04 (3'5")
1.12 (3'8")
Sensitivity : Middle
2.23 (7'4")
2.26 (7'5")
Speed of detection object : 50 mm/s
NOTE
1. Be sure that the mounting
230 (9 1/16")
position is within the value of
those in Specifications.
2. When the mounting hole is
Mounting hole size
exposed, use the adjustment
frame. (Figure 1)
[mm(inch)]
Power supply
Activation output
Safety output
Test input **
Not used *
1
12 to 24 VAC ±10 % / 12 to 30 VDC ±10 %
2
3
4
Opto coupler Voltage: 5 to 30 VDC
CAUTION
Risk of breaking
Figure 2
Pawls
A. Maekawa General Manager
OPTEX CO., LTD.
Quality Control Dept.
B
C
D
E
F
G
H
I
J
K
L
Figure 1
1.White
1
2.Brown
3.Green
2
4.Yellow
Polarity free
5.Pink
3
6.Blue
7.Red
4
8.Black
9. Grey/Pink
10. Red/Blue
Form A relay 50 V 0.3 A Max.
Form A relay 50 V 0.3 A Max.
Remove the main body from the bracket while
holding the pawls on both ends of the main body.
Figure 1
Figure 2
