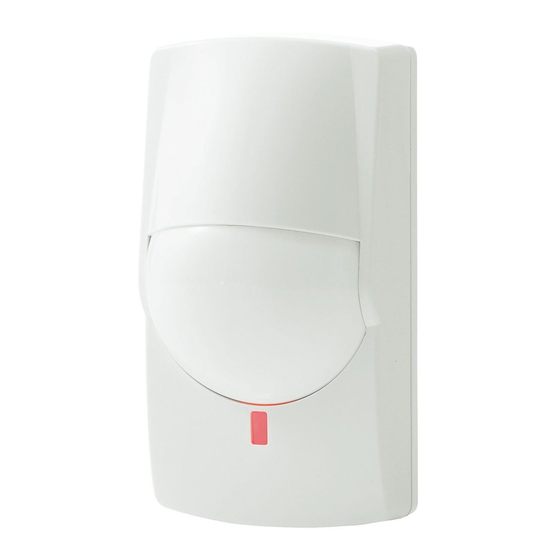

Optex MX-40QZ Installation Instructions

PASSIVE INFRARED and MICROWAVE
COMBINATION DETECTOR
MX-40QZ MX-50QZ MX-50T
FEATURES
-40ft.×40ft.(12m×12m)Wide Angle [MX-40 Series]
-50ft.×50ft.(15m×15m)Wide Angle [MX-50 Series]
-QUAD Zone Logic
-Patented Multi-focus Lens
-Improved Sealed Optics
-Temperature Compensation Logic
-Pet Immunity [MX-40•PI/PT Only]
(See Section 5 for Pet Immunity)
-Model MX-40PI/50T are UL Listed models.
1. INSTALLATION HINTS
Avoid direct sunlight.
Do not install unit near
fluorescent lights.
2.DESCRIPTION,OPERATION and DIMENSIONS
Cover
P.C.B. unit
Lens
LED Indicator
2.44(62)
Fastening screw
Base
P.C.B. hook
Wiring guide
LED ON/OFF
PULSE COUNT
Use the pin switch Use the pin switch
for LED ON/OFF . for Pulse Count
Selection ( 2 or 4 ).
D.L. TERMINAL (MX-40QZ(BE),MX-50QZ(BE) Only)
LED can be enabled or disabled remotely from control panel by D.L. terminal.
Place jumper pin switch in OFF position.
LED Enabled Connect D.L. terminal to common ground(with detector).
LED Disabled No ground to D.L. terminal (open circuit).
EASY INSTALLATION
-Easy Wiring Knockout
-Wiring Guide
-Spare Terminal
-Tamper Terminal
-D.L. Terminal
-Wide Wiring Space
Avoid mounting detector where
movement of Fans or Air
Conditioning can be detected.
Do not mount in unstable location
where vibration or shock may
affect the detector.
Microwave Sensor
Do not touch!
Corner mount
knockout
Mounting knockout
(Pitch=3.29"/83.5mm)
(Pitch=3.58"/91.0mm)
Wiring knockout
P.I.R. Sensor
Do not touch!
Tamper switch
ALARM DL SP TAMPER
Terminals
inch(mm)
EASY WIRING KNOCKOUTS MICROWAVE RANGE
Select RANGE SELECTOR
Press firmly with a screwdriver to
according to the room size.
open.Enlarge the hole according
(SHORT or LONG)
to size of wire.
MX-40 Series
Select RANGE SELECTOR
"SHORT" when it's used with 24ft
(7m)square and Smaller room.
MX-50 Series
Select RANGE SELECTOR
"SHORT" when it's used with 34ft
(10m)square and Smaller room.
With PET IMMUNITY
MX-40PI
[MX-40QZ/50QZ/50T/40PT Only]
[MX-40QZ/50QZ/50T/40PT Only]
[MX-40QZ(BE)/50QZ(BE) Only]
Avoid vapor or high Avoid
humidity that can cause Curtain,Screen,etc.
condensation. blocking detection area.
Do not aim detection area
towards equipment which
continually moves in the
detection area (i.e.curtain,
blinds).
3. DETECTION AREA
WIDE ANGLE
TOP VIEW
SIDE VIEW
1.5m
2.4m
No.59-0967-2 0403-31
With PET IMMUNITY&TAMPER
MX-40PT
FUNCTION
-Selectable Pulse Count(2 or 4)
-LED ON/OFF
-Tamper Switch [MX-40QZ/50QZ/50T/40PT Only]
-Microwave Range Selector(LONG or SHORT)
OPTION
-FA-3 Wall & Ceiling Mount Bracket
(Horizontally ±45°&Vertically 0°to-15°)
Do not install outdoors.
Do not aim towards outside areas where there is
frequent movement.
5 10 15 20 25 30
8m
6
4
2
0
2
4
6
8m
3 6 9
5 10 15 20 25 30
2.2m
3.0m
9
3 6
N219
35 40 45 50 ft
25 ft
20
15
10
5
0
5
10
15
20
25 ft
12 15m
: MX-40 AREA
: MX-50 AREA
35 40
45 50 ft
5 ft
7.5 ft
8 ft
10 ft
12 15m
