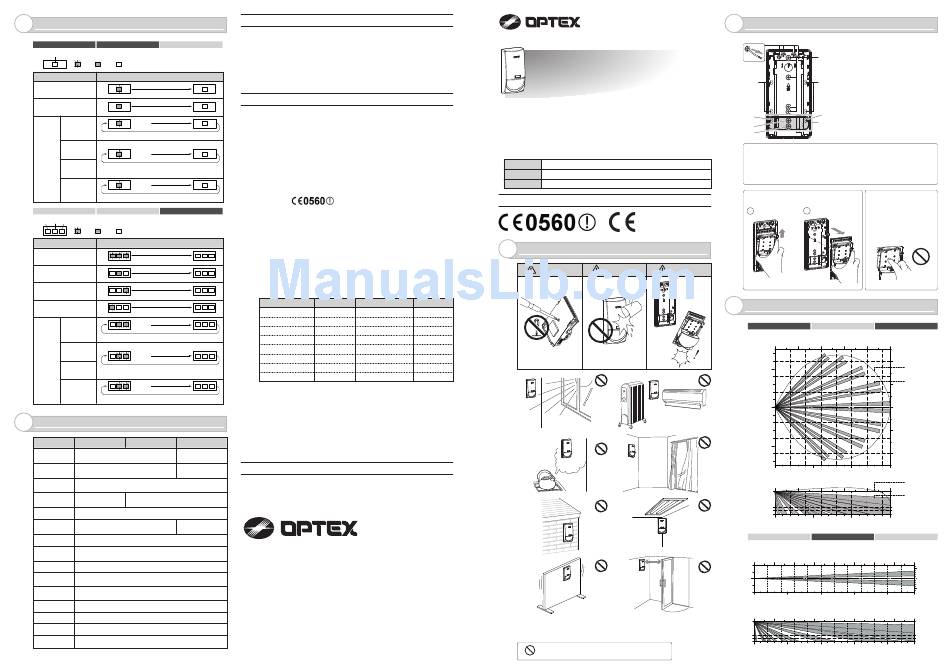

Optex CDX-AM Installation Instructions And Owner's Manual

9
LED INDICATION
CDX-AM CDX-NAM CDX-DAM
Red
Blink Light OFF
DETECTOR CONDITION LED INDICATOR
Warm-up
Blinks for approx. 60 sec.
Alarm
Lights for 2 sec.
x3 times
Anti-masking
detection
Blinks 3 times and goes off for 3 sec, and repeats.
Local
Trouble Self test
x4 times
output
Remote
Blinks 4 times and goes off for 3 sec, and repeats.
Self test
x5 times
Low voltage
detection
Blinks 5 times and goes off for 3 sec, and repeats.
CDX-AM CDX-NAM CDX-DAM
Yellow Red Green
Blink Light OFF
DETECTOR CONDITION LED INDICATOR
Warm-up
Blinks for approx. 60 sec.
Alarm
Lights for 2 sec.
PIR detection
Green lights for 2 sec.
MW detection
Yellow Lights for 2 sec.
x3 times
Anti-masking
detection
Blinks 3 times and goes off for 3 sec, and repeats.
Local
Trouble Self test
x4 times
output
Remote
Blinks 4 times and goes off for 3 sec, and repeats.
Self test
x5 times
Low voltage
detection
Blinks 5 times and goes off for 3 sec, and repeats.
10
SPECIFICATIONS
Model CDX-NAM CDX-AM CDX-DAM
Passive infrared &
Passive infrared
Detection method
Microwave
Detector EN50131-2-4
EN50131-2-2 (Grade 3)
standard
(Grade 3)
Masking
AIR type
detection method
PIR Coverage
24m × 2m (80ft. × 7ft.) 15m × 15m (50ft. × 50ft.)
[Detection zones] narrow [20 zones] 85° wide [82 zones]
Power input 9 - 18VDC
Current 17mA (normal) / 20mA (max.) 19mA (normal) / 26mA (max.)
consumption
at 12V DC at 12V DC
Alarm output
N.C. 28V DC 0.2A max.
N.C. Opens when cover is removed or the
Tamper output
wall tamper switch operates. 28V DC 0.1A max.
Trouble output N.C. 28V DC 0.2A max.
Operating
-10°C - +50°C (14°F - 122°F)
temperature
Environmental
95% max.
humidity
No alarm 10V/m
RF interference
Mounting height
1.8 - 2.4m (6ft. - 8ft.)
Weight 180g (6.3oz)
Dimensions
140×70×52.3mm (5.51×2.76×2.06 inches)
(H×W×D)
* Specifications and design are subject to change without prior notice.
OPTION
FA-1W: Wall Mount Bracket
Adjustable ±45° (Horizontally), 0-20° (Vertically downwards)
FA-3: Compact Wall & Ceiling Bracket
Adjustable ±45°(Horizontally), 0-10° (Vertically downwards)
PEU: Plug-in EOL resistors unit
Please ask your supplier for more information about the
available type.
COMPLIANCE
• CDX series complies with following Directives / Standards.
Directive: EMC Directive 2004/108/EC
Applied Standards: EN 50130-4: 2011
EN 55022: 2006
• EN50131-1 Grades and Environmental Class:
Security Grade 3 and Environmental Class II.
Applied Standards: EN 50131-2-2 (CDX-NAM / CDX-AM)
EN 50131-2-4 (CDX-DAM)
Tested and certified by Telefication.
• CDX DAM also complies with following Directives / Standards
marked Class II,
Directive: R&TTE Directive 1999/5/EC
Applied Standards: EN 300 440-1: 2009
EN 300 440-2: 2009
EN 301 489-1: 2008
EN 301 489-3: 2002
EN 50371: 2002
EN 60950-1: 2006 +A11: 2009
The following table indicates the areas of intended use of the equipment
and any known restrictions. For countries not included in this list,
please consult the responsible Spectrum Management Agency.
Country of intended use Restrictions Country of intended use Restrictions
Austria 9.900GHz Luxembourg 10.525GHz
Belgium 10.525GHz The Netherlands 10.525GHz
Denmark 10.525GHz Spain 10.525GHz
Finland 9.900GHz Sweden 10.525GHz
France 10.587GHz United Kingdom 10.587GHz
Greece 10.525GHz Other non-EU: Iceland 10.525GHz
Ireland 10.587GHz Norway 10.525GHz
Italy 10.525GHz Switzerland 10,525GHz
PD6662: 2010
FCC ID: DC9 OPMW IC: 4012A-OPMW
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE
CDX series is only a part of a complete system, therefore we
cannot accept complete responsibility for any damages or other
consequences resulting from an intrusion.
OPTEX CO., LTD. (JAPAN)
(ISO9001 Certified) (ISO14001 Certified)
5-8-12 Ogoto Otsu Shiga 520-0101 JAPAN
TEL: +81-77-579-8670 FAX: +81-77-579-8190
URL: http://www.optex.co.jp/e/
OPTEX INCORPORATED (USA) OPTEX SECURITY Sp. zo.o. (POLAND)
TEL: +1-909-993-5770 TEL: +48-22-598-05-55
Tech: (800)966-7839 URL: http://www.optex.com.pl/
URL: http://www.optexamerica.com/
OPTEX KOREA CO., LTD. (KOREA)
OPTEX (EUROPE) LTD. (UK)
TEL: +82-2-719-5971
TEL: +44-1628-631000
URL: http://www.optexkorea.com/
URL: http://www.optex-europe.com/
OPTEX (DONGGUAN) CO., LTD.
OPTEX SECURITY SAS (FRANCE)
SHANGHAI OFFICE (CHINA)
TEL: +33-437-55-50-50
TEL:+86-21-34600673
URL: http://www.optex-security.com/
URL:http://www.optexchina.com/

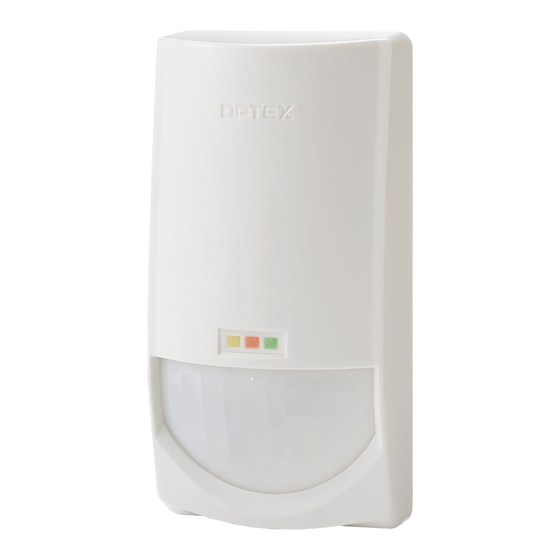

INSTALLATION INSTRUCTIONS
Grade 3 INDOOR DETECTOR Grade 3 INDOOR DETECTOR
CDX series
CDX series
• 15m (50ft.) Wide Angle with Down Zone (CDX-AM/CDX-DAM)
• 24m (80ft.) Long Range (CDX-NAM)
• Respected Double Conductive Shielding (CDX-AM/CDX-NAM)
- Extremely High Light and RFI Immunity
• Extreme Tough Microwave Module (CDX-DAM)
• PLUG-IN EOL Resistors (PEU) (OPTION)
• Advanced IR Beam Anti-Masking Technology
CDX-AM PIR with active IR anti-masking (Grade 3)
CDX-NAM CDX-AM with long and narrow lens (Grade 3)
CDX-DAM PIR & Microwave with active IR anti-masking (Grade 3)
COMPLIANCE
PD6662: 2010
1
INSTALLATION HINTS
Warning Warning Caution
1m
* Do not obscure partially or
completely the detector's
field of view.
This symbol indicates prohibition.
No.59-1900-4 2
KNOCKOUTS
Wiring knockout
When using a wall tamper >>
Use the knockout for a wall
Mounting
tamper. If the main unit is taken
knockout
from the wall, the gray section
will break away and stay on the
Corner Corner wall and the tamper switch will
mount mount
operate.
knockout knockout
When installing on a plaster
board wall or other soft
material, cut out the gray area
(3)
(4)
Wall from the back plate.
(1)
tamper
knockout
(2)
Note >>
• Use both knockouts (1) and (2) with included screws.
(Self tapping 3 X 16 mm: 3 pcs.)
• For corner installation, use both knockouts (3) and (4) with
included screws. (Self tapping 3 X 16 mm: 3 pcs.)
How to release the unit base >>
1 2
Put up the base Remove
3
DETECTION AREA
CDX-AM CDX-NAM
TOP VIEW
0 10 20 30
(m)
7
5
0
5
7
0 5 10
SIDE VIEW
0 10 20 30
(m)
0
1.8
2.4
0 5 10
CDX-AM CDX-NAM
TOP VIEW
0 10 20 30 40 5 0
(m)
2
1
0
1
2
0 5 10 15
SIDE VIEW
0 10 20 30 40 5 0
(m)
0
1.8
2.4
0 5 10 15
Caution >>
Do not touch the
microwave unit to avoid
breakdown caused by
static electricity.
CDX-DAM
40 50(ft)
(ft)
20
MW
(CDX-DAM only)
PIR
10
0
10
20
15(m)
MW
40 50(ft)
(CDX-DAM only)
0 (ft)
PIR
6
8
15(m)
CDX-DAM
60 70 8 ( 0 ) t f
5(ft)
0
5
20 24(m)
60 70 8 ( 0 ) t f
0 (ft)
6
8
20 24(m)
